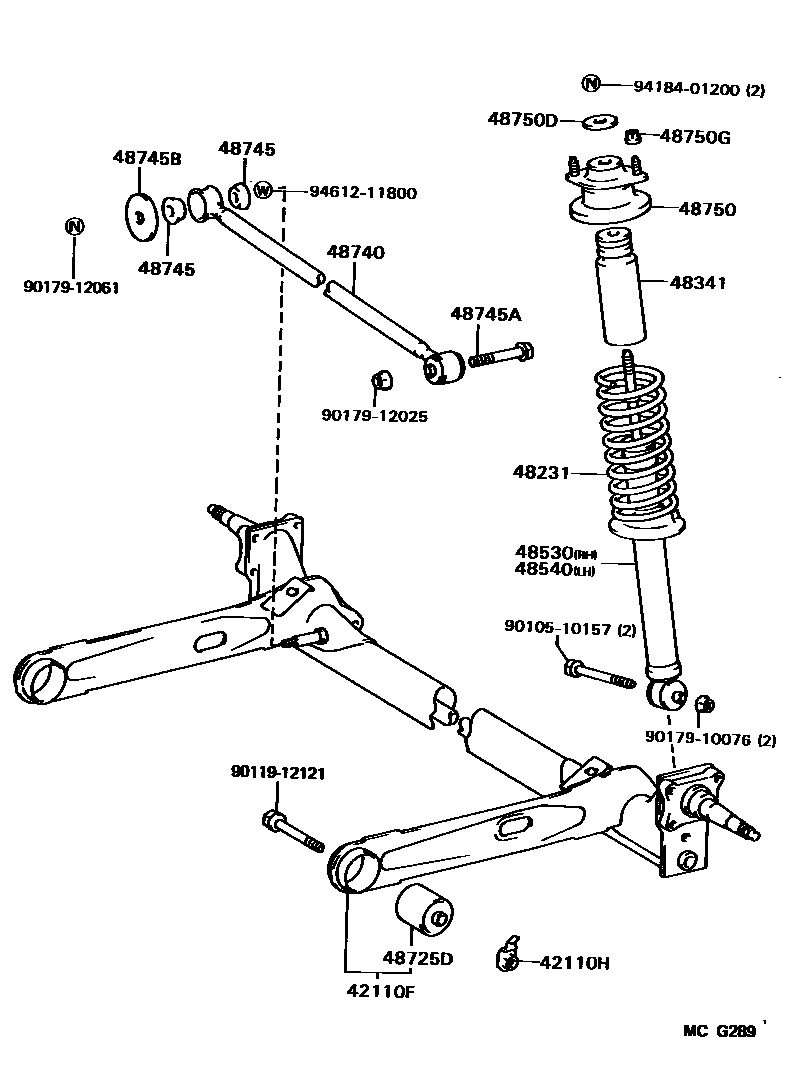

Toyota TERCEL — REAR SPRING & SHOCK ABSORBER

42110FBEAM ASSY, REAR AXLE

main42110-16050i198808-198905

main42110-16051i198905-199009

42110HNUT (FOR REAR AXLE BEAM)

main90179-12041×2i198808-199009

48231SPRING, COIL, REAR

main48231-16350×2i198808-199009

48341BUMPER, REAR SPRING

main48341-16040×2i198808-199009

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-16130i198808-199009

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-16130i198808-199009

48725DBUSH, REAR SUSPENSION ARM, NO.3

main48725-16110×2i198808-199009

48740ROD ASSY, REAR LATERAL CONTROL

main48740-16010i198808-199009

48745BUSH, LATERAL CONTROL ROD

main90385-18010×2i198808-199009

48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)

main90105-12070i198808-199009

48745BWASHER, LATERAL CONTROL ROD CUSHION

main90201-12047i198808-199009

48750SUPPORT ASSY, REAR SUSPENSION

main48750-16040×2i198808-199009

48750DRETAINER(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)

main90948-02100×2i198808-199009

48750GNUT(FOR REAR SUSPENSION SUPPORT)

main90179-08111×4i198808-199009

9010510157

main90105-10157

9011912121

main90119-12121

9017910076

main90179-10076

9017912025

main90179-12025

9017912061

main90179-12061

9418401200

main94184-01200

9461211800

main94612-11800

21 parts on this diagram · 1 diagram in section

REAR SPRING & SHOCK ABSORBER for Toyota TERCEL

This section contains 21 genuine Toyota parts for the REAR SPRING & SHOCK ABSORBER system of the Toyota TERCEL. Key components include: BEAM ASSY, REAR AXLE, NUT (FOR REAR AXLE BEAM), SPRING, COIL, REAR, BUMPER, REAR SPRING, ABSORBER ASSY, SHOCK, REAR RH.
