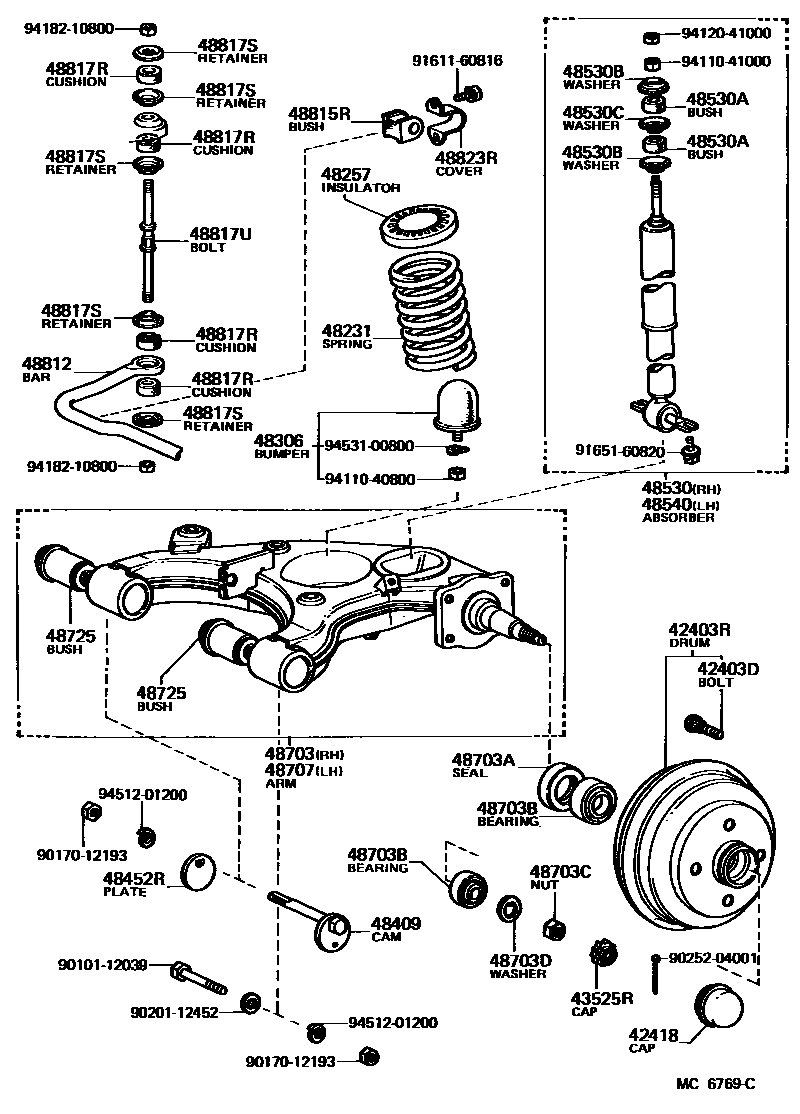

Toyota TERCEL — REAR SPRING & SHOCK ABSORBER
42403DBOLT, HUB (FOR REAR DRUM & WHEEL SETTING)
42403RDRUM SUB-ASSY, BRAKE
42418CAP, REAR HUB GREASE
43525RCAP, REAR WHEEL ADJUSTING LOCK
48231SPRING, COIL, REAR
48257INSULATOR, REAR COIL SPRING
48306BUMPER SUB-ASSY, REAR SPRING
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2
48530ABSORBER ASSY, SHOCK, REAR RH
48530ABUSH(FOR REAR SHOCK ABSORBER)
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2
48540ABSORBER ASSY, SHOCK, REAR LH
48703ARM SUB-ASSY, REAR SUSPENSION, RH
48703ASEAL(FOR REAR SUSPENSION ARM)
48703BBEARING(FOR REAR SUSPENSION ARM)
INNER
OUTER
48703CNUT(FOR REAR SUSPENSION ARM)
48703DWASHER(FOR REAR SUSPENSION ARM)
48707ARM SUB-ASSY, REAR SUSPENSION, LH
48725BUSH, LOWER CONTROL ARM
INNER
OUTER
48812BAR, STABILIZER, REAR
48815RBUSH, STABILIZER(FOR REAR)
48817RCUSHION, STABILIZER(FOR REAR)
48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
H=3.5,ID=8.5
H=5,ID=13
48817UBOLT(FOR REAR STABILIZER)
48823RCOVER, STABILIZER LINK(FOR REAR)
9010112039
main90101-12039
9017012193
main90170-12193
9020112452
main90201-12452
9025204001
main90252-04001
9161160816
main91611-60816
9165160820
main91651-60820
9411040800
main94110-40800
9411041000
main94110-41000
9412041000
main94120-41000
9418210800
main94182-10800
9451201200
main94512-01200
9453100800
main94531-00800
39 parts on this diagram · 1 diagram in section
REAR SPRING & SHOCK ABSORBER for Toyota TERCEL
This section contains 39 genuine Toyota parts for the REAR SPRING & SHOCK ABSORBER system of the Toyota TERCEL. Key components include: BOLT, HUB (FOR REAR DRUM & WHEEL SETTING), DRUM SUB-ASSY, BRAKE, CAP, REAR HUB GREASE, CAP, REAR WHEEL ADJUSTING LOCK, SPRING, COIL, REAR.
