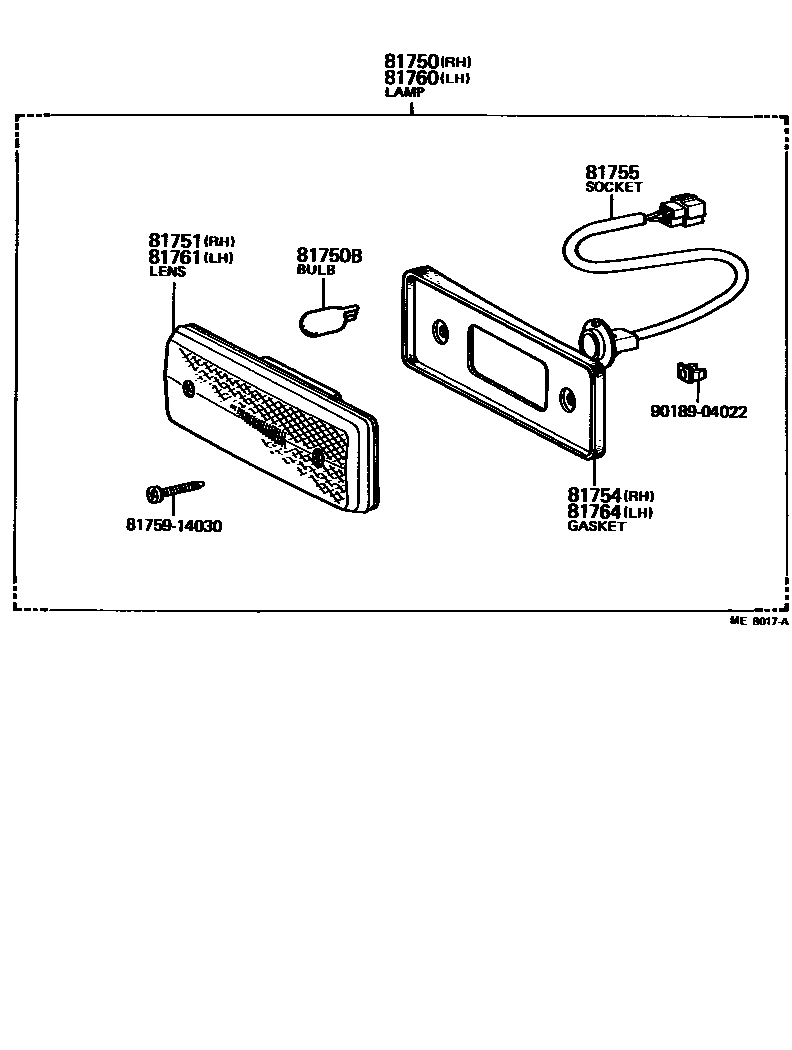

Toyota TERCEL — REAR SIDE MARKER LAMP

81750LAMP ASSY, REAR SIDE MARKER, RH

main81750-29135i197908-198207

81750BBULB, REAR SIDE MARKER LAMP

main90981-11020×2i197908-198207

12V 3.8W,12V 3.8W

81751LENS, REAR SIDE MARKER LAMP, RH

main81751-14030i197908-198207

81754GASKET, REAR SIDE MARKER LAMP BODY, RH

main81752-14030i197908-198207

81755SOCKET & WIRE SUB-ASSY, REAR SIDE MARKER LAMP

main81755-20060×2i197908-198207

81760LAMP ASSY, REAR SIDE MARKER, LH

main81750-29135i197908-198207

81761LENS, REAR SIDE MARKER LAMP, LH

main81751-14030i197908-198207

81764GASKET, REAR SIDE MARKER LAMP BODY, LH

main81752-14030i197908-198207

8175914030RETAINER, REAR SIDE MARKER LAMP, RH

main81759-14030

9018904022

main90189-04022

10 parts on this diagram · 1 diagram in section

REAR SIDE MARKER LAMP for Toyota TERCEL

This section contains 10 genuine Toyota parts for the REAR SIDE MARKER LAMP system of the Toyota TERCEL. Key components include: LAMP ASSY, REAR SIDE MARKER, RH, BULB, REAR SIDE MARKER LAMP, LENS, REAR SIDE MARKER LAMP, RH, GASKET, REAR SIDE MARKER LAMP BODY, RH, SOCKET & WIRE SUB-ASSY, REAR SIDE MARKER LAMP.
