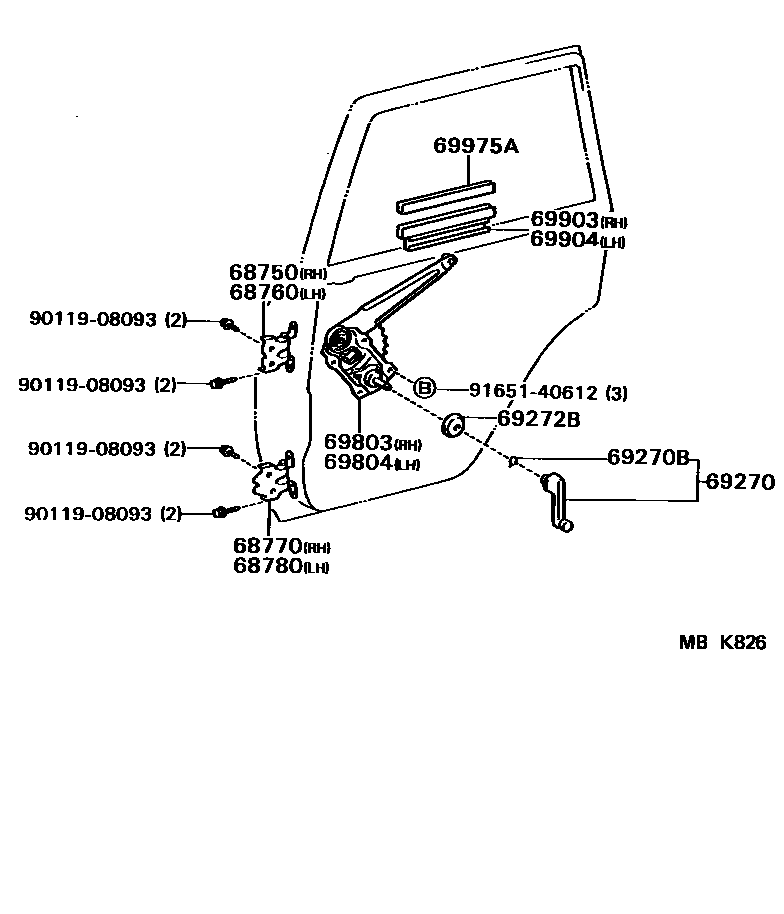

Toyota TERCEL — REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-16020i198608-198808

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-16020i198608-198808

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-12030i198608-198808

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-12020i198608-198808

69270HANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-10040-11×2i198608-198808

BLACK,NEW BLACK,TRIM2#

main69260-10040-50×2i198608-198808

BLUE,BLUE,TRIM8#

main69260-10040-55×2i198608-198808

BEIGE,DARK BEIGE,TRIM4#

69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2i198608-198808

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-16010×2i198608-198808

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69830-16030i198608-198808

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69840-16030i198608-198808

69903CHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-16030i198608-198808

69904CHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69905-16030i198608-198808

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-16010×2i198608-198808

9011908093

main90119-08093

9165140612

main91651-40612

14 parts on this diagram · 1 diagram in section

REAR DOOR WINDOW REGULATOR & HINGE for Toyota TERCEL

This section contains 14 genuine Toyota parts for the REAR DOOR WINDOW REGULATOR & HINGE system of the Toyota TERCEL. Key components include: HINGE ASSY, REAR DOOR, UPPER RH, HINGE ASSY, REAR DOOR, UPPER LH, HINGE ASSY, REAR DOOR, LOWER RH, HINGE ASSY, REAR DOOR, LOWER LH, HANDLE ASSY, REAR DOOR WINDOW REGULATOR.
