Toyota TERCEL — REAR DOOR WINDOW REGULATOR & HINGE
68750HINGE ASSY, REAR DOOR, UPPER RH
68760HINGE ASSY, REAR DOOR, UPPER LH
68770HINGE ASSY, REAR DOOR, LOWER RH
68780HINGE ASSY, REAR DOOR, LOWER LH
69266BESCUTCHEON, DOOR REGULATOR HANDLE(FOR REAR DOOR)
69270HANDLE ASSY, REAR DOOR WINDOW REGULATOR
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69903CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69904CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69975AFILLER, REAR DOOR GLASS CHANNEL
9011908093
main90119-08093
9165140612
main91651-40612

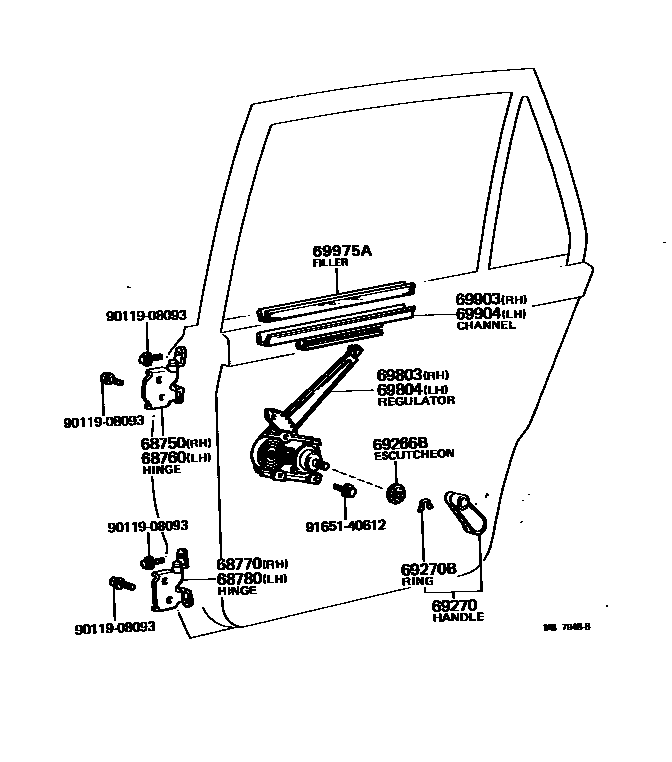

14 parts on this diagram · 1 diagram in section
REAR DOOR WINDOW REGULATOR & HINGE for Toyota TERCEL
This section contains 14 genuine Toyota parts for the REAR DOOR WINDOW REGULATOR & HINGE system of the Toyota TERCEL. Key components include: HINGE ASSY, REAR DOOR, UPPER RH, HINGE ASSY, REAR DOOR, UPPER LH, HINGE ASSY, REAR DOOR, LOWER RH, HINGE ASSY, REAR DOOR, LOWER LH, ESCUTCHEON, DOOR REGULATOR HANDLE(FOR REAR DOOR).
