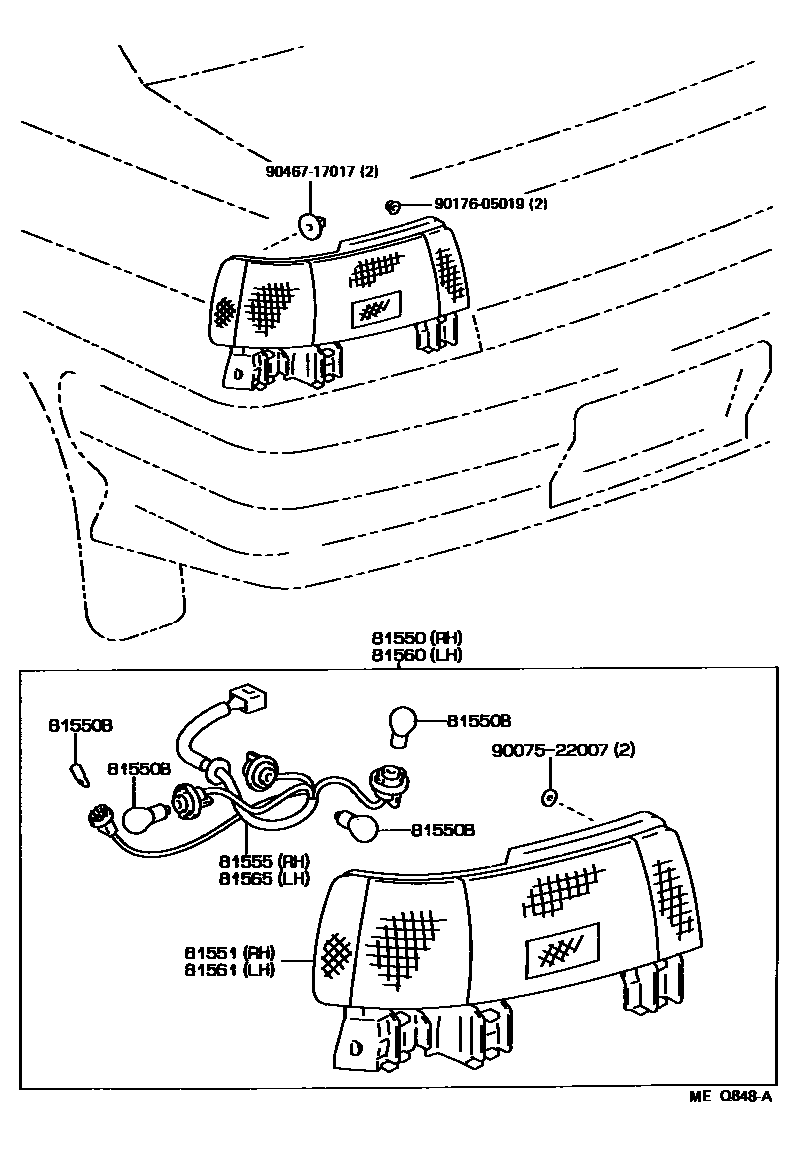

Toyota TERCEL — REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-16420i199009-199409

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-12010×2i199009-199409

12V 5W

main99132-11270×4i199009-199409

12V 27W

main99132-21270×2i199009-199409

12V 27/8W

81551LENS, REAR COMBINATION LAMP, RH

main81551-16420i199009-199409

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-16420i199009-199402

main81555-16421i199402-199409

81560LAMP ASSY, REAR COMBINATION, LH

main81560-16460i199009-199409

81561LENS, REAR COMBINATION LAMP, LH

main81561-16460i199009-199409

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-16420i199009-199402

main81555-16421i199402-199409

9007522007

main90075-22007

9017605019

main90176-05019

9046717017

main90467-17017

10 parts on this diagram · 1 diagram in section

REAR COMBINATION LAMP for Toyota TERCEL

This section contains 10 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota TERCEL. Key components include: LAMP ASSY, REAR COMBINATION, RH, BULB(FOR REAR COMBINATION LAMP), LENS, REAR COMBINATION LAMP, RH, SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH, LAMP ASSY, REAR COMBINATION, LH.
