Toyota TERCEL — REAR COMBINATION LAMP

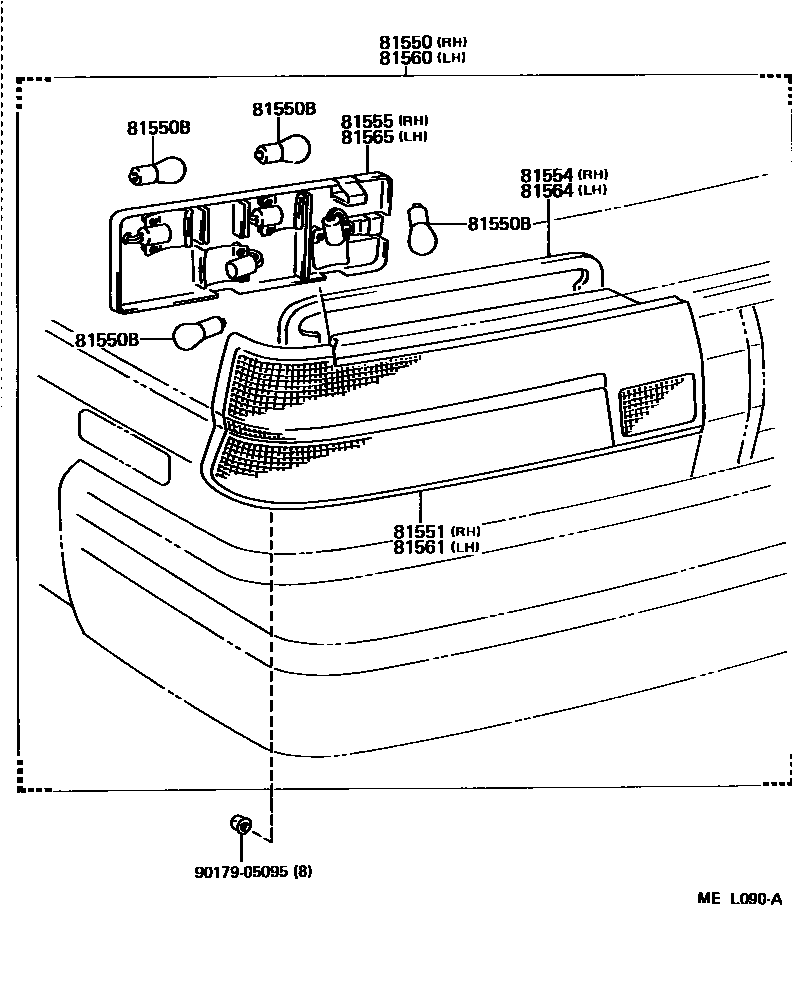

Parts diagram
81550LAMP ASSY, REAR COMBINATION, RH
main81550-16350i198808-199009
main81550-16370i198808-199009
main81550-16380i198808-199001
main81550-16381i199001-199009
81550BBULB(FOR REAR COMBINATION LAMP)
main90981-12012×2i198808-199009
12V 7.5W
main99132-11270×4i198808-199009
12V 27W
main99132-21270×4i198808-199009
12V 27/8W
81551LENS, REAR COMBINATION LAMP, RH
main81551-16350i198808-199009
main81551-16370i198808-199009
main81551-16380i198808-199009
81554GASKET, REAR COMBINATION LAMP BODY, RH
main81554-16381i199001-199009
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
main81555-16370i198808-199009
main81555-16380i198808-199009
81560LAMP ASSY, REAR COMBINATION, LH
main81560-16370i198808-199009
main81560-16390i198808-199009
main81560-16400i198808-199001
W(RR ROOM LAMP)
main81560-16401i199001-199009
W(RR ROOM LAMP)
main81560-16440i198808-199001
main81560-16441i199001-199009
81561LENS, REAR COMBINATION LAMP, LH
main81561-16370i198808-199009
main81561-16390i198808-199009
main81561-16400i198808-199009
81564GASKET, REAR COMBINATION LAMP BODY, LH
main81554-16381i199001-199009
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
main81555-16370i198808-199009
main81565-16400i198808-199009
W(RR ROOM LAMP)
main81565-16440i198808-199009
9017905095
main90179-05095

10 parts on this diagram · 2 diagrams in section

REAR COMBINATION LAMP for Toyota TERCEL

This section contains 16 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota TERCEL. Key components include: LAMP ASSY, REAR COMBINATION, RH, BULB(FOR REAR COMBINATION LAMP), LENS, REAR COMBINATION LAMP, RH, GASKET, REAR COMBINATION LAMP BODY, RH, SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH.
