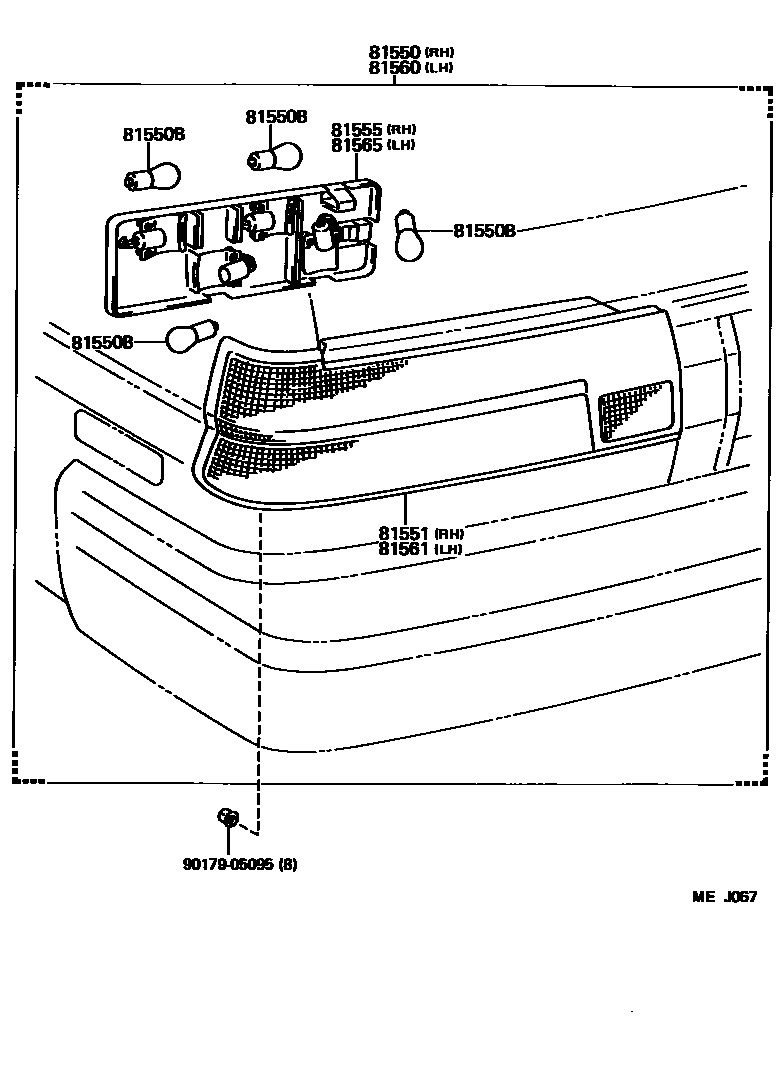

Toyota TERCEL — REAR COMBINATION LAMP
81550LAMP ASSY, REAR COMBINATION, RH
81550BBULB(FOR REAR COMBINATION LAMP)
12V 7.5W,12V 7.5W(LICENSE)
12V 27W,12V 27W(BACK & TURN)
12V 27/8W,12V 27/8W(STOP & TAIL)
81551LENS, REAR COMBINATION LAMP, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81560LAMP ASSY, REAR COMBINATION, LH
81561LENS, REAR COMBINATION LAMP, LH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
9017905095
main90179-05095
8 parts on this diagram · 2 diagrams in section
REAR COMBINATION LAMP for Toyota TERCEL
This section contains 14 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota TERCEL. Key components include: LAMP ASSY, REAR COMBINATION, RH, BULB(FOR REAR COMBINATION LAMP), LENS, REAR COMBINATION LAMP, RH, SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH, LAMP ASSY, REAR COMBINATION, LH.
