Toyota TERCEL — QUARTER WINDOW

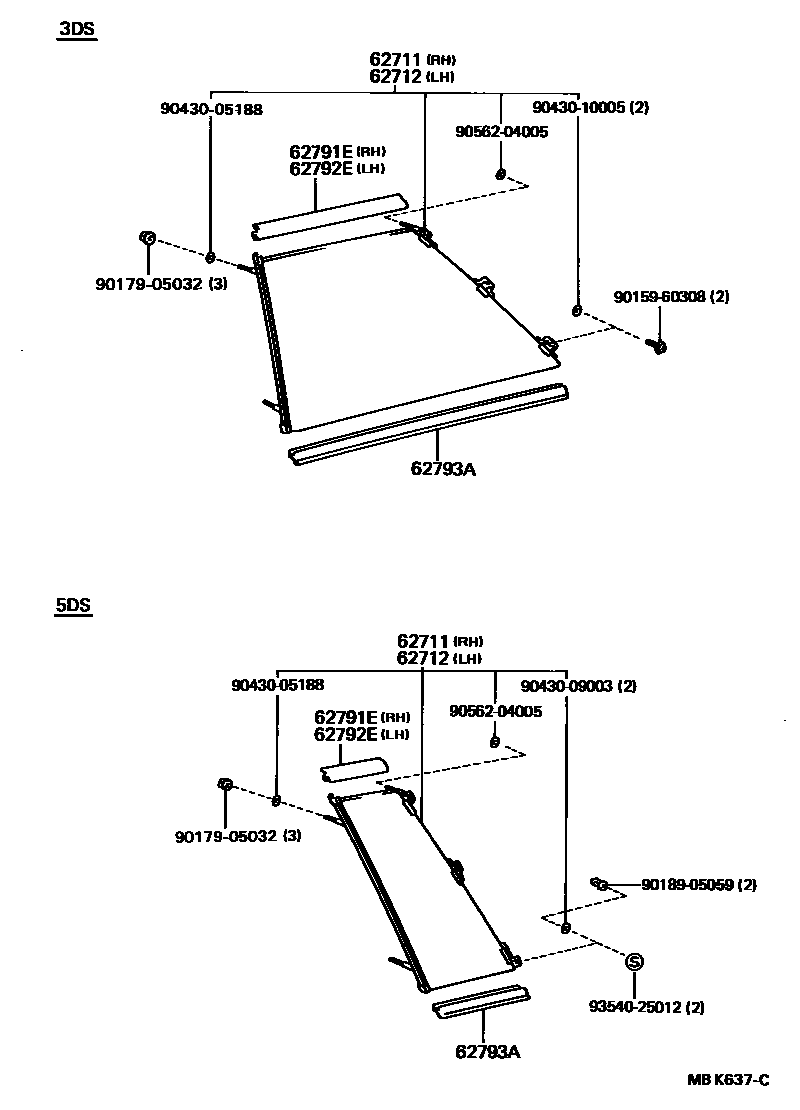

Parts diagram
62711GLASS, QUARTER WINDOW, RH
main62710-16120i198608-198808
*TEM,T=3.5,*TEM,T=3.5
main62710-16130i198608-198808
*TT,T=3.5,*TT,T=3.5
main62710-16140i198611-198708
DECONTENT PACKAGE
main62710-16141i198708-198808
*TEM,T=3.5
main62710-16150i198608-198808
*TEM,T=3.5,*TEM,T=3.5
main62710-16160i198608-198808
*TT,T=3.5,*TT,T=3.5
main62710-16180i198701-198808
*TEM,T=3.5,*TEM,T=3.5
main62710-16190i198701-198808
*TT,T=3.5,*TT,T=3.5
62712GLASS, QUARTER WINDOW, LH
main62720-16120i198608-198808
*TEM,T=3.5,*TEM,T=3.5
main62720-16130i198608-198808
*TT,T=3.5,*TT,T=3.5
main62720-16140i198611-198708
DECONTENT PACKAGE
main62720-16141i198708-198808
*TEM,T=3.5
main62720-16150i198608-198808
*TEM,T=3.5,*TEM,T=3.5
main62720-16160i198608-198808
*TT,T=3.5,*TT,T=3.5
main62720-16180i198701-198808
*TEM,T=3.5,*TEM,T=3.5
main62720-16190i198701-198808
*TT,T=3.5,*TT,T=3.5
62791EMOULDING, QUARTER WINDOW, UPPER RH
main62791-16010i198608-198808
main62791-16020i198608-198808
main62791-16030i198701-198808
62792EMOULDING, QUARTER WINDOW, UPPER LH
main62791-16010i198608-198808
main62792-16010i198608-198808
main62792-16020i198701-198808
62793AMOULDING, QUARTER WINDOW, LOWER
main62793-16010×2i198608-198808
main62793-16020×2i198608-198808
main62793-16050×2i198701-198808
main62793-16060×2i198701-198808
W/BELT MOULDING
9015960308
main90159-60308
9017905032
main90179-05032
9018905059
main90189-05059
9043005188
main90430-05188
9043009003
main90430-09003
9043010005
main90430-10005
9056204005
main90562-04005
9354025012
main93540-25012

13 parts on this diagram · 2 diagrams in section

QUARTER WINDOW for Toyota TERCEL

This section contains 17 genuine Toyota parts for the QUARTER WINDOW system of the Toyota TERCEL. Key components include: GLASS, QUARTER WINDOW, RH, GLASS, QUARTER WINDOW, LH, RETAINER, QUARTER WINDOW GLASS, REAR, SPACER, QUARTER WINDOW GLASS, SPACER, QUARTER WINDOW GLASS, NO.2.
