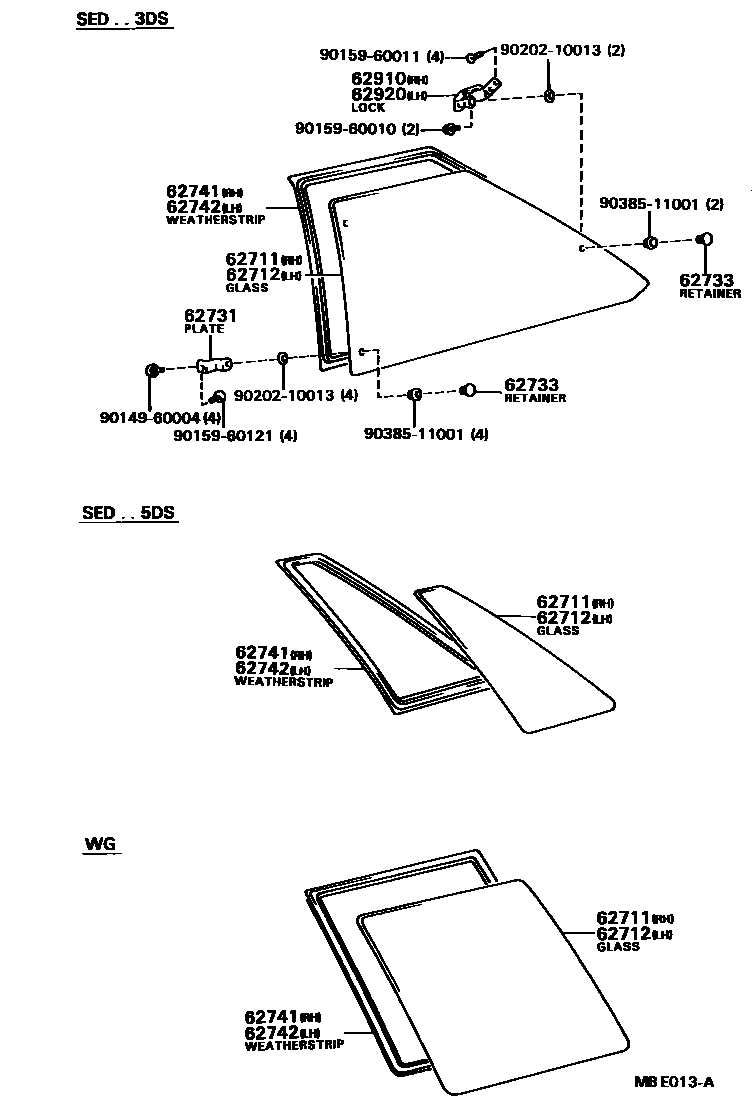

Toyota TERCEL — QUARTER WINDOW

62711GLASS, QUARTER WINDOW, RH

main62711-16110i198208-198608

*TT,T=4.0

main62711-16120i198208-198608

*TEM,T=4.0,SWING OUT TYPE

main62711-16140i198308-198608

*TEM,T=3.5,FIXED TYPE

main62711-16150i198208-198608

*TT,T=3.5

main62711-16160i198208-198608

*TEM,T=3.5

main62711-16170i198208-198801

*TT,T=3.5,*TT,T=3.5

62712GLASS, QUARTER WINDOW, LH

main62712-16110i198208-198608

*TT,T=4.0

main62712-16120i198208-198608

*TEM,T=4.0,SWING OUT TYPE

main62712-16140i198208-198308

*TEM,T=3.5,FIXED TYPE

main62712-16150i198208-198608

*TT,T=3.5

main62712-16160i198208-198608

*TEM,T=3.5

main62712-16170i198208-198801

*TT,T=3.5,*TT,T=3.5

62731PLATE, QUARTER OR SIDE WINDOW HINGE

main62731-16020×4i198208-198608

62733RETAINER, QUARTER OR SIDE WINDOW HINGE

main62735-14010×6i198208-198608

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62741-16050i198208-198608

SWING OUT TYPE

main62741-16060i198308-198608

FIXED TYPE

main62741-16070i198208-198608

main62741-16080i198208-198801

62742WEATHERSTRIP, QUARTER WINDOW, LH

main62742-16050i198208-198608

SWING OUT TYPE

main62742-16060i198208-198308

FIXED TYPE

main62742-16070i198208-198608

main62742-16080i198208-198801

62910LOCK ASSY, QUARTER OR SIDE WINDOW, RH

main62910-16020i198208-198608

62920LOCK ASSY, QUARTER WINDOW, LH

main62920-16020i198208-198608

9014960004

main90149-60004

9015960010

main90159-60010

9015960011

main90159-60011

9015960121

main90159-60121

9020210013

main90202-10013

9038511001

main90385-11001

14 parts on this diagram · 1 diagram in section

QUARTER WINDOW for Toyota TERCEL

This section contains 14 genuine Toyota parts for the QUARTER WINDOW system of the Toyota TERCEL. Key components include: GLASS, QUARTER WINDOW, RH, GLASS, QUARTER WINDOW, LH, PLATE, QUARTER OR SIDE WINDOW HINGE, RETAINER, QUARTER OR SIDE WINDOW HINGE, WEATHERSTRIP, QUARTER WINDOW, RH.
