Toyota TERCEL — PARTIAL ENGINE ASSEMBLY

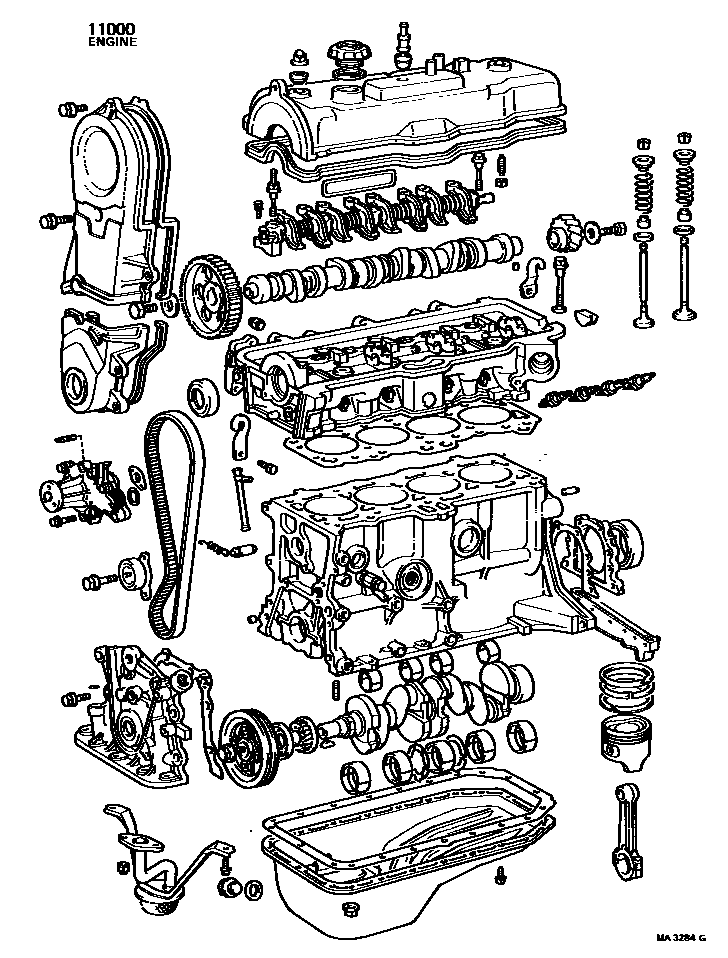

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-15030i197908-198008
sub19000-15041
sub11355-15010
sub11366-15010
sub91611-60610
main19000-15040i197908-198008
sub19000-15041
sub11355-15040
sub91611-60610
main19000-15080i197908-198109
sub11355-15010
sub11366-15010
sub91611-60610
main19000-15090i197908-198109
sub11355-15040
sub91611-60610
main19000-15091i198109-198207
main19000-15100i198008-198207
main19000-15110i198008-198207

1 parts on this diagram · 1 diagram in section
