Toyota TERCEL — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

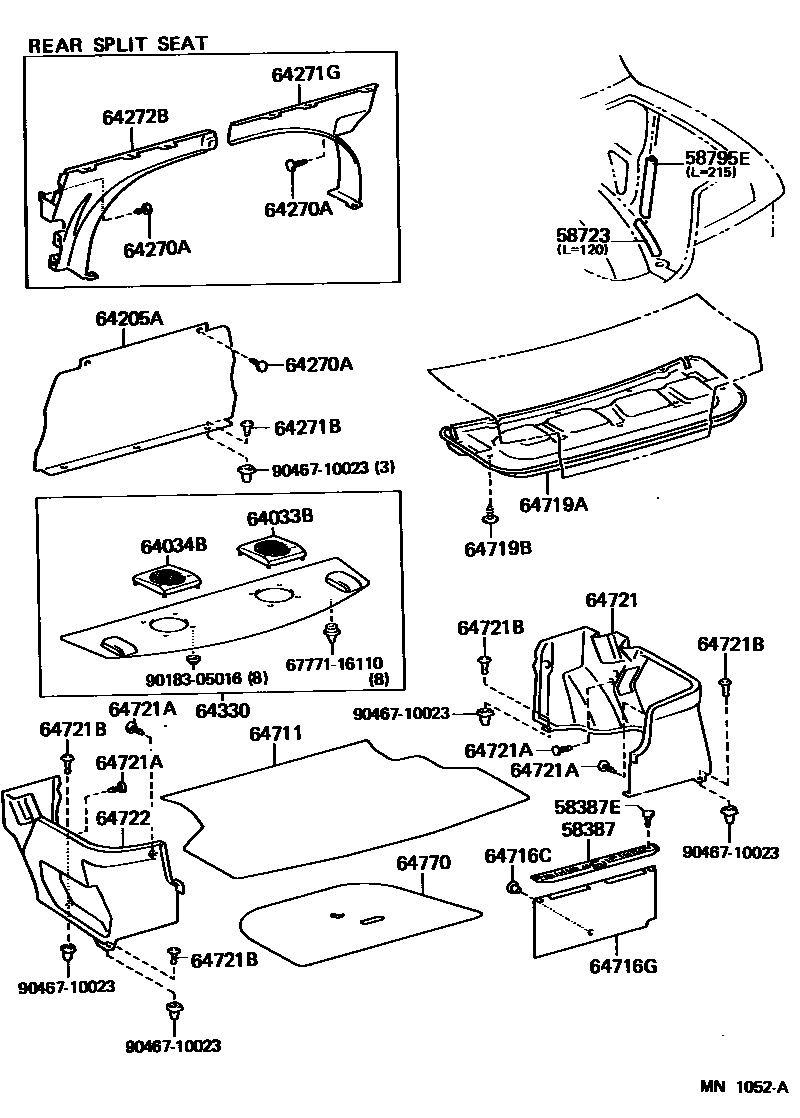

Parts diagram
58387PLATE, REAR FLOOR FINISH
main58387-16020-01i199009-199208
BLACK,TRIM2#,8#
main58387-16020-22i199208-199210
BLACK,TRIM2#,8#
main58387-16040-C0i199210-199409
BLACK,TRIM2#,8#
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
main90467-05096-22×4i199311-199312
BLACK,TRIM2#,8#
main90467-05096-J0×4i199311-199312
EISEN BLUE,TRIM8#
main90467-05098-01×4i199009-199208
BLACK,TRIM2#,8#
main90467-05098-22×4i199208-199311
BLACK,TRIM2#,8#
main90467-06055-22×4i199312-199409
BLACK,TRIM2#,8#
main90467-06055-W4×4i199312-199409
EISEN BLUE,EISEN BLUE,TRIM8#
58723PROTECTOR, LUGGAGE COMPARTMENT SERVICE COVER, NO.1
main58723-16010i199009-199409
58795ETRIM, JACK HOUSE OPENING
main58795-16020i199009-199409
64033BGRILLE SUB-ASSY, REAR SPEAKER, RH
main64033-22070-01i199009-199208
BLACK,TRIM2#
main64033-22070-14i199009-199208
GRAYISH BLUE,TRIM8#
main64033-22070-C0i199208-199409
BLACK,TRIM2#
main64033-22070-J0i199208-199409
EISEN BLUE,TRIM8#
64034BGRILLE SUB-ASSY, REAR SPEAKER, LH
main64033-22070-01i199009-199208
BLACK,TRIM2#
main64033-22070-14i199009-199208
GRAYISH BLUE,TRIM8#
main64033-22070-C0i199208-199409
BLACK,TRIM2#
main64033-22070-J0i199208-199409
EISEN BLUE,TRIM8#
64205ACOVER SUB-ASSY, ROOM PARTITION
main64275-16010-01i199009-199208
BLACK,TRIM2#; BLACK,TRIM2#,8#
main64275-16010-20i199208-199409
BLACK,TRIM2#; BLACK,TRIM2#,8#
64270ACLIP(FOR ROOM PARTITION BOARD SETTING)
main90467-05096-01×3i199009-199208
BLACK,TRIM2#; BLACK,TRIM2#,8#; W(SPLIT REAR SEAT),BLACK,TRIM2#,8#
main90467-05096-22×3i199208-199409
BLACK,TRIM2#; BLACK,TRIM2#,8#; W(SPLIT REAR SEAT),BLACK,TRIM2#,8#
64271BCLIP(FOR ROOM PARTITION BOARD)
main90467-07115-03×3i199009-199208
GRAY,TRIM2#; GRAY,TRIM2#,8#
main90467-07115-C0×3i199208-199409
BLACK,TRIM2#; BLACK,TRIM2#,8#
64271GBOARD, ROOM PARTITION, RH
main64271-16040-01i199009-199208
BLACK,TRIM2#,8#
main64271-16040-22i199208-199409
BLACK,TRIM2#,8#
64272BBOARD, ROOM PARTITION, LH
main64272-16040-01i199009-199208
BLACK,TRIM2#,8#
main64272-16040-22i199208-199409
BLACK,TRIM2#,8#
64330PANEL ASSY, PACKAGE TRAY TRIM
main64330-16270-01i199009-199208
BLACK,TRIM2#
main64330-16270-04i199009-199208
GRAYISH BLUE,TRIM8#
main64330-16270-22i199208-199409
BLACK,TRIM2#
main64330-16270-W4i199208-199409
EISEN BLUE,TRIM8#
main64330-16290-01i199009-199208
W(SPEAKER),BLACK,TRIM2#
main64330-16290-04i199009-199208
W(SPEAKER),GRAYISH BLUE,TRIM8#
main64330-16290-22i199208-199409
W(SPEAKER),BLACK,TRIM2#
main64330-16290-W4i199208-199409
W(SPEAKER),EISEN BLUE,TRIM8#
64711MAT, LUGGAGE COMPARTMENT FLOOR
main64711-16050-01i199009-199208
BLACK,TRIM2#; BLACK,TRIM2#,8#
main64711-16050-20i199208-199409
BLACK,TRIM2#; BLACK,TRIM2#,8#
main64711-16050-C0i199208-199409
BLACK,TRIM2#,8#
main64711-16070-01i199009-199208
BLACK,TRIM2#,8#; W(SPLIT REAR SEAT),BLACK,TRIM2#,8#
main64711-16070-20i199208-199409
BLACK,TRIM2#,8#; W(SPLIT REAR SEAT),BLACK,TRIM2#,8#
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
main90467-05091-01i199009-199208
BLACK,TRIM2#,8#
main90467-05091-22i199208-199409
BLACK,TRIM2#,8#
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
main64716-16070-01i199009-199208
BLACK,TRIM2#,8#
main64716-16070-20i199208-199409
BLACK,TRIM2#,8#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
main64719-16010-01i199009-199208
BLACK,TRIM2#; BLACK,TRIM2#,8#; C0LD AREA PACKAGE,BLACK,TRIM2#; C0LD AREA PACKAGE,BLACK,TRIM2#,8#
main64719-16010-20i199208-199409
BLACK,TRIM2#; BLACK,TRIM2#,8#; C0LD AREA PACKAGE,BLACK,TRIM2#; C0LD AREA PACKAGE,BLACK,TRIM2#,8#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
main90467-05096-01×11i199009-199208
BLACK,TRIM2#; BLACK,TRIM2#,8#; C0LD AREA PACKAGE,BLACK,TRIM2#; C0LD AREA PACKAGE,BLACK,TRIM2#,8#
main90467-05096-22×11i199208-199409
BLACK,TRIM2#; BLACK,TRIM2#,8#; C0LD AREA PACKAGE,BLACK,TRIM2#; C0LD AREA PACKAGE,BLACK,TRIM2#,8#
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
main64721-16030-01i199009-199208
BLACK,TRIM2#,8#
main64721-16030-20i199208-199409
BLACK,TRIM2#,8#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
main90467-05096-01×13i199009-199208
BLACK,TRIM2#,8#
main90467-05096-22×13i199208-199409
BLACK,TRIM2#,8#
64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1
main90467-07115-03×4i199009-199208
GRAY,TRIM2#,8#
main90467-07115-C0×4i199208-199409
BLACK,TRIM2#,8#
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
main64722-16030-01i199009-199208
BLACK,TRIM2#,8#
main64722-16030-20i199208-199409
BLACK,TRIM2#,8#
64770COVER ASSY, SPARE WHEEL
main64770-16110i199009-199010
main64770-16111i199010-199409
main64770-16180i199208-199309
CHILE SPEC
6777116110WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-16110
9018305016
main90183-05016
9046710023
main90467-10023

25 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota TERCEL

This section contains 25 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota TERCEL. Key components include: PLATE, REAR FLOOR FINISH, CLIP(FOR REAR FLOOR FINISH PLATE), PROTECTOR, LUGGAGE COMPARTMENT SERVICE COVER, NO.1, TRIM, JACK HOUSE OPENING, GRILLE SUB-ASSY, REAR SPEAKER, RH.
