Toyota TERCEL — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58795ATRIM, JACK HOUSE OPENING
64033BGRILLE SUB-ASSY, REAR SPEAKER, RH
64034BGRILLE SUB-ASSY, REAR SPEAKER, LH
64330PANEL ASSY, PACKAGE TRAY TRIM
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64330EPLUG(FOR PACKAGE TRAY TRIM PANEL)
64711MAT, LUGGAGE COMPARTMENT FLOOR
64711ACLIP(FOR LUGGAGE COMPARTMENT FLOOR MAT)
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
64770COVER ASSY, SPARE WHEEL
9018305016
main90183-05016

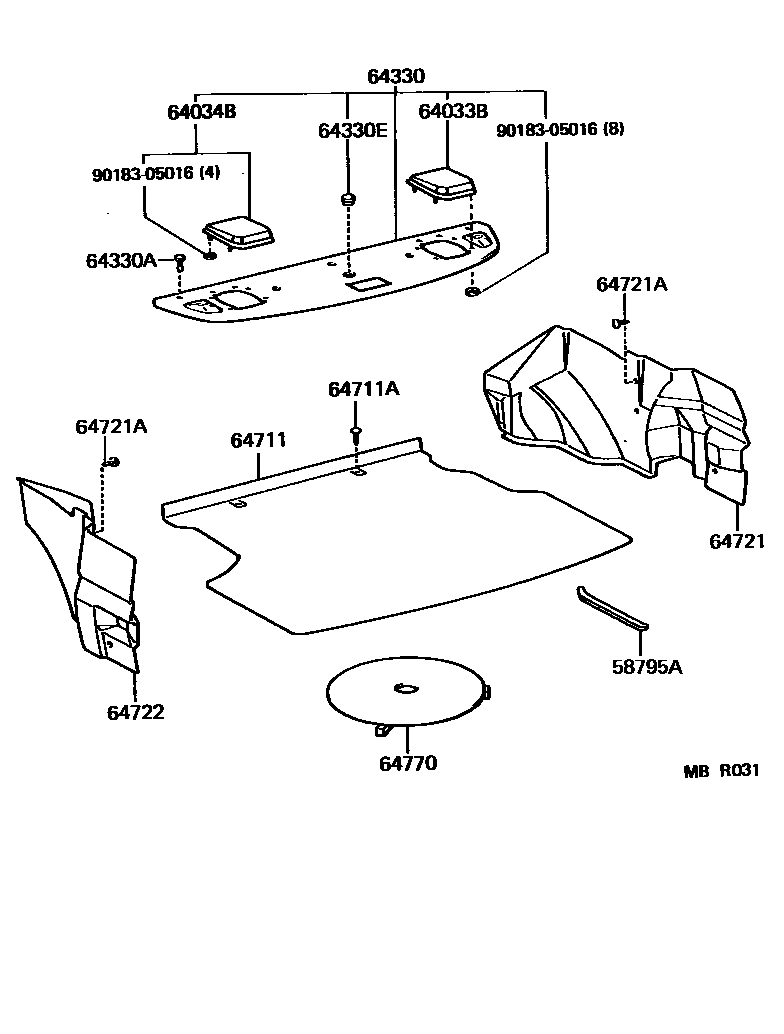

13 parts on this diagram · 1 diagram in section
PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota TERCEL
This section contains 13 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota TERCEL. Key components include: TRIM, JACK HOUSE OPENING, GRILLE SUB-ASSY, REAR SPEAKER, RH, GRILLE SUB-ASSY, REAR SPEAKER, LH, PANEL ASSY, PACKAGE TRAY TRIM, CLIP(FOR PACKAGE TRAY TRIM PANEL).
