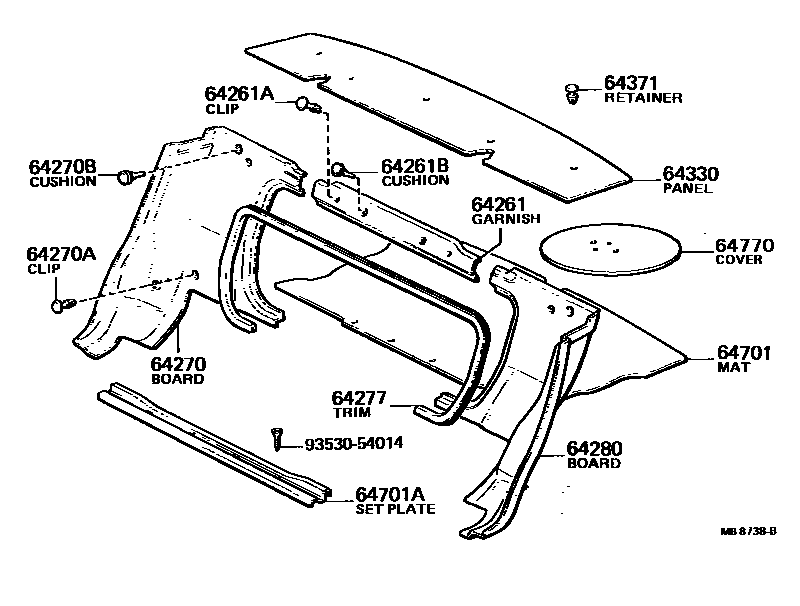

Toyota TERCEL — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
64261GARNISH, ROOM PARTITION
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
64261ACLIP(FOR ROOM PARTITION GARNISH)
BLACK,BLACK
LIGHT BROWN,BROWN
BLUE,BLUE
64261BCUSHION(FOR ROOM PARTITION GARNISH)
64270BOARD ASSY, ROOM PARTITION, RH
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
64270ACLIP(FOR ROOM PARTITION BOARD SETTING)
BLACK,BLACK
LIGHT BROWN,BROWN
BLUE,BLUE
64270BCUSHION(FOR ROOM PARTITION BOARD)
64277TRIM, ROOM PARTITION LOWER
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
64280BOARD ASSY, ROOM PARTITION, LH
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
64330PANEL ASSY, PACKAGE TRAY TRIM
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
LIGHT BROWN,BROWN
RR SEPARATE SEAT,BLACK,BLACK
RR SEPARATE SEAT,BLUE,BLUE
RR SEPARATE SEAT,LIGHT BROWN,BROWN
64371RETAINER, PACKAGE TRAY TRIM
BLACK,BLACK
BLUE,BLUE
BEIGE,BROWN
64701MAT SUB-ASSY, LUGGAGE COMPARTMENT
64701ASET PLATE, LUGGAGE COMPARTMENT
64770COVER ASSY, SPARE WHEEL
9353054014
main93530-54014
14 parts on this diagram · 1 diagram in section
PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota TERCEL
This section contains 14 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota TERCEL. Key components include: GARNISH, ROOM PARTITION, CLIP(FOR ROOM PARTITION GARNISH), CUSHION(FOR ROOM PARTITION GARNISH), BOARD ASSY, ROOM PARTITION, RH, CLIP(FOR ROOM PARTITION BOARD SETTING).
