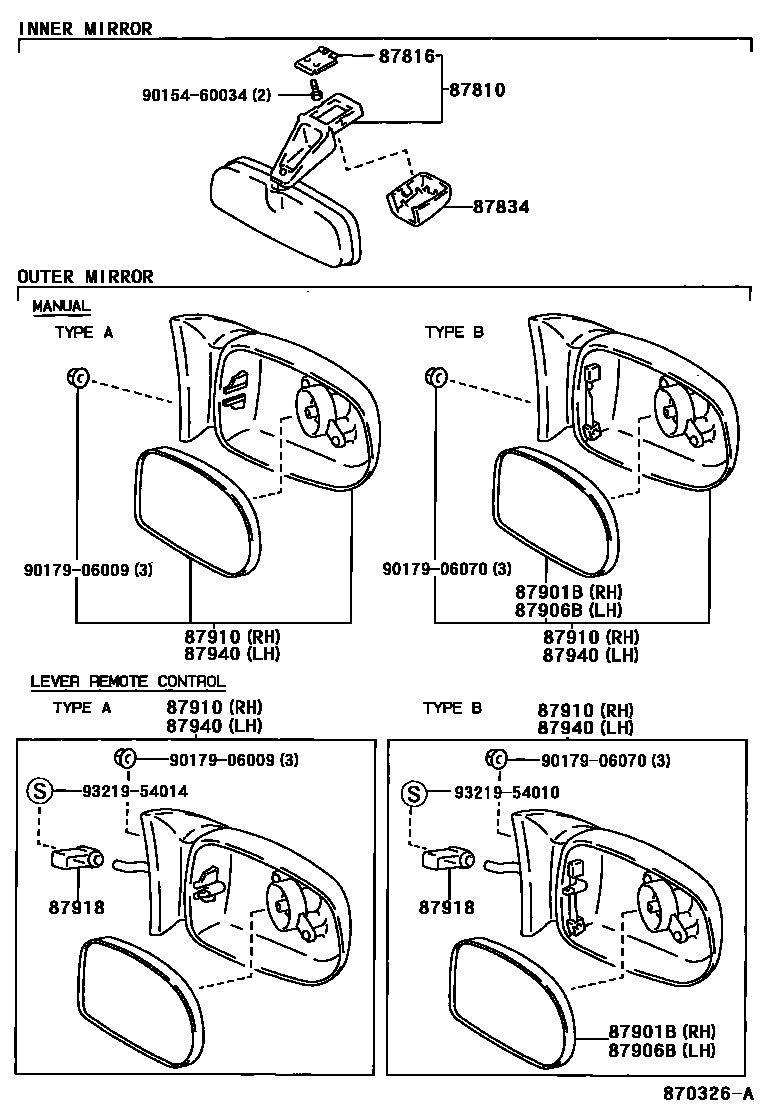

Toyota TERCEL — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
LT.BLUISH GRAY,TRIM1#
MD.OAK,TRIM4#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
TYPE B:REFER TO ILLUSTRATION
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
TYPE B:REFER TO ILLUSTRATION
87910MIRROR ASSY, OUTER REAR VIEW, RH
TYPE A:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION,W(LEVER REMOTE CONTROL)
TYPE A:REFER TO ILLUSTRATION,W(LEVER REMOTE CONTROL)
TYPE B:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION,W(LEVER REMOTE CONTROL)
TYPE B:REFER TO ILLUSTRATION,W(LEVER REMOTE CONTROL)
87918KNOB, CONTROL OUTER MIRROR
TYPE A:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
87940MIRROR ASSY, OUTER REAR VIEW, LH
TYPE A:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION,W(LEVER REMOTE CONTROL)
TYPE A:REFER TO ILLUSTRATION,W(LEVER REMOTE CONTROL)
TYPE B:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION,W(LEVER REMOTE CONTROL)
TYPE B:REFER TO ILLUSTRATION,W(LEVER REMOTE CONTROL)
9015460034
main90154-60034
9017906009
main90179-06009
9017906070
main90179-06070
9321954010
main93219-54010
9321954014
main93219-54014
13 parts on this diagram · 2 diagrams in section
