Toyota TERCEL — MIRROR

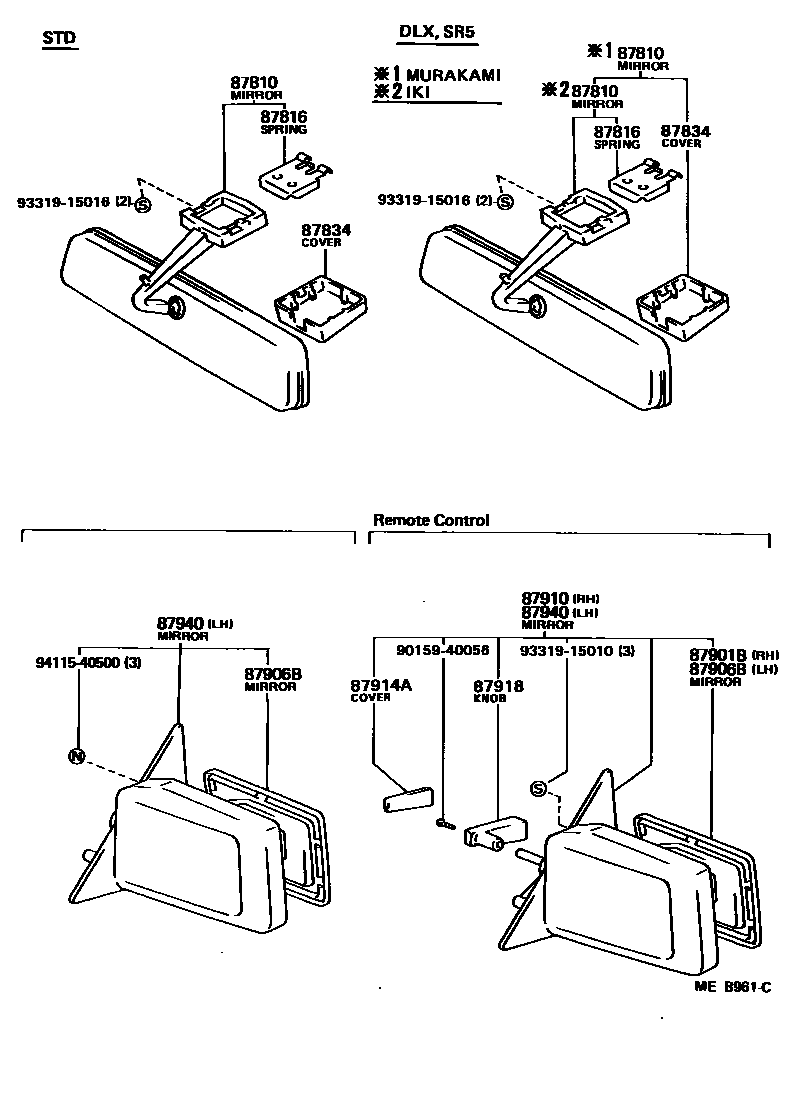

Parts diagram
87810MIRROR ASSY, INNER REAR VIEW
main87810-16010-08i198605-198608
IVORY,IVORY
main87810-16020-01i198608-198801
BLACK,IKI,NEW BLACK
sub87810-22162
main87810-16020-05i198608-198801
BEIGE,IKI,DARK BEIGE
sub87810-22162
main87810-19015-15i198608-198801
BEIGE,MURAKAMI,DARK BEIGE
main87810-19015-18i198208-198608
IVORY,MURAKAMI,IVORY
main87810-19015-21i198608-198801
BLACK,MURAKAMI,NEW BLACK
main87810-20170-18i198208-198605
IVORY,IVORY
87816SPRING, INNER REAR VIEW MIRROR
main74372-30030i198608-198801
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87834-20080-18i198208-198605
IVORY,IVORY
main87834-20080-28i198605-198801
IVORY,IVORY
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
main87908-16040i198208-198308
main87908-16050i198308-198408
main87908-16060i198408-198508
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
main87909-16040i198208-198408
REMOTE CONTROL TYPE
main87909-16050i198408-198801
REMOTE CONTROL TYPE
main87909-16320i198408-198608
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-16180i198208-198308
REMOTE CONTROL TYPE
main87910-16181i198308-198408
REMOTE CONTROL TYPE
main87910-16182i198408-198508
REMOTE CONTROL TYPE
main87910-16190i198208-198308
REMOTE CONTROL TYPE
main87910-16191i198308-198408
REMOTE CONTROL TYPE
main87910-16192i198408-198801
REMOTE CONTROL TYPE
87914ACOVER, OUTER MIRROR KNOB
main87914-16010×2i198208-198508
87918KNOB, CONTROL OUTER MIRROR
main87918-14040×2i198208-198508
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-16130i198208-198408
main87940-16131i198408-198608
main87940-16140i198208-198408
REMOTE CONTROL TYPE
main87940-16141i198408-198608
REMOTE CONTROL TYPE
main87940-16170i198208-198408
main87940-16171i198408-198608
main87940-16180i198208-198408
REMOTE CONTROL TYPE
main87940-16181i198408-198608
REMOTE CONTROL TYPE
9015940056
main90159-40056
9331915010
main93319-15010
9331915016
main93319-15016
9411540500
main94115-40500

13 parts on this diagram · 1 diagram in section
