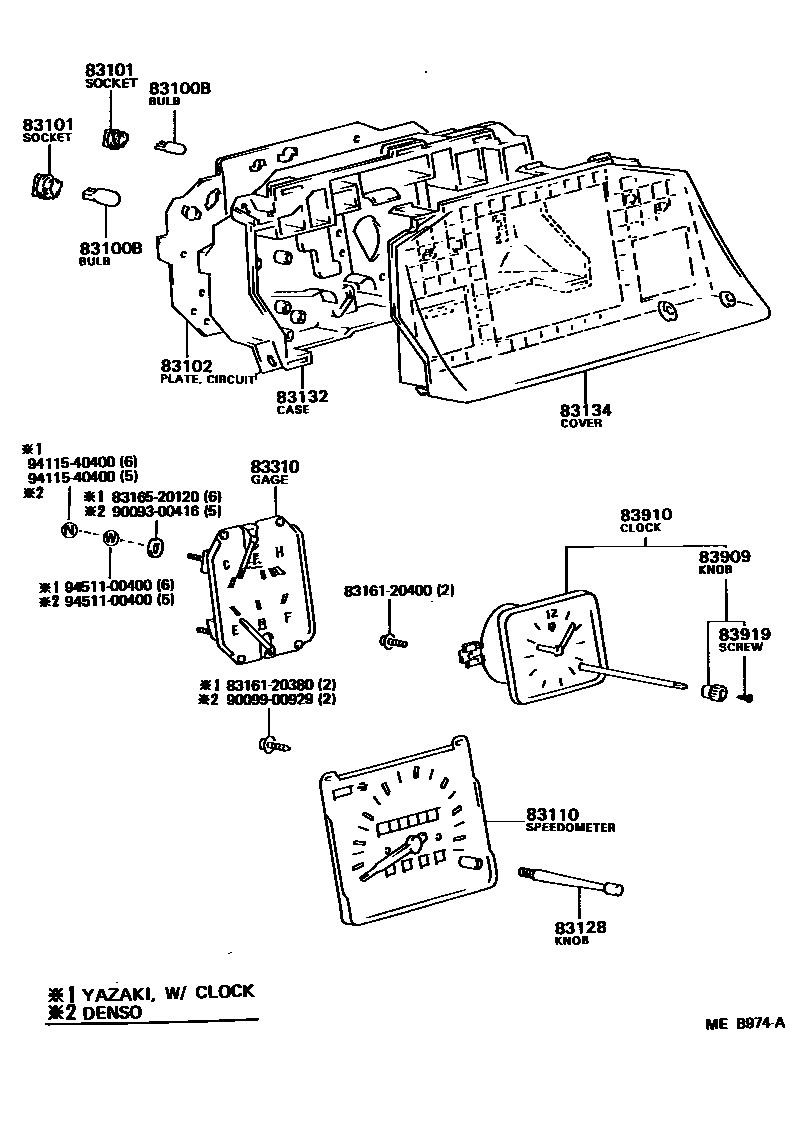

Toyota TERCEL — METER

0001 1 0002 1 0003 1 0004 1

83100BBULB, COMBINATION METER, NO.1

main83109-28010×3iAL2#198208-198801

12V3.4W W(GREEN CAP),12V 3.4W,W/GREEN CAP

main90981-11018×3iAL2#..SR5198208-198801

12V 1.2W W/O SOCKET,12V 1.4W

main99132-12034×7iAL2#198208-198801

12V 3.4W,12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×7iAL2#198208-198801

12V 3.4W,DENSO

main83101-14040×3iAL2#..SR5198208-198801

12V 1.4W

main83101-20040×7iAL2#..(DLX,STD)..USA198208-198801

12V 3.4W,YAZAKI

main83101-28010×3iAL2#..(DLX,STD)..CND198508-198801

12V 3.4W,DENSO,W/GREEN CAP

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-16160iAL2#..(DLX,STD)..USA198208-198801

YAZAKI

main83247-16610iAL2#..SR5198208-198801

main83247-16730iAL2#..DLX,STD198208-198801

DENSO

main83247-1G470iAL25..SR5..USA198502-198801

W/CRUISE CONTROL

83110SPEEDOMETER ASSY

main83110-16220iAL2#..DLX..USA198502-198801

W/CRUISE CONTROL

main83110-16270iAL25..SR5..USA198502-198801

W/CRUISE CONTROL

main83110-16340iAL2#..(DLX,STD)..USA198208-198408

DENSO

main83110-16350iAL2#..SR5..USA198208-198408

main83110-16360iAL2#..(DLX,STD)..CND198208-198408

main83110-16370iAL2#..SR5..CND198208-198408

main83110-16510iAL2#..(DLX,STD)..USA198208-198408

YAZAKI

main83110-16730iAL2#..(DLX,STD)..USA198408-198801

YAZAKI

main83110-16740iAL25..SR5..USA198408-198801

main83110-16750iAL2#..(DLX,STD)..CND198408-198508

main83110-16751iAL2#..(DLX,STD)..CND198508-198801

main83110-16760iAL2#..SR5..CND198408-198508

main83110-16761iAL25..SR5..CND198508-198801

main83110-1G020iAL2#..(DLX,STD)..USA198408-198801

DENSO

83128KNOB, TRIP COUNTER

main83128-16080iAL2#..(DLX,STD)..USA198408-198801

YAZAKI

main83128-16090iAL2#..SR5198208-198801

main83128-16110iAL2#..DLX,STD198208-198801

DENSO

main83128-20710iAL2#..(DLX,STD)..USA198208-198408

YAZAKI

83132CASE, COMBINATION METER

main83132-16240iAL2#..(DLX,STD)..USA198208-198301

YAZAKI

main83132-16260iAL2#..(DLX,STD)..USA198301-198801

YAZAKI

main83132-16530iAL2#..SR5198208-198508

main83132-16570iAL2#..DLX,STD198208-198309

DENSO

main83132-16670iAL2#..DLX,STD198309-198801

DENSO

main83132-16830iAL25..SR5..CND198508-198801

83134COVER, COMBINATION METER, NO.1

main83133-16470iAL2#..SR5198208-198309

main83133-16530iAL2#..DLX,STD198208-198408

DENSO

main83133-16670iAL2#..SR5198309-198801

main83133-16750iAL2#..DLX,STD198408-198801

DENSO

main83134-16100iAL2#..DLX..USA198208-198408

YAZAKI,W/CLOCK

sub83134-16101

main83134-16120iAL2#..(DLX,STD)..USA198208-198408

YAZAKI

sub83134-16121

main83134-16260iAL2#..(DLX,STD)..USA198408-198801

YAZAKI

main83134-16280iAL2#..DLX..USA198408-198801

YAZAKI,W/CLOCK

83310GAGE ASSY, FUEL RECEIVER

main83243-16080iAL2#..(DLX,STD)..USA198208-198801

YAZAKI

main83243-16370iAL2#..SR5198208-198408

main83243-16390iAL2#..(DLX,STD)..USA198208-198801

DENSO

main83243-16410iAL2#..(DLX,STD)..CND198208-198801

main83243-16530iAL2#..SR5198408-198801

83909KNOB, CLOCK

main83909-14012iAL2#..DLX..USA198208-198801

main83909-16050iAL2#..SR5198208-198801

83910CLOCK ASSY

main83910-16060iAL2#..DLX..USA198208-198801

main83910-16070iAL2#..SR5198208-198801

83919SCREW, CLOCK

main83919-12230iAL2#..SR5198208-198801

main83919-14012iAL2#..DLX..USA198208-198801

8316120380CASE, COMBINATION METER MIRROR, NO.1

main83161-20380

8316120400CASE, COMBINATION METER MIRROR, NO.1

main83161-20400

8316520120MIRROR, COMBINATION METER, NO.2

main83165-20120

9009300416

main90093-00416

9009900929

main90099-00929

9411540400

main94115-40400

9451100400

main94511-00400

18 parts on this diagram · 4 diagrams in section
