Toyota TERCEL — METER

0001 1 0002 1 0003 1 0004 1 0005 1

83100BBULB, COMBINATION METER, NO.1

main90981-11018×8iAL1#197908-198207

12V 1.2W W/O SOCKET,12V 1.4W

main99132-12034×10iAL1#197908-198207

12V 3.4W,12V 3.4W

83100GGLASS, COMBINATION METER

main83138-16130iAL1#..STD197908-198008

main83138-16140iAL1#..DLX197908-198008

W/O CLOCK

main83138-16150iAL1#..DLX197908-198008

W/CLOCK

main83138-16190iAL10..SR5197908-198008

main83138-16200iAL12..SR5197908-198008

main83138-16230iAL12..STD198008-198207

main83138-16250iAL12..DLX198008-198207

W/CLOCK

main83138-16270iAL12..DLX198008-198207

W/O CLOCK

main83138-16290iAL12..SR5198008-198207

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×10iAL1#197908-198207

12V 3.4W

main83101-14040×8iAL1#197908-198207

12V 1.4W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-16190iAL1#..STD197908-198008

main83247-16200iAL1#..DLX197908-198008

main83247-16210iAL1#..SR5197908-198008

main83247-16270iAL12..DLX198008-198108

W/CLOCK,CALIFORNIA SPEC

main83247-16290iAL12..(DLX,STD)..USA198008-198108

CALIFORNIA SPEC

main83247-16310iAL12..DLX,STD198008-198207

main83247-16350iAL12..DLX198008-198207

W/CLOCK

main83247-16390iAL12..SR5..USA198008-198108

CALIFORNIA SPEC

main83247-16430iAL12..SR5198008-198207

83103PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2

main83247-16150iAL1#..DLX,STD197908-198008

main83247-16220iAL1#..SR5197908-198008

83110SPEEDOMETER ASSY

main83110-16140iAL10..STD..USA197908-198008

main83110-16141iAL12..STD..USA198008-198207

main83110-16150iAL10..DLX197908-198008

main83110-16151iAL12..DLX198008-198207

main83110-16160iAL1#..STD..CND197908-198008

main83110-16161iAL12..STD..CND198008-198207

main83110-16170iAL12..DLX197908-198008

main83110-16180iAL10..SR5197908-198008

main83110-16181iAL12..SR5..USA198008-198207

main83110-16190iAL12..SR5197908-198008

main83110-16191iAL12..SR5..3A198008-198207

main83110-16230iAL12..STD..USA198008-198108

CALIFORNIA SPEC

main83110-16240iAL12..DLX198008-198108

CALIFORNIA SPEC

main83110-16250iAL12..SR5..USA198008-198108

CALIFORNIA SPEC

83128KNOB, TRIP COUNTER

main83128-16010iAL1#..DLX,SR5197908-198008

83132CASE, COMBINATION METER

main83132-16190iAL1#..STD197908-198008

main83132-16200iAL1#..DLX197908-198008

main83132-16210iAL1#..SR5197908-198008

main83132-16230iAL12..DLX198008-198108

CALIFORNIA SPEC

main83132-16250iAL12..STD..USA198008-198108

CALIFORNIA SPEC

main83132-16270iAL12..DLX198008-198207

main83132-16290iAL12..STD198008-198207

main83132-16350iAL12..SR5..USA198008-198108

CALIFORNIA SPEC

main83132-16370iAL12..SR5198008-198207

83134COVER, COMBINATION METER, NO.1

main83133-16130iAL1#..DLX,STD197908-198008

NO.1

main83133-16140iAL1#..DLX,STD197908-198008

NO.2

main83133-16150iAL1#..SR5197908-198008

NO.1

main83133-16160iAL1#..SR5197908-198008

NO.2

main83133-16190iAL12..DLX,STD198008-198207

main83133-16270iAL12..DLX198008-198207

W/CLOCK

main83133-16310iAL12..SR5..USA198008-198108

CALIFORNIA SPEC

main83133-16330iAL12..SR5198008-198207

83310GAGE ASSY, FUEL RECEIVER

main83243-16130iAL1#..STD197908-198008

W/WATER TEMP.RECEIVER GAGE

main83243-16140iAL1#..DLX197908-198008

W/WATER TEMP.RECEIVER GAGE

main83243-16190iAL1#..SR5197908-198008

main83243-16210iAL12..STD..CND198008-198207

W/WATER TEMP.RECEIVER GAGE

main83243-16230iAL12..SR5..3A198008-198207

main83243-16290iAL12..SR5..USA198008-198207

main83243-16330iAL12..(DLX,STD)..USA198008-198207

W/WATER TEMP.RECEIVER GAGE

83910CLOCK ASSY

main83910-12210iAL12..DLX198008-198207

main83910-16030iAL1#..DLX197908-198008

9009900909

main90099-00909

9009900917

main90099-00917

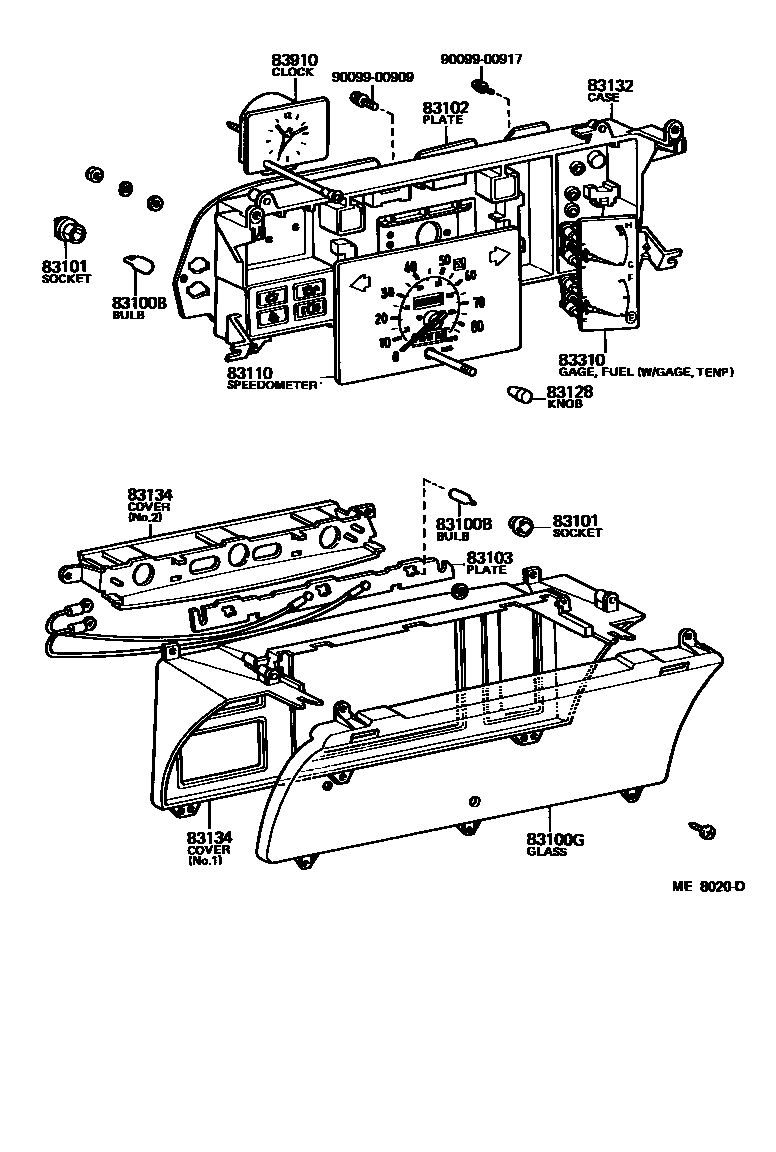

13 parts on this diagram · 5 diagrams in section
