Toyota TERCEL — MAT & CARPET

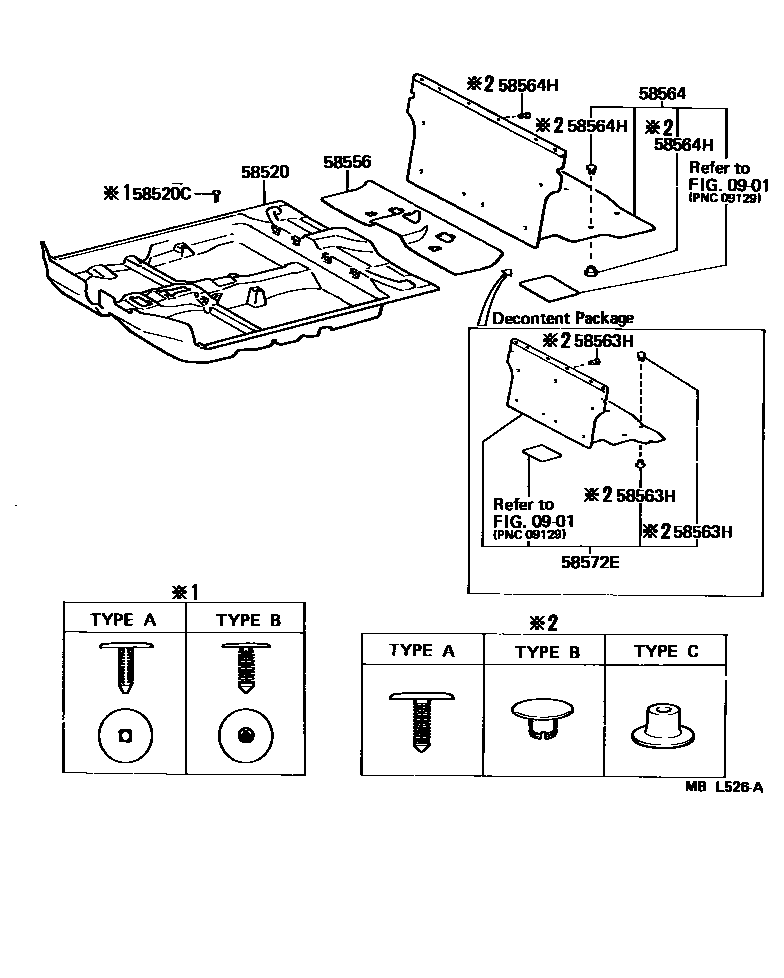

Parts diagram
0901STANDARD TOOL
→ Go to FIG 09-01
58520CARPET ASSY, FRONT FLOOR
main58510-16550-01i198701-198808
BLACK,BLACK,TRIM2#
main58510-16550-04i198701-198808
BLUE,BLUE,TRIM8#
main58510-16550-05i198608-198808
W/*FCRS,BEIGE,DARK BEIGE,TRIM4#
main58510-16560-01i198608-198808
BLACK,BLACK,TRIM2#
main58510-16560-04i198608-198808
BLUE,BLUE,TRIM8#
main58510-16560-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
main58510-16620-01i198708-198808
BLACK,BLACK,TRIM2#
main58510-16620-04i198608-198808
COLD SPEC,BLUE,BLUE,TRIM8#
main58510-16620-05i198708-198808
BEIGE,DARK BEIGE,TRIM4#
main58510-16630-01i198608-198808
W/*FCRS,BLACK,BLACK,TRIM2#
main58510-16630-04i198608-198808
W/*FCRS,BLUE,BLUE,TRIM8#
main58510-16630-05i198608-198808
W/*FCRS,BEIGE,DARK BEIGE,TRIM4#
main58510-16640-01i198608-198808
BLACK,BLACK,TRIM2#
main58510-16640-04i198608-198808
BLUE,BLUE,TRIM8#
main58510-16640-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
main58510-16650-01i198608-198808
W/*FCRS,COLD SPEC,BLACK,BLACK,TRIM2#
main58510-16650-04i198708-198808
W/*FCRS,BLUE,BLUE,TRIM8#
main58510-16650-05i198708-198808
W/*FCRS,BEIGE,DARK BEIGE,TRIM4#
main58510-16660-01i198608-198808
COLD SPEC,BLACK,BLACK,TRIM2#
main58510-16660-04i198708-198808
BLUE,BLUE,TRIM8#
main58510-16660-05i198708-198808
BEIGE,DARK BEIGE,TRIM4#
main58510-16710-01i198701-198808
COLD SPEC,BLACK,BLACK,TRIM2#
main58510-16710-04i198708-198808
W/*FCRS,BLUE,BLUE,TRIM8#
main58510-16710-05i198608-198808
W/*FCRS,COLD SPEC,BEIGE,DARK BEIGE,TRIM4#
main58510-16740-01i198608-198708
W/*FCRS,BLACK,BLACK,TRIM2#
main58510-16740-04i198608-198708
W/*FCRS,BLUE,BLUE,TRIM8#
main58510-16740-05i198608-198708
W/*FCRS,BEIGE,DARK BEIGE,TRIM4#
main58510-16750-01i198608-198708
BLACK,BLACK,TRIM2#
main58510-16750-04i198608-198708
BLUE,BLUE,TRIM8#
main58510-16750-05i198608-198708
BEIGE,DARK BEIGE,TRIM4#
main58510-16760-01i198708-198710
BLACK,BLACK,TRIM2#
main58510-16760-04i198708-198710
BLUE,BLUE,TRIM8#
main58510-16760-05i198708-198710
BEIGE,DARK BEIGE,TRIM4#
main58510-16870-01i198708-198808
BLACK,NEW BLACK,TRIM2#
main58510-16880-01i198708-198808
BLACK,NEW BLACK,TRIM2#; COLD SPEC,BLACK,NEW BLACK,TRIM2#
main58510-16890-01i198708-198808
BLACK,NEW BLACK,TRIM2#
58520CCLIP(FOR FRONT FLOOR CARPET)
main90467-06016-11i198608-198808
TYPE A,BLACK,BLACK,TRIM2#
main90467-06016-30i198608-198808
TYPE A,BLUE,BLUE,TRIM8#
main90467-06016-45i198608-198808
TYPE A,BEIGE,DARK BEIGE,TRIM4#
main90467-06037-01i198608-198808
TYPE B,BLACK,BLACK,TRIM2#
main90467-06037-14i198608-198808
TYPE B,BLUE,BLUE,TRIM8#
main90467-06037-25i198608-198808
TYPE B,BEIGE,DARK BEIGE,TRIM4#
58556CARPET, REAR SEAT, FRONT
main58572-16020-01i198608-198808
BLACK,BLACK,TRIM2#
main58572-16020-04i198608-198808
BLUE,BLUE,TRIM8#
main58572-16020-05i198608-198808
BEIGE,BEIGE,TRIM4#
58563HCLIP(FOR REAR FLOOR MAT)
main90467-06037-01×15i198708-198808
TYPEA,BLACK,BLACK,TRIM2#
main90467-10086-01×6i198708-198808
TYPEB,BLACK,BLACK,TRIM2#
main90467-13040-01×6i198708-198808
TYPEC,BLACK,BLACK,TRIM2#
58564CARPET, REAR FLOOR
main58571-16150-01i198608-198808
W/*SEL,BLACK,BLACK,TRIM2#
main58571-16150-04i198608-198808
W/*SEL,BLUE,BLUE,TRIM8#
main58571-16150-05i198608-198808
W/*SEL,BEIGE,DARK BEIGE,TRIM4#
main58571-16160-01i198608-198808
W/*FCRS,*SEL,BLACK,BLACK,TRIM2#
main58571-16160-04i198608-198808
W/*FCRS,*SEL,BLUE,BLUE,TRIM8#
main58571-16160-05i198608-198808
W/*FCRS,*SEL,BEIGE,DARK BEIGE,TRIM4#
main58571-16170-01i198608-198808
W/*FCRS,BLACK,BLACK,TRIM2#
main58571-16170-04i198608-198808
W/*FCRS,BLUE,BLUE,TRIM8#
main58571-16170-05i198608-198808
W/*FCRS,BEIGE,DARK BEIGE,TRIM4#
main58571-16180-01i198608-198808
BLACK,BLACK,TRIM2#
main58571-16180-04i198608-198808
BLUE,BLUE,TRIM8#
main58571-16180-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
main58571-16190-01i198608-198808
W/*FCRS,BLACK,BLACK,TRIM2#
main58571-16190-04i198608-198808
W/*FCRS,BLUE,BLUE,TRIM8#
main58571-16190-05i198608-198808
W/*FCRS,BEIGE,DARK BEIGE,TRIM4#
main58571-16200-01i198608-198808
W/*FCRS,*SEL,BLACK,BLACK,TRIM2#
main58571-16200-04i198608-198808
W/*FCRS,*SEL,BLUE,BLUE,TRIM8#
main58571-16200-05i198608-198808
W/*FCRS,*SEL,BEIGE,DARK BEIGE,TRIM4#
main58571-16210-01i198608-198710
BLACK,BLACK,TRIM2#
main58571-16210-04i198608-198710
BLUE,BLUE,TRIM8#
main58571-16210-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
main58571-16220-01i198608-198710
W/*SEL,BLACK,BLACK,TRIM2#
main58571-16220-04i198608-198710
W/*SEL,BLUE,BLUE,TRIM8#
main58571-16220-05i198608-198710
W/*SEL,BEIGE,DARK BEIGE,TRIM4#
main58571-16300-01i198710-198808
BLACK,BLACK,TRIM2#
main58571-16300-04i198708-198710
BLUE,BLUE,TRIM8#
main58571-16300-05i198710-198808
BEIGE,DARK BEIGE,TRIM4#
main58571-16310-01i198710-198808
W/*SEL,BLACK,BLACK,TRIM2#
main58571-16310-04i198708-198710
W/*SEL,BLUE,BLUE,TRIM8#
main58571-16310-05i198708-198710
W/*SEL,BEIGE,DARK BEIGE,TRIM4#
58564HCLIP(FOR REAR FLOOR CARPET)
main90467-06037-01×15i198608-198808
TYPE A,BLACK,BLACK,TRIM2#
main90467-06037-14×15i198608-198808
TYPE A,BLUE,BLUE,TRIM8#
main90467-06037-25×15i198608-198808
TYPE A,BEIGE,DARK BEIGE,TRIM4#
main90467-11037-01×6i198608-198808
TYPE B,BLACK,BLACK,TRIM2#
main90467-11037-04×6i198608-198808
TYPE B,BLUE,BLUE,TRIM8#
main90467-11037-05×6i198608-198808
TYPE B,BEIGE,DARK BEIGE,TRIM4#
main90467-13037-01×6i198608-198808
TYPE C,BLACK,BLACK,TRIM2#
main90467-13037-04×6i198608-198808
TYPE C,BLUE,BLUE,TRIM8#
main90467-13037-05×6i198608-198808
TYPE C,BEIGE,DARK BEIGE,TRIM4#
58572EMAT, REAR FLOOR, FRONT
main58571-16230-01i198611-198708
DECONTENT PACKAGE,BLACK,NEW BLACK,TRIM2#
main58571-16240-01i198708-198808
W/*SEL,BLACK,NEW BLACK,TRIM2#
main58571-16270-01i198611-198708
DECONTENT PACKAGE,BLACK,BLACK,TRIM2#
main58571-16280-01i198611-198708
DECONTENT PACKAGE,W/*SEL,BLACK,BLACK,TRIM2#

8 parts on this diagram · 1 diagram in section

MAT & CARPET for Toyota TERCEL

This section contains 8 genuine Toyota parts for the MAT & CARPET system of the Toyota TERCEL. Key components include: STANDARD TOOL, CARPET ASSY, FRONT FLOOR, CLIP(FOR FRONT FLOOR CARPET), CARPET, REAR SEAT, FRONT, CLIP(FOR REAR FLOOR MAT).
