Toyota TERCEL — MANIFOLD
16265HOSE, INTAKE MANIFOLD WATER
16265ACLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
17111MANIFOLD, INTAKE
17111APLUG, NO.1
17118STAY, MANIFOLD
17141MANIFOLD, EXHAUST
CALIFORNIA SPEC
17141DBOLT, STUD(FOR OXYGEN SENSOR)
17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
EXHAUST MANIFOLD,NO.1
EXHAUST MANIFOLD,NO.2
INTAKE MANIFOLD
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
9011608204
main90116-08204
9017906007
main90179-06007
9017908017
main90179-08017
9017908044
main90179-08044
9017910025
main90179-10025
9161160825
main91611-60825
9165160816
main91651-60816
9212260612
main92122-60612
9212260814
main92122-60814

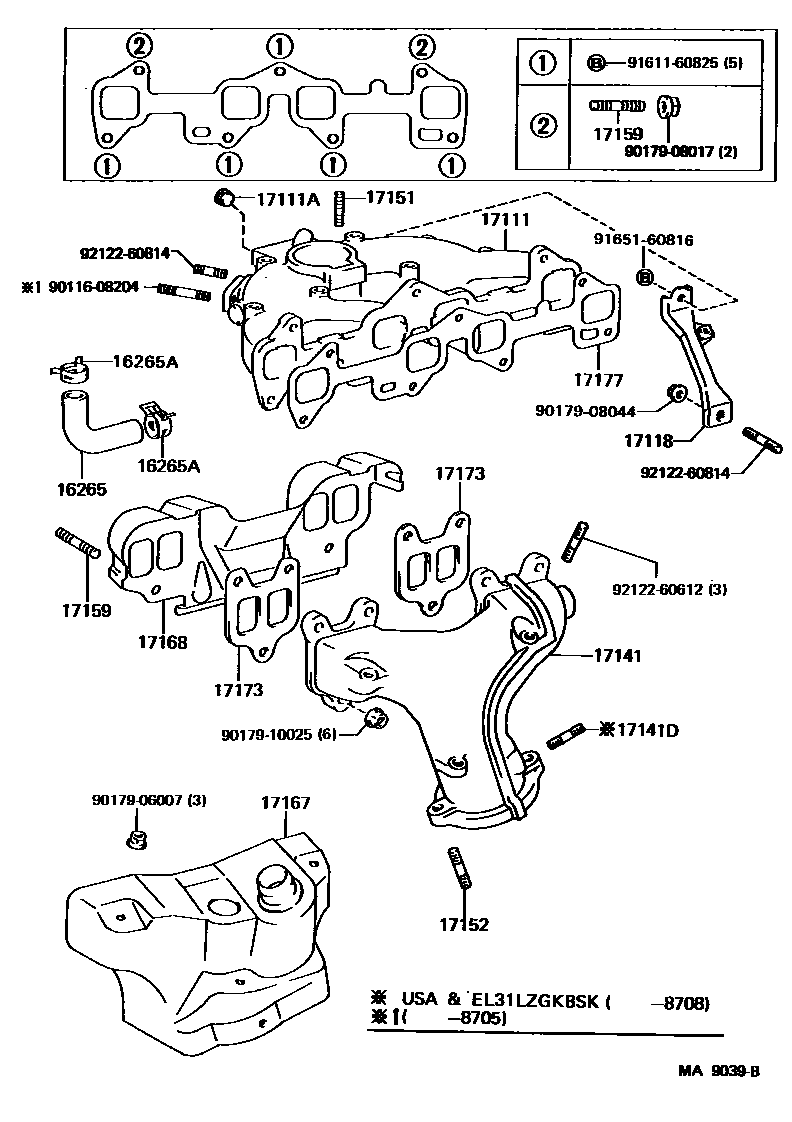

23 parts on this diagram · 1 diagram in section
MANIFOLD for Toyota TERCEL
This section contains 23 genuine Toyota parts for the MANIFOLD system of the Toyota TERCEL. Key components include: HOSE, INTAKE MANIFOLD WATER, CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER), MANIFOLD, INTAKE, PLUG, NO.1, STAY, MANIFOLD.
