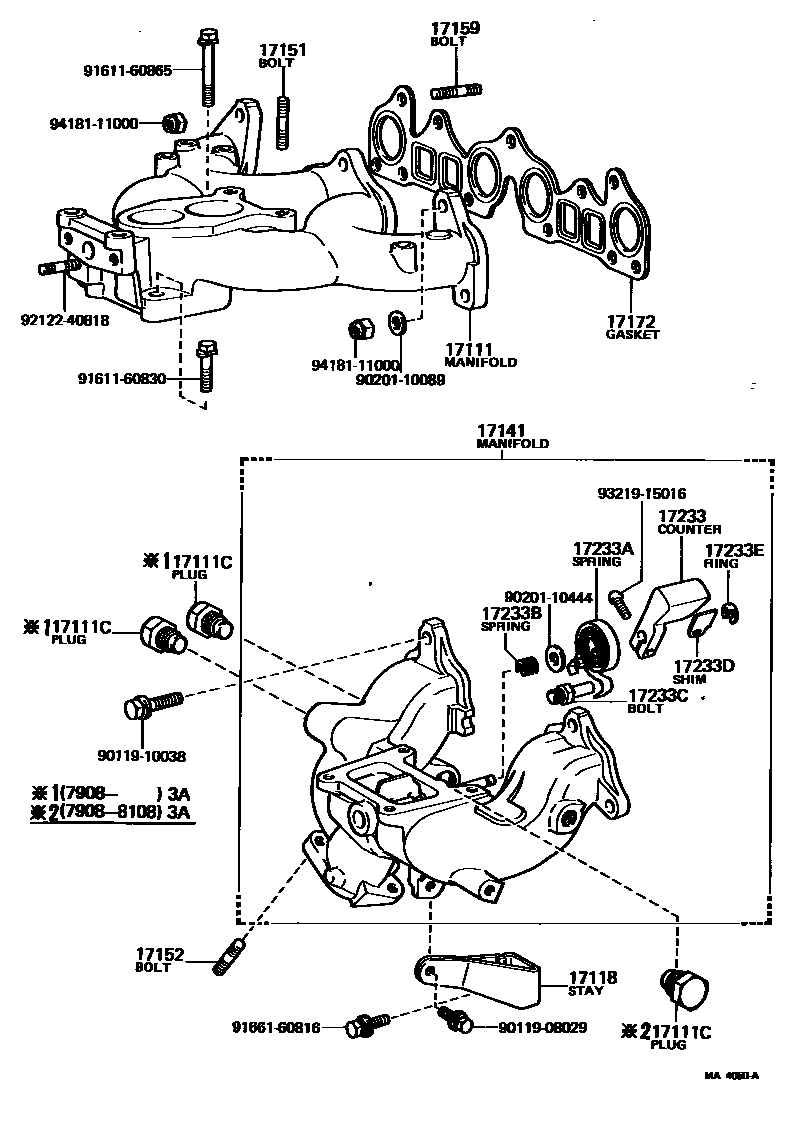

Toyota TERCEL — MANIFOLD
17111MANIFOLD, INTAKE
17111CPLUG, NO.3
17118STAY, MANIFOLD
CALIFORNIA SPEC
17141MANIFOLD, EXHAUST
CALIFORNIA SPEC
17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
L=42,S=16&10
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
L=41,S=14&21
L=46.5,S=14&20
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
L=44,S=12&20
L=47,S=12&20
17172GASKET, MANIFOLD TO CYLINDER HEAD
17233COUNTER WEIGHT
17233ASPRING, SPIRAL, NO.1(FOR COUNTER WEIGHT)
17233BSPRING, SPIRAL, NO.2(FOR COUNTER WEIGHT)
17233CBOLT(FOR COUNTER WEIGHT)
17233DSHIM(FOR COUNTER WEIGHT)
17233ERING, E(FOR COUNTER WEIGHT)
9011908029
main90119-08029
9011910038
main90119-10038
9020110089
main90201-10089
9020110444
main90201-10444
9161160830
main91611-60830
9161160865
main91611-60865
9166160816
main91661-60816
9212240818
main92122-40818
9321915016
main93219-15016
9418111000
main94181-11000
24 parts on this diagram · 2 diagrams in section
MANIFOLD for Toyota TERCEL
This section contains 26 genuine Toyota parts for the MANIFOLD system of the Toyota TERCEL. Key components include: MANIFOLD, INTAKE, PLUG, NO.3, STAY, MANIFOLD, MANIFOLD, EXHAUST, BOLT, STUD(FOR OXYGEN SENSOR).
