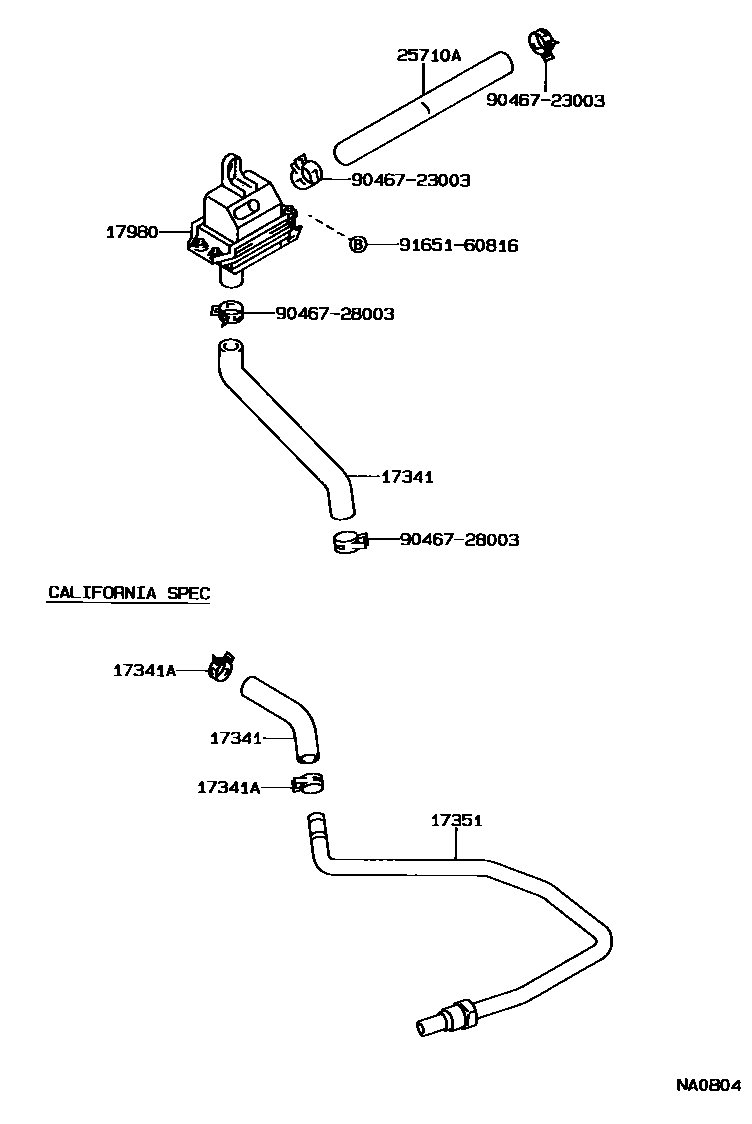

Toyota TERCEL — MANIFOLD AIR INJECTION SYSTEM
17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)
CALIFORNIA SPEC
CALIFOLNIA SPEC
17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)
CALIFORNIA SPEC
17351MANIFOLD, AIR INJECTION
CALIFORNIA SPEC
17980FILTER ASSY, AIR SUCTION
25710AHOSE(FOR AIR BY-PASS VALVE TO AIR SWITCHING VALVE)
9046723003
main90467-23003
9046728003
main90467-28003
9165160816
main91651-60816
8 parts on this diagram · 1 diagram in section
MANIFOLD AIR INJECTION SYSTEM for Toyota TERCEL
This section contains 8 genuine Toyota parts for the MANIFOLD AIR INJECTION SYSTEM system of the Toyota TERCEL. Key components include: HOSE, NO.1(FOR AIR INJECTION SYSTEM), CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1), MANIFOLD, AIR INJECTION, FILTER ASSY, AIR SUCTION, HOSE(FOR AIR BY-PASS VALVE TO AIR SWITCHING VALVE).
