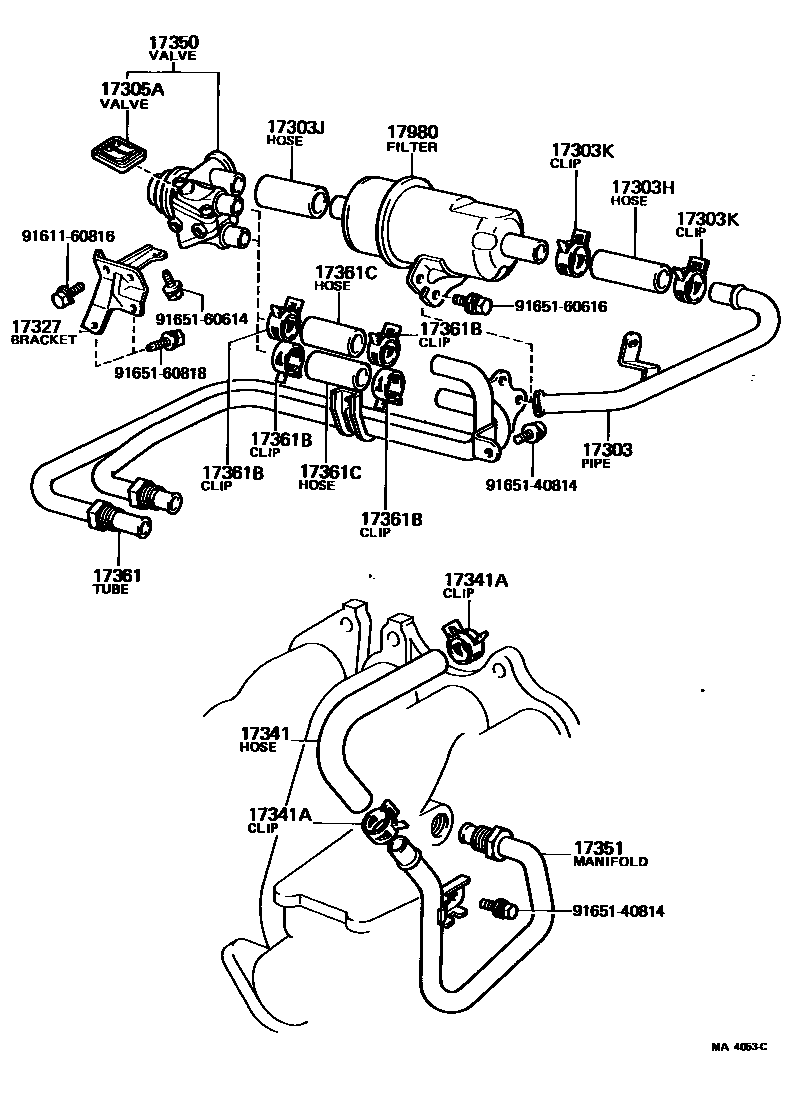

Toyota TERCEL — MANIFOLD AIR INJECTION SYSTEM
17303HHOSE, NO.1(FOR AIR PIPE)
17303JHOSE, NO.2(FOR AIR PIPE)
17303KCLAMP OR CLIP(FOR AIR PIPE HOSE)
17305AVALVE SUB-ASSY, REED
17327BRACKET, REED VALVE
17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)
CALIFORNIA SPEC
17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)
17350VALVE ASSY, REED
17351MANIFOLD, AIR INJECTION
17361TUBE, AIR
CALIFORNIA SPEC
CALIFORNIA SPEC
17361BCLAMP OR CLIP(FOR AIR TUBE HOSE)
17361CHOSE(FOR AIR TUBE)
17980FILTER ASSY, AIR SUCTION
9161160816
main91611-60816
9165140814
main91651-40814
9165160614
main91651-60614
9165160616
main91651-60616
9165160818
main91651-60818
19 parts on this diagram · 3 diagrams in section
MANIFOLD AIR INJECTION SYSTEM for Toyota TERCEL
This section contains 49 genuine Toyota parts for the MANIFOLD AIR INJECTION SYSTEM system of the Toyota TERCEL. Key components include: PIPE SUB-ASSY, AIR, HOSE, NO.1(FOR AIR PIPE), HOSE, NO.2(FOR AIR PIPE), CLAMP OR CLIP(FOR AIR PIPE HOSE), VALVE SUB-ASSY, REED.
