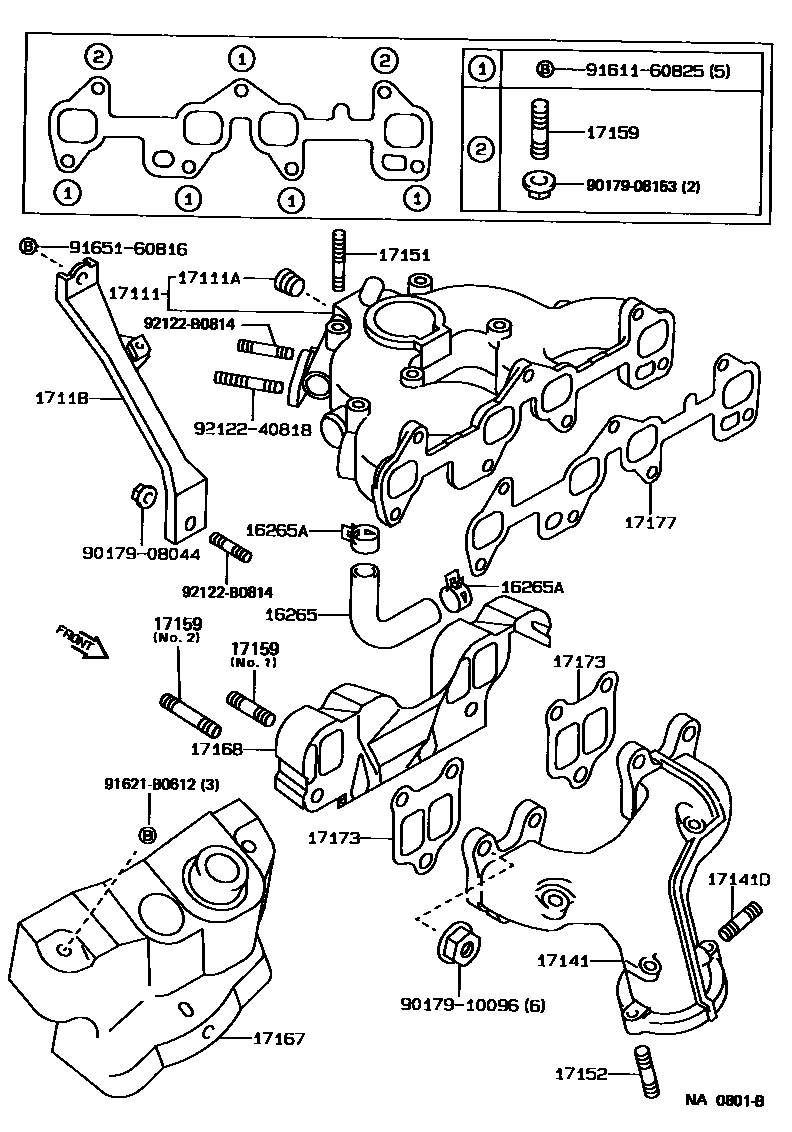

Toyota TERCEL — MANIFOLD
16265HOSE, INTAKE MANIFOLD WATER
16265ACLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
17111APLUG, NO.1
NO.1
NO.2
17141MANIFOLD, EXHAUST
CALIFORNIA SPEC
CALIFOLNIA SPEC
17141DBOLT, STUD(FOR OXYGEN SENSOR)
17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
EXHAUST MANIFOLD,NO.1
EXHAUST MANIFOLD,NO.2
INTAKE MANIFOLD
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
9017908044
main90179-08044
9017908153
main90179-08153
9017910096
main90179-10096
9161160825
main91611-60825
91621B0612
main91621-B0612
9165160816
main91651-60816
9212240818
main92122-40818
92122B0814
main92122-B0814
22 parts on this diagram · 2 diagrams in section
MANIFOLD for Toyota TERCEL
This section contains 23 genuine Toyota parts for the MANIFOLD system of the Toyota TERCEL. Key components include: HOSE, INTAKE MANIFOLD WATER, CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER), MANIFOLD, INTAKE, PLUG, NO.1, STAY, MANIFOLD.
