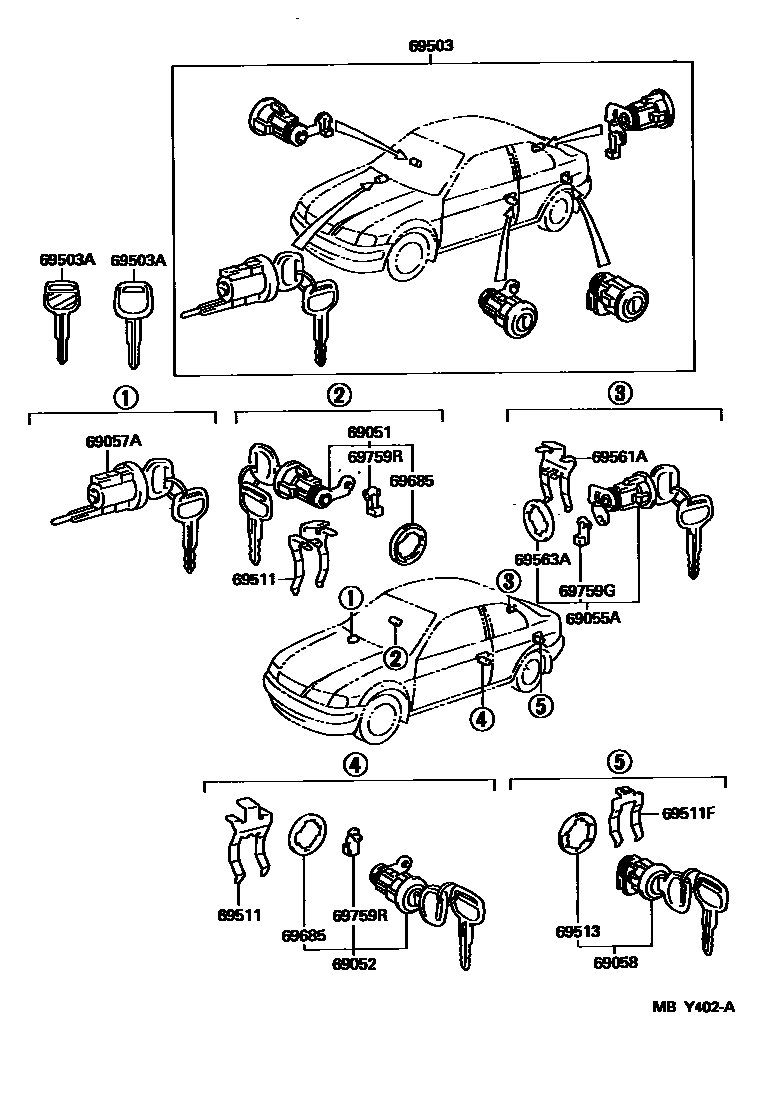

Toyota TERCEL — LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-16260i199502-199608

main69051-16300i199712

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-16240i199502-199608

main69052-16280i199712

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-16410i199409-199502

main69055-16420i199409-199502

W(BACK DOOR & TRUNK OPENER)

main69055-16500i199712

main69055-16510i199712

W(BACK DOOR & TRUNK OPENER)

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-16140i199409-199502

main69057-16250i199712

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-16180i199409-199502

69503CYLINDER SET, LOCK

main69005-16890i199409-199712

main69005-1G010i199409-199502

W(BACK DOOR & TRUNK OPENER)

main69005-1G220i199712

main69005-1G230i199712

W(BACK DOOR & TRUNK OPENER)

69503AKEY, BLANK

main90999-00166i199608

MASTER KEY,W(*68)

main90999-00167×4i199409-199502

MASTER KEY; MASTER KEY,W(BACK DOOR & TRUNK OPENER)

main90999-00168i199502-199608

SUB KEY

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-16030×2i199409-199502

69511FRETAINER, FRONT DOOR LOCK CYLINDER

main69511-32010i199409-199502

69513PAD, FUEL FILLER LID LOCK CYLINDER

main69513-87001i199409-199502

69561ARETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER

main69511-16030i199409-199502

69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

main69563-16050i199409-199502

main69563-16060i199712

69685PAD, LOCK CYLINDER

main69563-16050×2i199409-199502

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-24080i199409-199502

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-30040i199608

BEIGE

main69759-30050i199409-199502

GREEN

15 parts on this diagram · 2 diagrams in section

LOCK CYLINDER SET for Toyota TERCEL

This section contains 15 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota TERCEL. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK, CYLINDER & KEY SET, FUEL FILLER LID.
