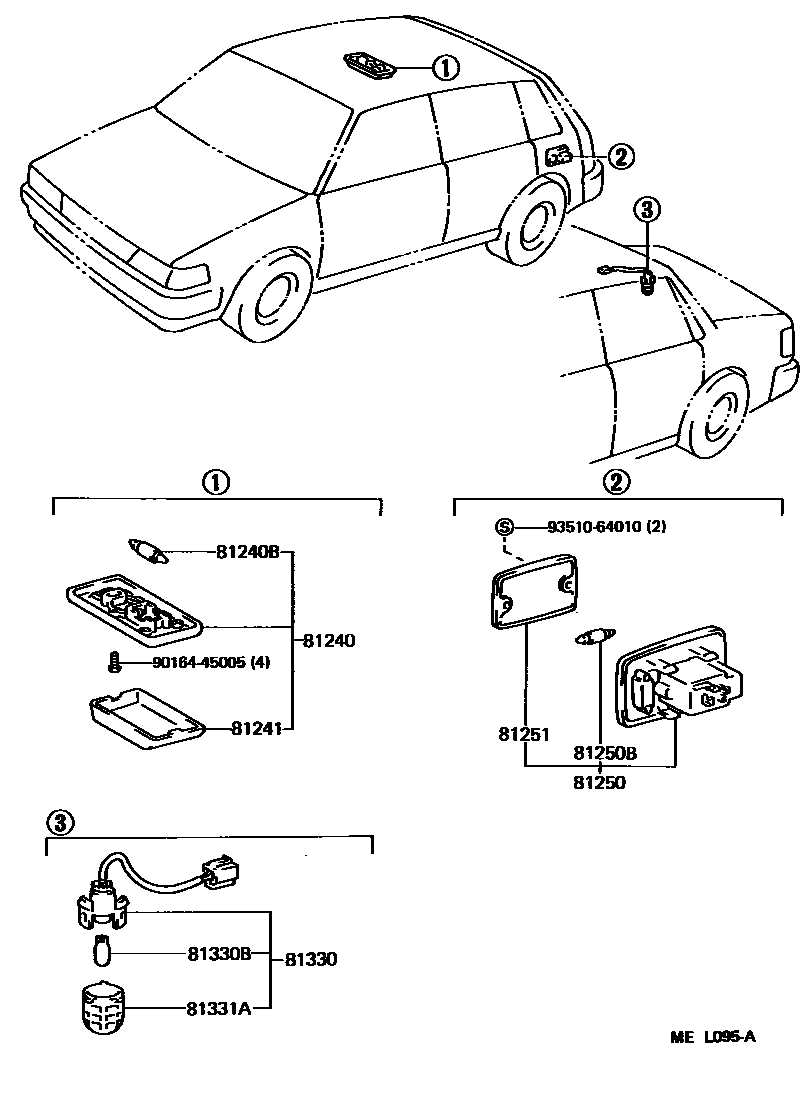

Toyota TERCEL — INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-22081-04iEL31..DX,STD198808-199009

DARK BLUE,TRIM8#

main81240-22081-13iEL31198808-199009

SHADOW GRAY,TRIM2#

main81240-22081-15iEL31..DX,STD198808-199009

BEIGE GRAY,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main99132-12100iEL31198808-199009

12V 10W

81241LENS, ROOM LAMP, NO.1

main81241-20060iEL31198808-199009

81250LAMP ASSY, ROOM, NO.2

main81250-16020-01iEL31..3DS,5DS198808-199009

NEW BLACK,TRIM2#

main81250-16020-04iEL31..(3DS,5DS)..(DX,STD)198808-199009

BLUE,TRIM8#

main81250-16020-16iEL31..(3DS,5DS)..(DX,STD)198808-199009

BROWN,TRIM4#

81250BBULB, ROOM LAMP, NO.2

main99132-13050iEL31..3DS,5DS198808-199009

12V 5W

81251LENS, ROOM LAMP, NO.2

main81251-14030iEL31..3DS,5DS198808-199009

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-22031iEL31..2DS198808-199009

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iEL31..2DS198808-199009

12V 3.8W

81331ACOVER, LUGGAGE COMPARTMENT LAMP

main81331-22030iEL31..2DS198808-199009

9016445005

main90164-45005

9351064010

main93510-64010

11 parts on this diagram · 1 diagram in section
