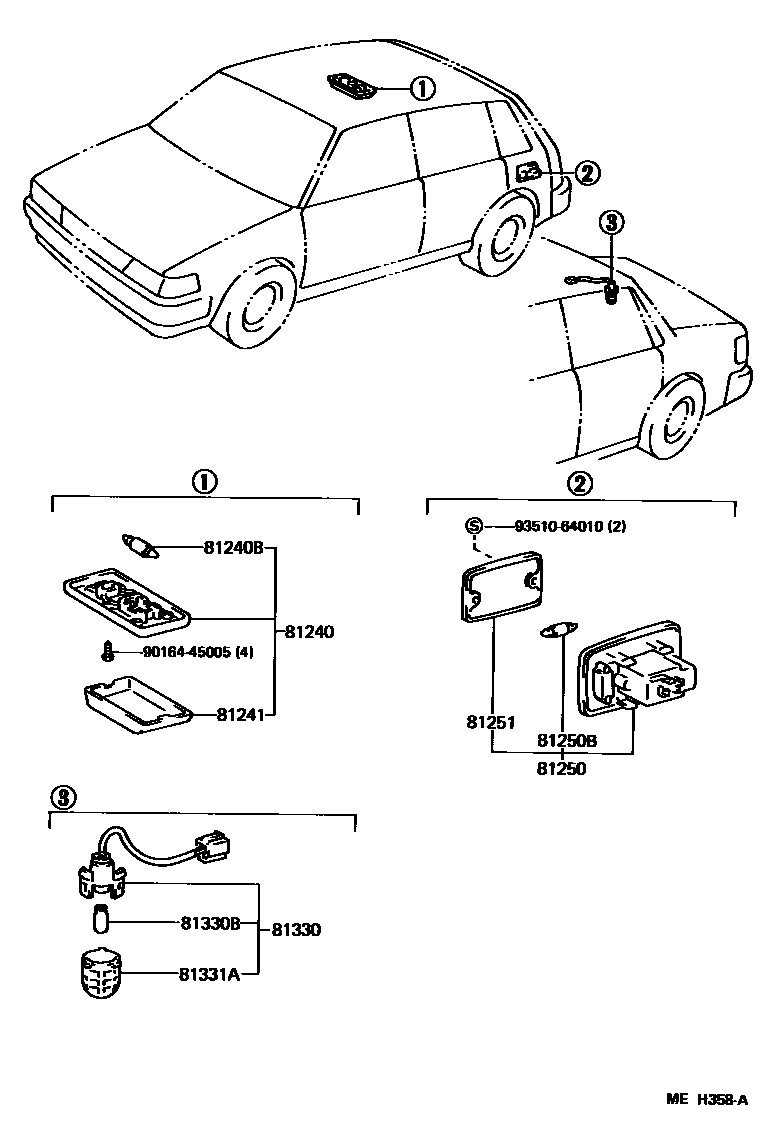

Toyota TERCEL — INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-22081-18iEL31198608-198808

IVORY,IVORY

81240BBULB, ROOM LAMP, NO.1

main99132-12100iEL31198608-198808

12V 10W,12V 10W

81241LENS, ROOM LAMP, NO.1

main81241-20060iEL31198608-198808

81250LAMP ASSY, ROOM, NO.2

main81250-16020-01iEL31198608-198808

BLACK,NEW BLACK,TRIM2#

main81250-16020-04iEL31198608-198808

BLUE,BLUE,TRIM8#

main81250-16020-05iEL31198608-198808

BEIGE,DARK BEIGE,TRIM4#

81250BBULB, ROOM LAMP, NO.2

main99132-13050iEL31198608-198808

12V 5W,12V 5W

81251LENS, ROOM LAMP, NO.2

main81251-14030iEL31198608-198808

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-22030iEL31..2DS198701-198703

main81330-22031iEL31..2DS198703-198808

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iEL31..2DS198703-198808

12V 3.8W

main99132-12050iEL31..2DS198701-198703

12V 5W

81331ACOVER, LUGGAGE COMPARTMENT LAMP

main81331-22030iEL31..2DS198701-198808

9016445005

main90164-45005

9351064010

main93510-64010

11 parts on this diagram · 1 diagram in section
