Toyota TERCEL — INSTRUMENT PANEL & GLOVE COMPARTMENT

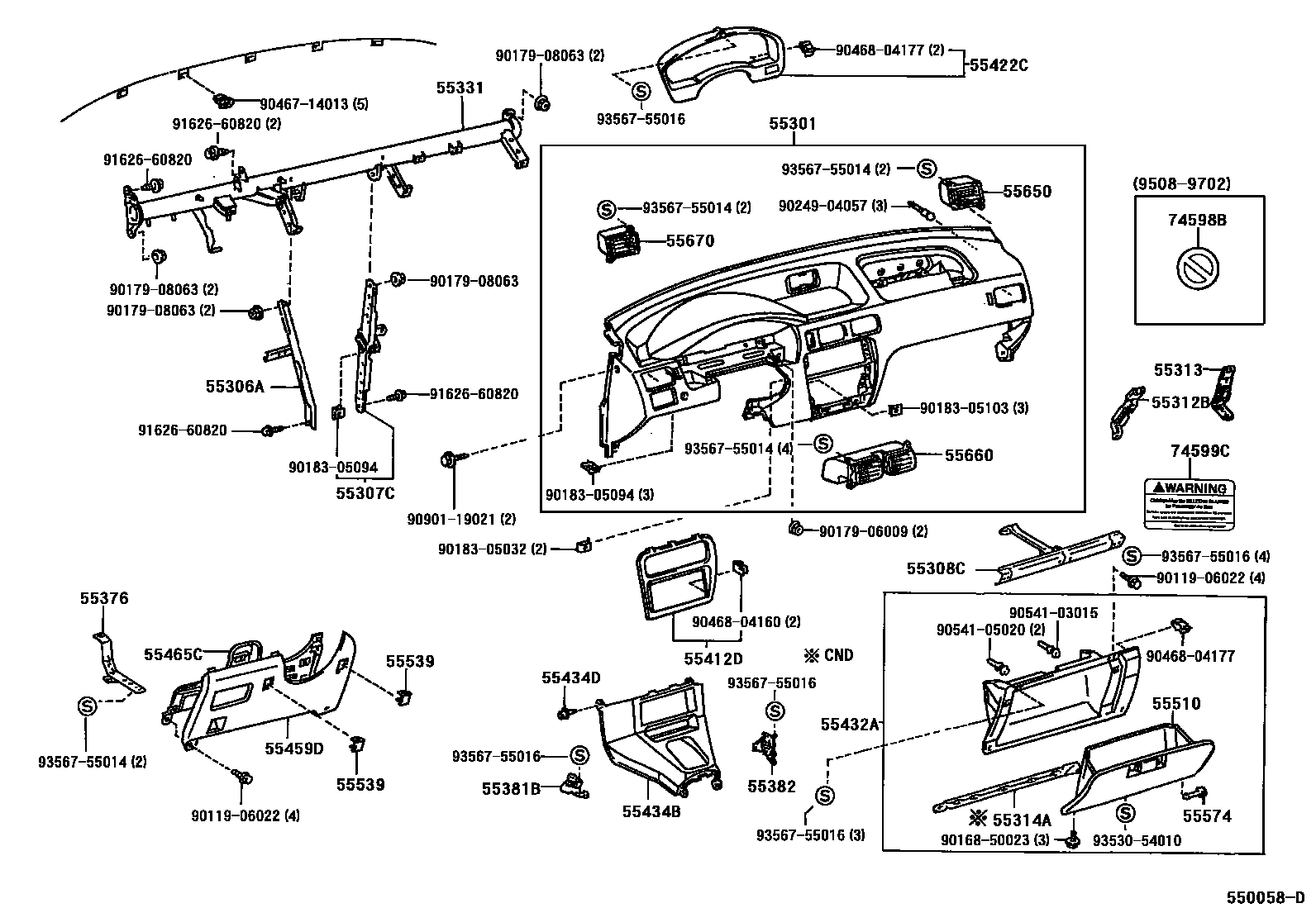

Parts diagram

55301PANEL SUB-ASSY, INSTRUMENT

main55301-16090-B0i199409-199608

BLUISH GRAY,TRIM1#

main55301-16090-E0i199409-199608

OAK,TRIM4#

main55301-16091-B3i199608-199712

SHADOW GRAY,TRIM1#

main55301-16091-E1i199608-199712

OAK,TRIM4#

main55301-16170-B1i199712

W(*80,DRIVER SIDE & PASSENGER SIDE),SHADOW GRAY,TRIM1#

main55301-16170-E0i199712

W(*80,DRIVER SIDE & PASSENGER SIDE),OAK,TRIM4#

main55301-16180-B1i199712

SHADOW GRAY,TRIM1#

main55301-16180-E0i199712

OAK,TRIM4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-16100i199409-199712

main55306-16120i199712-199805

main55306-16130i199805

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-16100i199409

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-16070i199409

55312BPANEL, INSTRUMENT, LOWER RH

main55312-16030i199409

55313PANEL, INSTRUMENT, LOWER LH

main55313-16010i199409

55314APANEL, INSTRUMENT, LOWER CENTER

main55314-16010i199608

main55314-16020i199409

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-16140i199409-199712

main55330-16220i199712

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-16050i199409

55381BBRACKET, FINISH PANEL MOUNTING, NO.1

main55381-16040i199409

55382BRACKET, FINISH PANEL MOUNTING, NO.2

main55382-16040i199409

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-16110i199409-199712

main55412-16130-B1i199712

SHADOW GRAY,TRIM1#

main55412-16130-E1i199712

OAK,TRIM4#

55422CPANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER

main55422-16070i199409-199712

main55422-16110-B0i199712

SHADOW GRAY,TRIM1#

main55422-16110-E0i199712

OAK,TRIM4#

55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH

main55045-16060-B0i199409-199608

BLUISH GRAY,TRIM1#

main55045-16060-B1i199608-199907

SHADOW GRAY,TRIM1#

main55045-16060-E0i199409-199907

OAK,TRIM4#

main55045-16070-B0i199409-199608

BLUISH GRAY,TRIM1#

main55045-16070-B1i199608-199907

SHADOW GRAY,TRIM1#

main55045-16070-E0i199409-199907

OAK,TRIM4#

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-16060-B0i199409-199608

BLUISH GRAY,TRIM1#

main55434-16060-B1i199608

SHADOW GRAY,TRIM1#

main55434-16060-E0i199409

OAK,TRIM4#

55434DCLIP, INSTRUMENT PANEL FINISH, LOWER CENTER

main90467-07071-B3×2i199409-199508

GRAY,TRIM1#

main90467-07071-B4×2i199508

SHADOW GRAY,TRIM1#

main90467-07071-E0×2i199409

OAK,TRIM4#

55459DCOVER, INSTRUMENT, LOWER LH

main55459-16040-B0i199409-199608

BLUISH GRAY,TRIM1#

main55459-16040-B1i199608-199712

SHADOW GRAY,TRIM1#

main55459-16040-E0i199409-199712

OAK,TRIM4#

main55459-16060-B1i199712

SHADOW GRAY,TRIM1#

main55459-16060-E1i199712

OAK,TRIM4#

55465CINSERT, INSTRUMENT PANEL LOWER PAD, LH

main55465-16030i199409

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-16120-B0i199409-199608

BLUISH GRAY,TRIM1#

main55550-16120-B1i199608

SHADOW GRAY,TRIM1#

main55550-16120-E0i199409

OAK,TRIM4#

main55550-16130-B0i199409-199608

BLUISH GRAY,TRIM1#

main55550-16130-B1i199608

SHADOW GRAY,TRIM1#

main55550-16130-E0i199409

OAK,TRIM4#

55539COVER, SPARE SWITCH HOLE

main55539-12130-B0×2i199508-199608

BLUISH GRAY,TRIM1#

main55539-12130-B1×2i199608

SHADOW GRAY,TRIM1#

main55539-12130-E3×2i199508

OAK,TRIM4#

main55539-20080-B1×2i199409-199508

GRAY,TRIM1#

main55539-20080-E0×2i199409-199508

OAK,TRIM4#

55574SHAFT, GLOVE COMPARTMENT DOOR HINGE

main55574-10010×2i199409

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-16080-B0i199409-199509

BLUISH GRAY,TRIM1#

main55650-16080-B2i199509-199712

GRAY,TRIM1#

main55650-16080-E0i199409-199712

OAK,TRIM4#

main55650-16100-B1i199712-199907

SHADOW GRAY,TRIM1#

main55650-16100-E0i199712-199907

OAK,TRIM4#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-16050-B0i199409-199509

BLUISH GRAY,TRIM1#

main55660-16050-B2i199509-199712

GRAY,TRIM1#

main55660-16050-E0i199409-199712

OAK,TRIM4#

main55660-16070-B1i199712

SHADOW GRAY,TRIM1#

main55660-16070-E0i199712

OAK,TRIM4#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-16050-B0i199409-199509

BLUISH GRAY,TRIM1#

main55670-16050-B2i199509-199712

GRAY,TRIM1#

main55670-16050-E0i199409-199712

OAK,TRIM4#

main55670-16070-B1i199712-199907

SHADOW GRAY,TRIM1#

main55670-16070-E0i199712-199907

OAK,TRIM4#

74598BLABEL, PASSENGER AIRBAG CAUTION

main74598-20010i199508-199702

74599CLABEL, DRIVER & PASSENGER AIRBAG INFORMATION

main74599-50010i199702

9011906022

main90119-06022

9016850023

main90168-50023

9017906009

main90179-06009

9017908063

main90179-08063

9018305032

main90183-05032

9018305094

main90183-05094

9018305103

main90183-05103

9024904057

main90249-04057

9046714013

main90467-14013

9046804160

main90468-04160

9046804177

main90468-04177

9054103015

main90541-03015

9054105020

main90541-05020

9090119021

main90901-19021

9162660820

main91626-60820

9353054010

main93530-54010

9356755014

main93567-55014

9356755016

main93567-55016

44 parts on this diagram · 2 diagrams in section

INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota TERCEL

This section contains 72 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota TERCEL. Key components include: DO0R ASSY, AIRBAG PASSENGER, PANEL SUB-ASSY, INSTRUMENT, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2, BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER.
