Toyota TERCEL — INSTRUMENT PANEL & GLOVE COMPARTMENT

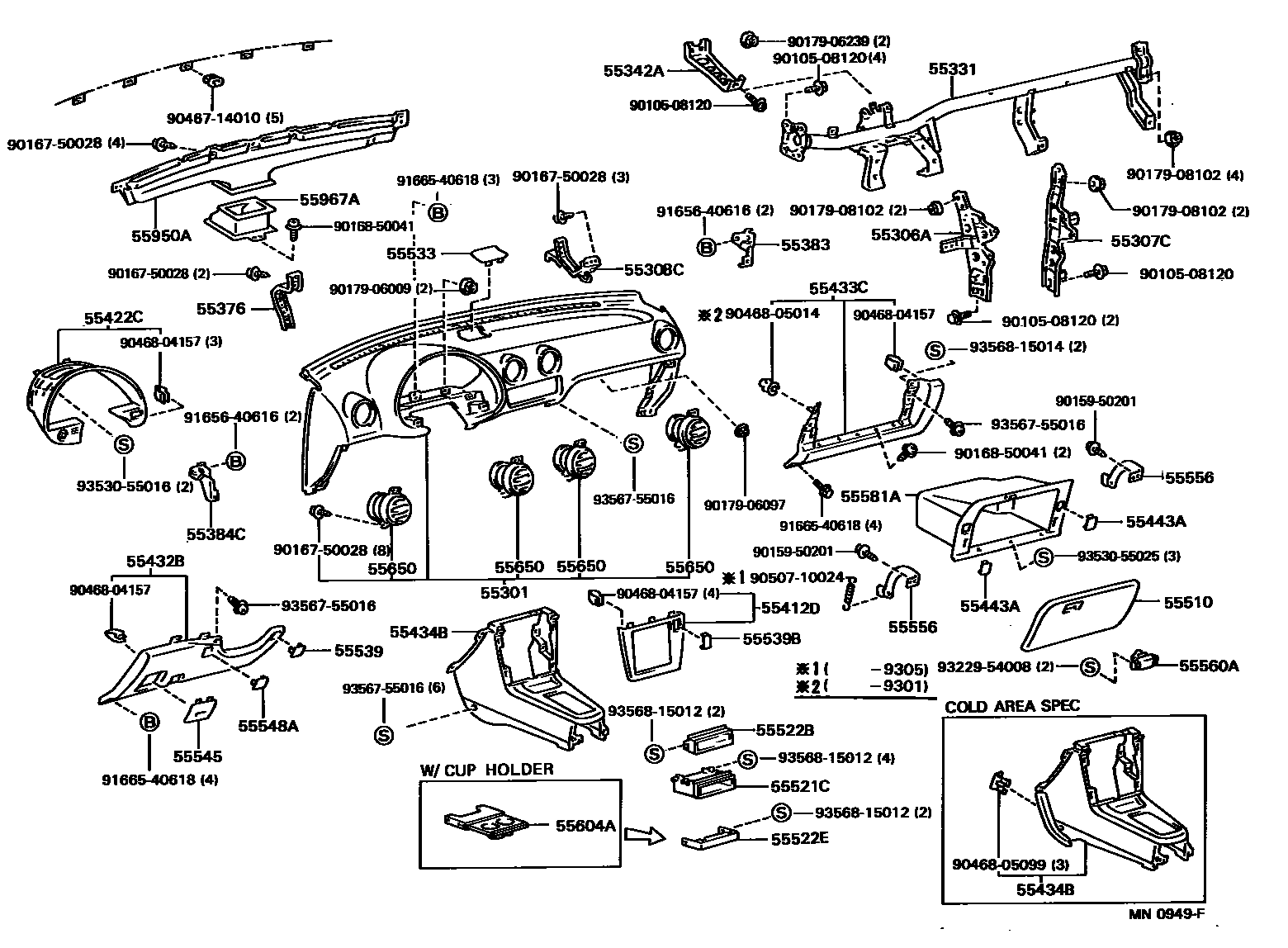

Parts diagram
55301PANEL SUB-ASSY, INSTRUMENT
main55301-16060-01i199009-199208
BLACK,TRIM2#
main55301-16060-04i199009-199208
GRAYISH BLUE,TRIM8#
main55301-16060-22i199208-199409
BLACK,TRIM2#
main55301-16060-W4i199208-199409
EISEN BLUE,TRIM8#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
main55306-16090i199009-199409
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
main55307-16090i199009-199409
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
main55308-16050i199009-199409
55331REINFORCEMENT, INSTRUMENT PANEL
main55330-16080i199009-199409
55342ABRACE, INSTRUMENT PANEL TO COWL, NO.2
main55342-16030i199208-199409
55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
main55376-16040i199009-199409
55383BRACKET, FINISH PANEL MOUNTING, NO.3
main55383-16010i199009-199409
55384CBRACKET, FINISH PANEL MOUNTING, NO.4
main55384-16020i199009-199409
55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER
main55412-16100-01i199009-199208
BLACK,TRIM2#
main55412-16100-04i199009-199208
GRAYISH BLUE,TRIM8#
main55412-16100-22i199208-199409
BLACK,TRIM2#
main55412-16100-W4i199208-199409
EISEN BLUE,TRIM8#
55422CPANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER
main55422-16030i199009-199409
55432BPANEL, INSTRUMENT PANEL FINISH, LOWER
main55046-16020-01i199009-199208
BLACK,TRIM2#
main55046-16020-04i199009-199208
GRAYISH BLUE,TRIM8#
main55046-16020-22i199208-199409
BLACK,TRIM2#
main55046-16020-W4i199208-199409
EISEN BLUE,TRIM8#
main55046-16040-01i199009-199208
BLACK,TRIM2#
main55046-16040-04i199009-199208
GRAYISH BLUE,TRIM8#
main55046-16040-22i199208-199409
BLACK,TRIM2#
main55046-16040-W4i199208-199409
EISEN BLUE,TRIM8#
55433CPANEL, INSTRUMENT PANEL FINISH, LOWER LH
main55045-16030-01i199009-199208
BLACK,TRIM2#
main55045-16030-04i199009-199208
GRAYISH BLUE,TRIM8#
main55045-16030-C0i199208-199409
BLACK,TRIM2#
main55045-16030-J0i199208-199409
EISEN BLUE,TRIM8#
main55045-16040-01i199009-199108
BLACK,TRIM2#
main55045-16040-04i199009-199208
GRAYISH BLUE,TRIM8#
55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
main55434-16030-01i199009-199208
BLACK,TRIM2#
main55434-16030-04i199009-199208
GRAYISH BLUE,TRIM8#
main55434-16030-22i199208-199409
CHILE SPEC,BLACK,TRIM2#
main55434-16030-22i199208-199409
BLACK,TRIM2#
main55434-16030-W4i199208-199409
CHILE SPEC,EISEN BLUE,TRIM8#
main55434-16030-W4i199208-199409
EISEN BLUE,TRIM8#
main55434-16040-01i199009-199208
BLACK,TRIM2#
main55434-16040-01i199009-199208
COLD AREA PACKAGE,BLACK,TRIM2#
main55434-16040-04i199009-199208
COLD AREA PACKAGE,GRAYISH BLUE,TRIM8#
main55434-16040-04i199009-199208
GRAYISH BLUE,TRIM8#
main55434-16040-22i199208-199409
BLACK,TRIM2#
main55434-16040-22i199208-199409
COLD AREA PACKAGE,BLACK,TRIM2#
main55434-16040-W4i199208-199409
COLD AREA PACKAGE,EISEN BLUE,TRIM8#
main55434-16040-W4i199208-199409
EISEN BLUE,TRIM8#
55443ACOVER, INSTRUMENT PANEL BOX DOOR
main55443-16020-01i199009-199208
BLACK,TRIM2#
main55443-16020-04i199009-199208
GRAYISH BLUE,TRIM8#
main55443-16021i199208-199409
55510DOOR ASSY, GLOVE COMPARTMENT
main55550-16100-01i199009-199208
BLACK,TRIM2#
main55550-16100-04i199009-199208
GRAYISH BLUE,TRIM8#
main55550-16100-C0i199208-199409
BLACK,TRIM2#
main55550-16100-J0i199208-199409
EISEN BLUE,TRIM8#
55521CCOVER, STEREO OPENING
main55520-14050i199308-199409
W(RADIO)
main55521-16030i199009-199409
55522BCOVER, RADIO TUNER OPENING
main55522-32010i199009-199409
55522ECOVER, CUP HOLDER OPENING
main55522-16030i199009-199409
55533COVER, AUTO CLOCK HOLE
main55533-16030-01i199009-199208
BLACK,TRIM2#
main55533-16030-04i199009-199208
GRAYISH BLUE,TRIM8#
main55533-16030-22i199208-199409
BLACK,TRIM2#
main55533-16030-W4i199208-199409
EISEN BLUE,TRIM8#
55539COVER, SPARE SWITCH HOLE
main55539-16020-01i199009-199208
BLACK,TRIM2#
main55539-16020-04i199009-199208
GRAYISH BLUE,TRIM8#
main55539-16020-22i199208-199409
BLACK,TRIM2#
main55539-16020-W4i199208-199409
EISEN BLUE,TRIM8#
55539BCOVER, SPARE SWITCH HOLE, NO.2
main55539-16040-01i199009-199208
BLACK,TRIM2#
main55539-16040-04i199009-199208
GRAYISH BLUE,TRIM8#
main55539-16040-22i199208-199409
BLACK,TRIM2#
main55539-16040-W4i199208-199409
EISEN BLUE,TRIM8#
55545COVER, FUSE BOX OPENING
main55545-16140-01i199009-199012
BLACK,TRIM2#
main55545-16140-04i199009-199012
GRAYISH BLUE,TRIM8#
main55545-16150-01i199009-199208
BLACK,TRIM2#
main55545-16150-04i199009-199208
GRAYISH BLUE,TRIM8#
main55545-16151-22i199208-199409
BLACK,TRIM2#
main55545-16151-W4i199208-199409
EISEN BLUE,TRIM8#
55548ACOVER, INSTRUMENT PANEL HOLE
main55548-16040-01i199009-199208
BLACK,TRIM2#
main55548-16040-04i199009-199208
GRAYISH BLUE,TRIM8#
main55548-16040-22i199208-199409
BLACK,TRIM2#
main55548-16040-W4i199208-199409
EISEN BLUE,TRIM8#
55556ARM, GLOVE COMPARTMENT DOOR CHECK
main55556-16030i199009-199409
55560ALOCK ASSY, GLOVE COMPARTMENT DOOR
main55560-16060-01i199009-199208
BLACK,TRIM2#
main55560-16060-04i199009-199208
GRAYISH BLUE,TRIM8#
main55560-16060-22i199208-199409
BLACK,TRIM2#
main55560-16060-W4i199208-199409
EISEN BLUE,TRIM8#
55581ACOMPARTMENT, GLOVE
main55581-16020-01i199009-199208
BLACK,TRIM2#
main55581-16020-04i199009-199208
GRAYISH BLUE,TRIM8#
main55581-16020-C0i199208-199409
BLACK,TRIM2#
main55581-16020-C0i199208-199409
BLACK,TRIM2#,8#
55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP
main55604-16030i199009-199208
main55604-16031i199208-199305
main55604-16032i199305-199409
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
main55650-16070-01i199009-199208
BLACK,TRIM2#
main55650-16070-04i199009-199208
GRAYISH BLUE,TRIM8#
main55650-16070-22i199208-199404
BLACK,TRIM2#
main55650-16070-W4i199208-199404
EISEN BLUE,TRIM8#
main55650-16071-22i199404-199409
BLACK,TRIM2#
main55650-16071-W4i199404-199409
EISEN BLUE,TRIM8#
55950ANOZZLE ASSY, DEFROSTER
main55950-16050i199009-199409
55967ANOZZLE, DEFROSTER, LOWER
main55967-16030i199009-199409
9010508120
main90105-08120
9015950201
main90159-50201
9016750028
main90167-50028
9016850041
main90168-50041
9017906009
main90179-06009
9017906097
main90179-06097
9017906239
main90179-06239
9017908102
main90179-08102
9046714010
main90467-14010
9046804157
main90468-04157
9046805014
main90468-05014
9046805099
main90468-05099
9050710024
main90507-10024
9165640616
main91656-40616
9166540618
main91665-40618
9322954008
main93229-54008
9353055016
main93530-55016
9353055025
main93530-55025
9356755016
main93567-55016
9356815012
main93568-15012
9356815014
main93568-15014

52 parts on this diagram · 1 diagram in section

INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota TERCEL

This section contains 52 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota TERCEL. Key components include: PANEL SUB-ASSY, INSTRUMENT, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2, BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER, REINFORCEMENT, INSTRUMENT PANEL.
