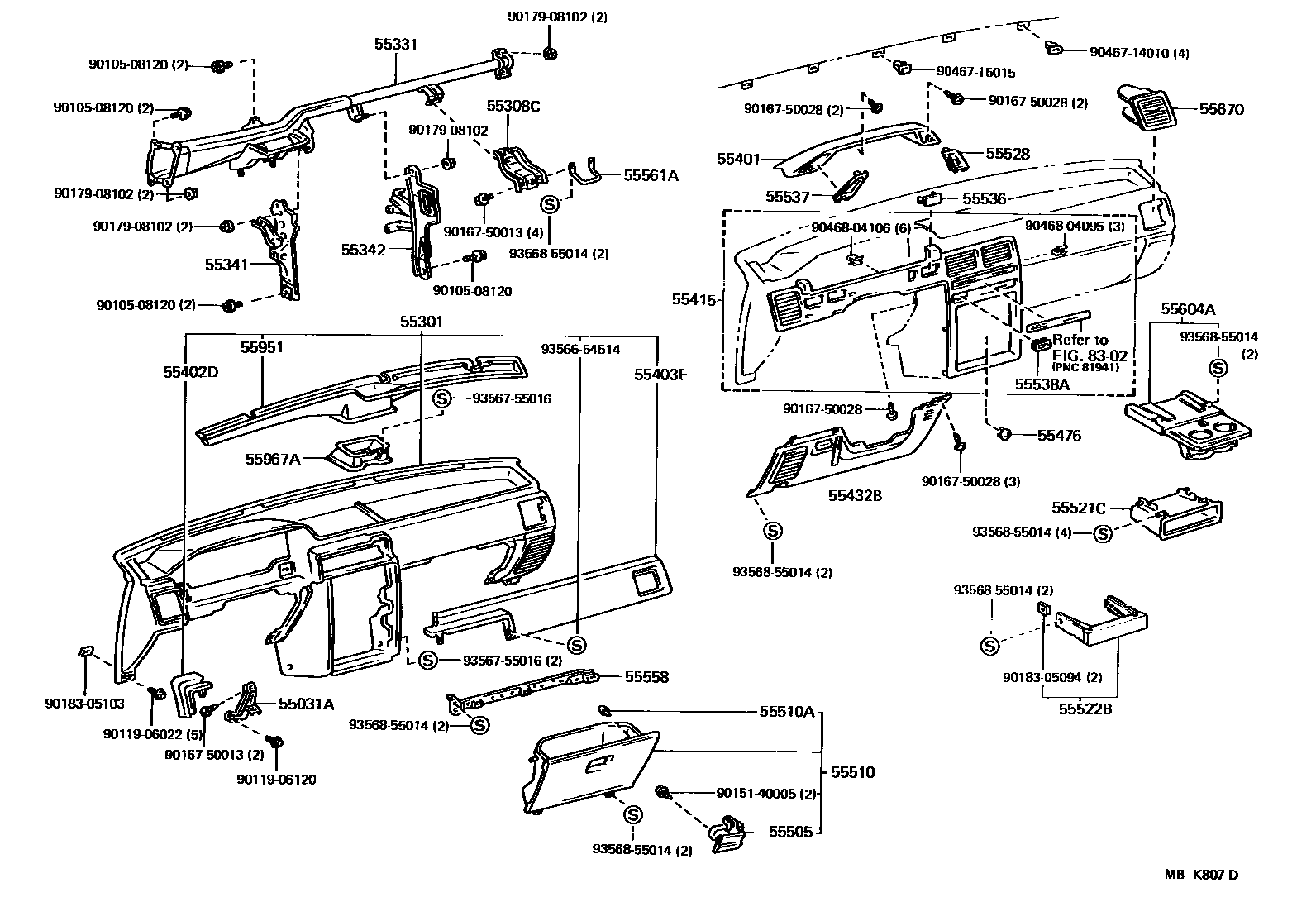

Toyota TERCEL — INSTRUMENT PANEL & GLOVE COMPARTMENT
55031ASTAY SUB-ASSY, INSTRUMENT PANEL, NO.1
55301PANEL SUB-ASSY, INSTRUMENT
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55331REINFORCEMENT, INSTRUMENT PANEL
55341BRACE, INSTRUMENT PANEL, NO.1
55342BRACE, INSTRUMENT PANEL, NO.2
55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
55402DPAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1
55403EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.2
55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER
55432BPANEL, INSTRUMENT PANEL FINISH, LOWER
55476COVER, CIGARETTE LIGHTER HOLE
55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR
55510DOOR ASSY, GLOVE COMPARTMENT
55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)
55522BCOVER, RADIO TUNER OPENING
55528COVER, AUTO DRIVE OPENING
55536COVER, REAR WINDOW WIPER SWITCH HOLE
55537COVER, REAR WINDOW DEFOGGER SWITCH HOLE
55538ACOVER, COOLER SWITCH HOLE
55558REINFORCEMENT, GLOVE COMPARTMENT DOOR
55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK
55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
55951NOZZLE, DEFROSTER, FRONT
55967ANOZZLE, DEFROSTER, LOWER
8302INDICATOR
9010508120
main90105-08120
9011906022
main90119-06022
9011906120
main90119-06120
9015140005
main90151-40005
9016750013
main90167-50013
9016750028
main90167-50028
9017908102
main90179-08102
9018305094
main90183-05094
9018305103
main90183-05103
9046714010
main90467-14010
9046715015
main90467-15015
9046804095
main90468-04095
9046804106
main90468-04106
9356654514
main93566-54514
9356755016
main93567-55016
9356855014
main93568-55014
44 parts on this diagram · 1 diagram in section
INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota TERCEL
This section contains 44 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota TERCEL. Key components include: STAY SUB-ASSY, INSTRUMENT PANEL, NO.1, PANEL SUB-ASSY, INSTRUMENT, BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER, REINFORCEMENT, INSTRUMENT PANEL, BRACE, INSTRUMENT PANEL, NO.1.
