Toyota TERCEL — INSTRUMENT PANEL & GLOVE COMPARTMENT

55031ASTAY SUB-ASSY, INSTRUMENT PANEL, NO.1

main55031-16020i198808-199009

55301PANEL SUB-ASSY, INSTRUMENT

main55301-16020-01i198808-199009

BLACK,TRIM2#

main55301-16020-04i198808-199009

BLUE,TRIM8#

main55301-16020-06i198808-199009

BROWN,TRIM4#

main55301-16030-01i198908-199009

NEW BLACK,TRIM2#

main55301-16030-04i198908-199009

BLUE,TRIM8#

main55301-16030-06i198908-199009

BROWN,TRIM4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-16060i198808-199009

main55306-16070i198908-199009

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-16060i198808-199009

main55307-16070i198908-199009

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-16010i198808-199009

main55308-16020i198908-199009

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-16040i198808-198908

main55330-16050i198908-199009

main55330-16060i198908-199009

55402DPAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1

main55402-16020-01i198808-199009

BLACK,TRIM2#

main55402-16020-04i198808-199009

BLUE,TRIM8#

main55402-16020-06i198808-199009

BROWN,TRIM4#

55403EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.2

main55403-16040-01i198808-199009

BLACK,TRIM2#

main55403-16040-04i198808-199009

BLUE,TRIM8#

main55403-16040-06i198808-199009

BROWN,TRIM4#

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-16100-01i198808-199009

BLACK,TRIM2#

main55404-16100-04i198808-199009

BLUE,TRIM8#

main55404-16100-06i198808-199009

BROWN,TRIM4#

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-16071i198808-198908

W(TILT STEERING)

main55405-16081i198808-199009

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-16080-01i198808-199009

BLACK,TRIM2#

main55432-16080-04i198808-199009

BLUE,TRIM8#

main55432-16080-06i198808-199009

BROWN,TRIM4#

main55432-16090-01i198808-198908

W(TILT STEERING),BLACK,TRIM2#

main55432-16090-04i198808-198908

W(TILT STEERING),BLUE,TRIM8#

main55432-16090-06i198808-198908

W(TILT STEERING),BROWN,TRIM4#

55477DCOVER, CIGARETTE LIGHTER HOLE

main55477-16050i198808-199009

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-16070-01i198808-199009

BLACK,TRIM2#

main55550-16070-04i198808-199009

BLUE,TRIM8#

main55550-16070-06i198808-199009

BROWN,TRIM4#

main55550-16080-01i198908-199009

NEW BLACK,TRIM2#

main55550-16080-04i198908-199009

BLUE,TRIM8#

main55550-16080-06i198908-199009

BROWN,TRIM4#

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015i198808-199009

55521CCOVER, STEREO OPENING

main55521-16030i198808-199009

W(RADIO)

main55521-16040i198808-199009

55522BCOVER, RADIO TUNER OPENING

main55522-16030i198808-199009

55528COVER, AUTO DRIVE OPENING

main55528-16010i198808-199009

55537BCOVER, REAR DEFOGGER SWITCH HOLE

main55537-16030i198808-199009

55538ACOVER, COOLER SWITCH HOLE

main55538-16020i198808-199009

55539CCOVER, SPARE SWITCH HOLE

main55539-32010i198808-199009

55558REINFORCEMENT, GLOVE COMPARTMENT DOOR

main55558-16050i198808-199009

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-16030-01i198908-199009

NEW BLACK,TRIM2#

main55560-16030-04i198908-199009

BLUE,TRIM8#

main55560-16030-06i198908-199009

BROWN,TRIM4#

main55560-16050-01i198808-199009

NEW BLACK,TRIM2#

main55560-16050-04i198808-199009

BLUE,TRIM8#

main55560-16050-06i198808-199009

BROWN,TRIM4#

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-12040i198808-199009

55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP

main55604-19015i198808-199009

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-16030-01i198808-199009

BLACK,TRIM2#

main55670-16030-04i198808-199009

BLUE,TRIM8#

main55670-16030-06i198808-199009

BROWN,TRIM4#

55951NOZZLE, DEFROSTER, FRONT

main55951-16070i198808-199009

55967ANOZZLE, DEFROSTER, LOWER

main55967-16020i198808-199009

8302INDICATOR

→ Go to FIG 83-02

9010508120

main90105-08120

9011906120

main90119-06120

9011906159

main90119-06159

9015140005

main90151-40005

9016750013

main90167-50013

9016750028

main90167-50028

9017908102

main90179-08102

9018305094

main90183-05094

9018305103

main90183-05103

9046714010

main90467-14010

9046715015

main90467-15015

9046804095

main90468-04095

9046804106

main90468-04106

9046804687

main90468-04687

9356654514

main93566-54514

9356755014

main93567-55014

9356755016

main93567-55016

9356855014

main93568-55014

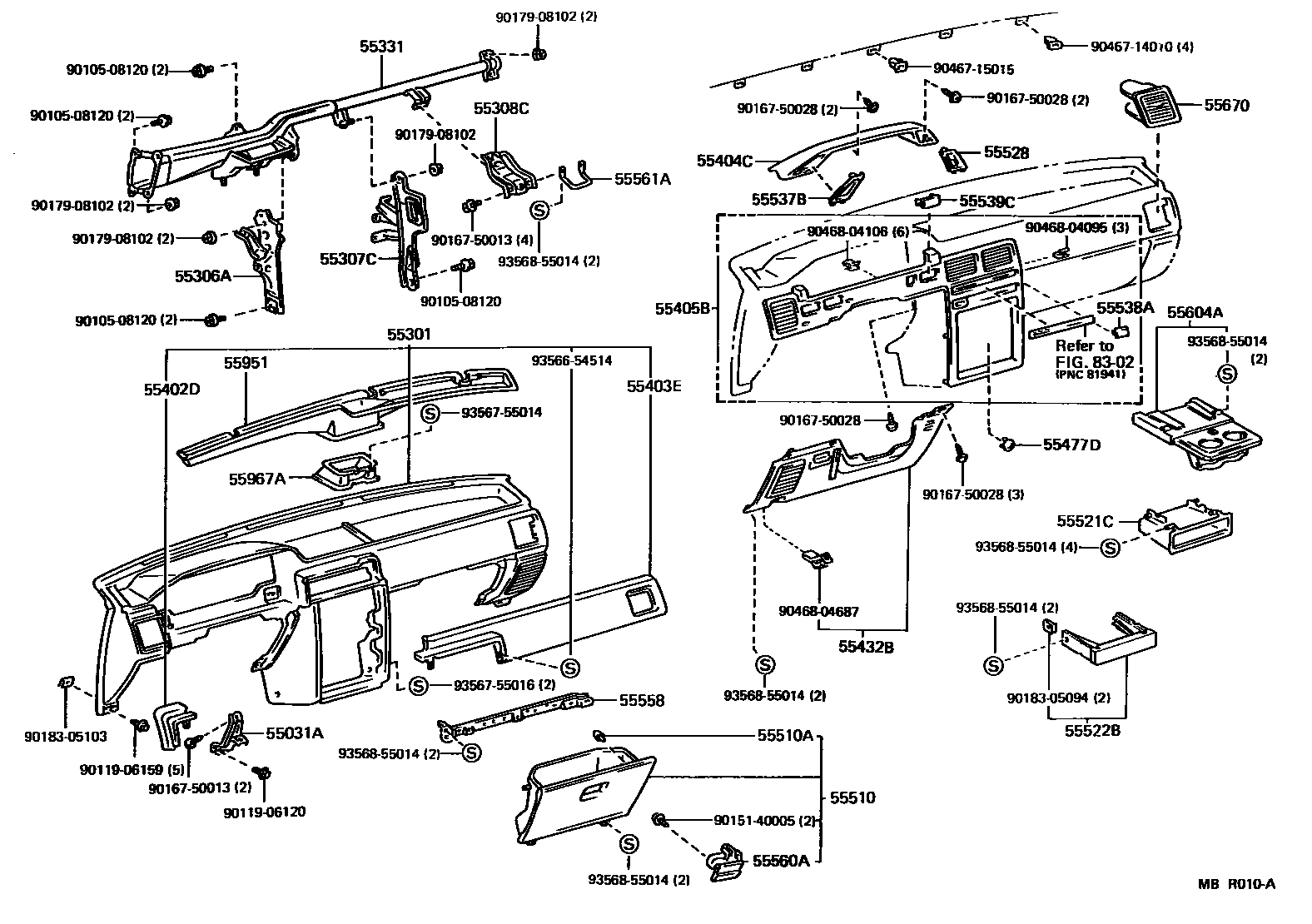

46 parts on this diagram · 2 diagrams in section

INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota TERCEL

This section contains 67 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota TERCEL. Key components include: STAY SUB-ASSY, INSTRUMENT PANEL, NO.1, PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER LH, PANEL SUB-ASSY, INSTRUMENT, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2.
