Toyota TERCEL — INDICATOR

3312

81850LAMP ASSY, INDICATOR

main81850-16050iAL25..6F198208-198408

LH

main81850-16060iAL21198408-198708

RH

main81850-16090iAL25..CND;AL25..DLX..USA198208-198408

RH,W/O CLINOMETER

main81850-16130iAL25..3FC198402-198801

LH

main81850-16180iAL25..6F198408-198801

LH

81930BBULB, HEATER CONTROL INDICATOR LAMP

main90981-11014iAL2#198208-198801

14V 1.4W,12V 1.4W

81942SHEET, HEATER CONTROL NAME

main81942-16030iAL2#198208-198408

main81942-16031iAL2#198408-198608

main81942-16032iAL2#198608-198801

main81942-16050iAL2#..USA198208-198408

W/BOOST VENTILATOR

main81942-16051iAL2#..USA198408-198608

W/BOOST VENTILATOR

sub81942-16052

main81942-16060iAL21..4F..3AC198408-198608

W/COOLER

main81942-16061iAL2#198608-198801

W/COOLER

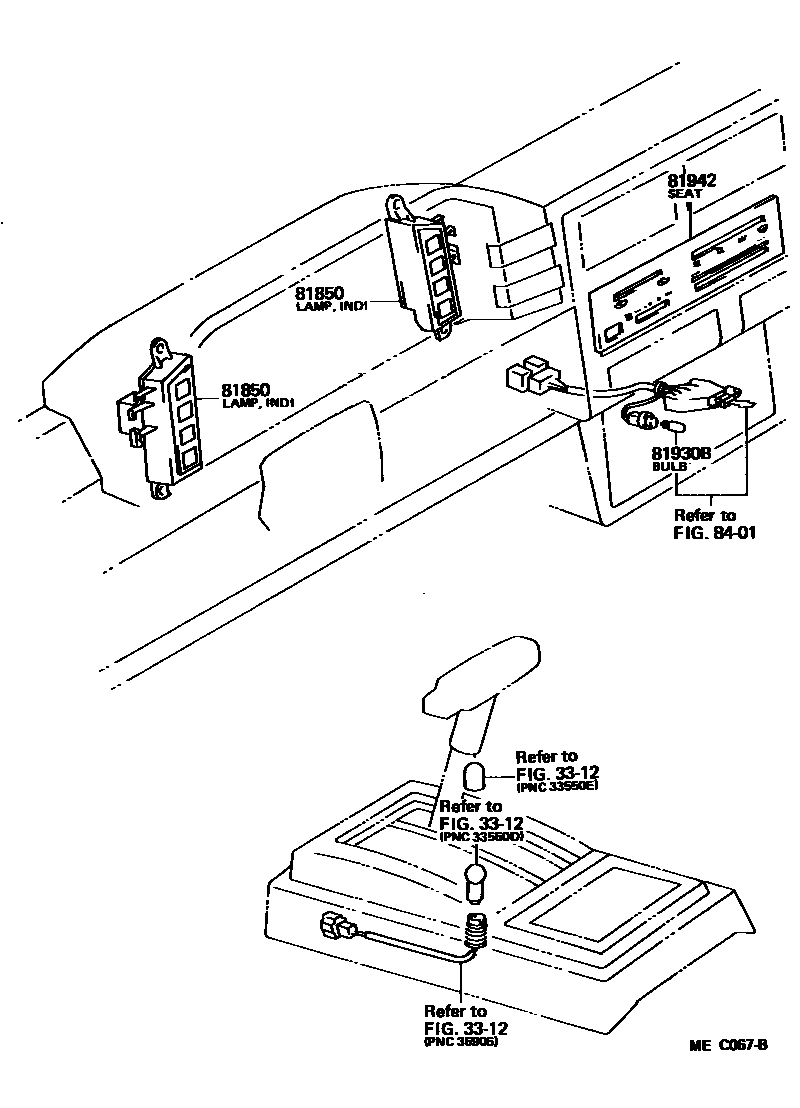

8401

5 parts on this diagram · 1 diagram in section
