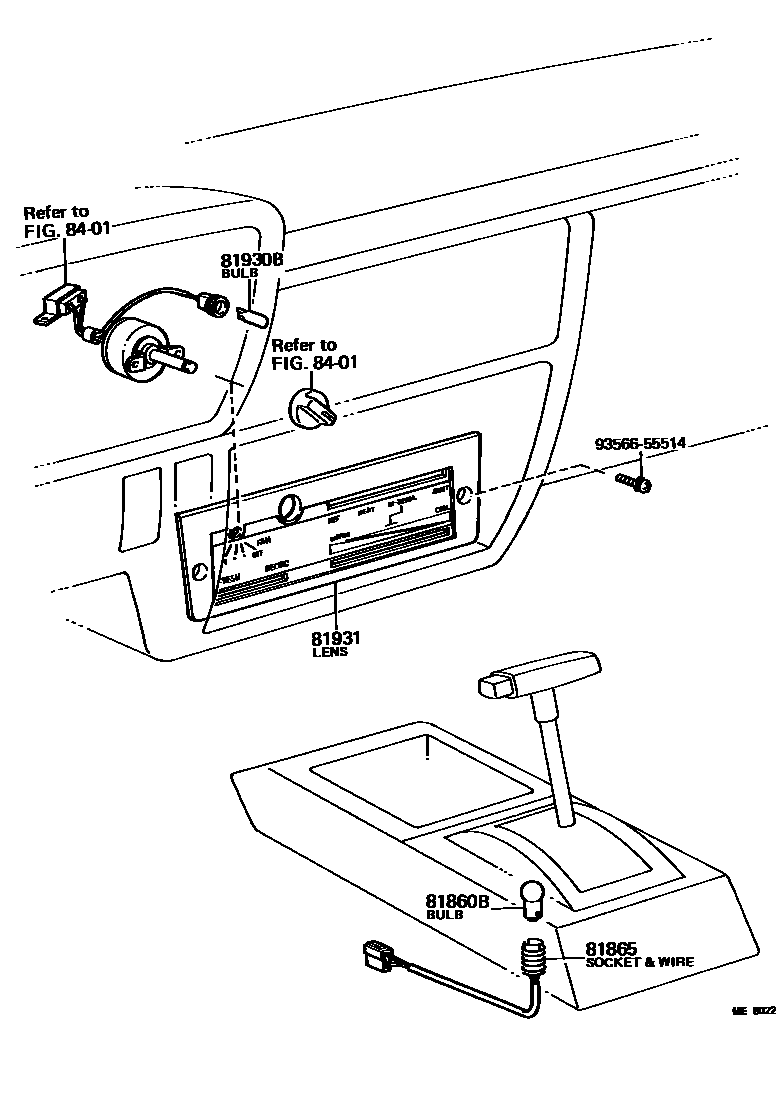

Toyota TERCEL — INDICATOR

81860BBULB, TRANSMISSION INDICATOR LAMP

main99132-11017iAL1#..3FC197908-198207

12V 1.7W

81865SOCKET AND WIRE, TRANSMISSION INDICATOR LAMP

main35906-12030iAL1#..3FC197908-198207

81930BBULB, HEATER CONTROL INDICATOR LAMP

main90981-11014iAL1#197908-198207

14V 1.4W,12V 1.4W

81931LENS, HEATER CONTROL INDICATOR

main81943-16020iAL1#197908-198008

W/HEATER

main81943-16021iAL12198008-198207

W/HEATER

main81943-16040iAL10..USA197908-198008

W/BOOST VENTILATOR

main81943-16041iAL12..USA198008-198207

W/BOOST VENTILATOR

8401

9356655514

main93566-55514

6 parts on this diagram · 1 diagram in section
