Toyota TERCEL — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01192i199409

K16TR11

19500COIL ASSY, IGNITION

main90919-02213i199409

19539HOLDER, RESISTIVE CODE, NO.4

main19539-11030i199409

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-15428i199409

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-15429i199409

19941ACLAMP(FOR RESISTIVE CORD)

main90469-05006i199409-199608

9010506234

main90105-06234

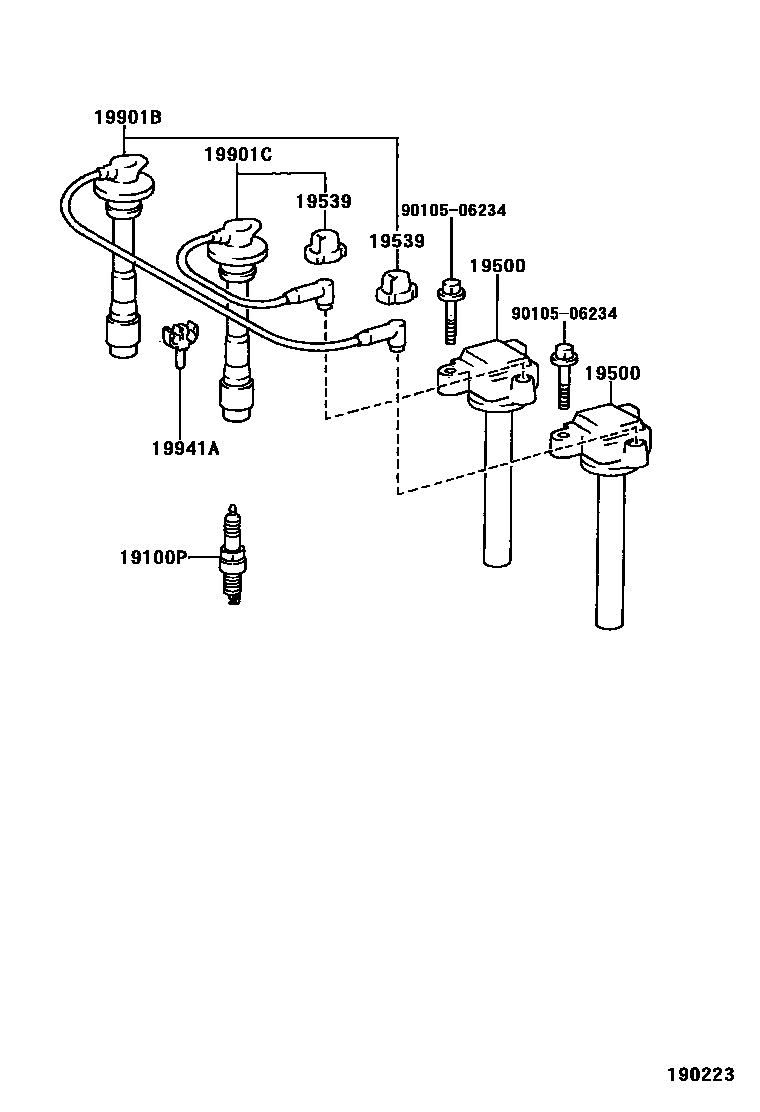

7 parts on this diagram · 1 diagram in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota TERCEL

This section contains 7 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota TERCEL. Key components include: PLUG, SPARK, COIL ASSY, IGNITION, HOLDER, RESISTIVE CODE, NO.4, CORD, SPARK PLUG RESISTIVE, NO.1, CORD, SPARK PLUG RESISTIVE, NO.2.
