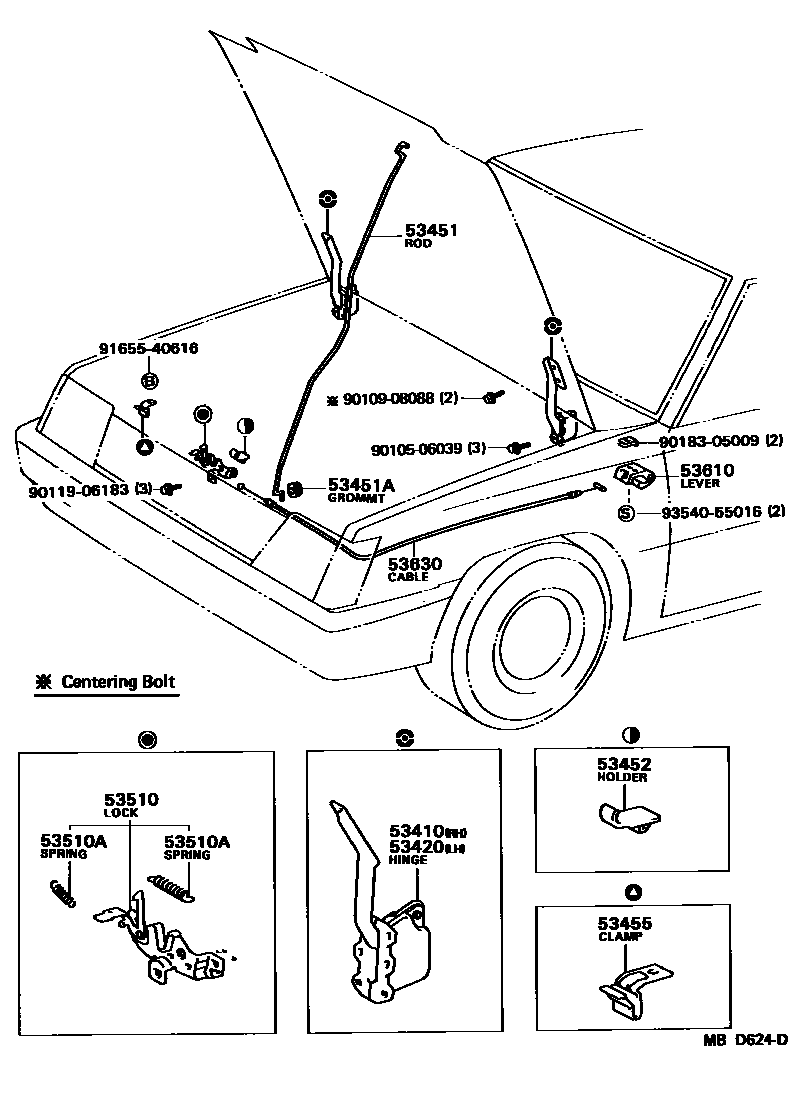

Toyota TERCEL — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-16020i198208-198801

53420HINGE ASSY, HOOD, LH

main53410-16020i198208-198801

53451ROD, HOOD SUPPORT

main53451-16020i198208-198505

main53451-16030i198505-198801

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15002i198208-198801

53452HOLDER, HOOD STAY

main53452-16010i198208-198801

53455CLAMP, HOOD SUPPORT ROD

main53455-16010i198208-198801

53510LOCK ASSY, HOOD

main53510-16060i198208-198408

main53510-16080i198408-198801

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09008×2i198208-198801

WD=0.9,CW=21.25,L=34.4

main90506-20008i198208-198801

WD=2.0,CW=17,L=60

53610LEVER ASSY, HOOD LOCK RELEASE

main53601-14010-11i198608-198801

BLACK,NEW BLACK

main53601-14010-12i198408-198608

DARK WINE,RED/MAROON

main53601-14010-13i198208-198408

GRAY,GRAY

main53601-14010-15i198408-198605

BEIGE,BEIGE

main53601-14010-16i198208-198408

BROWN,BROWN

main53601-14010-23i198408-198608

GRAY,SHADOW GRAY

main53601-14010-25i198605-198801

BEIGE,DARK BEIGE

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-16110i198208-198801

9010506039

main90105-06039

9010908088

main90109-08088

9011906183

main90119-06183

9018305009

main90183-05009

9165540616

main91655-40616

9354055016

main93540-55016

16 parts on this diagram · 1 diagram in section

HOOD LOCK & HINGE for Toyota TERCEL

This section contains 16 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota TERCEL. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, ROD, HOOD SUPPORT, GROMMET(FOR HOOD SUPPORT ROD), HOLDER, HOOD STAY.
