Toyota TERCEL — HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

1605

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-14030iAL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND198311-198408

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-12100iAL21..3A;AL2#..WG..CND198408-198801

main88411-16010iAL2#..(3FC,5F,6F)..USA198208-198307

88320COMPRESSOR ASSY, COOLER

main88320-16030iAL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND198311-198408

main88320-16031iAL2#..CND198703-198801

88330CLUTCH ASSY, MAGNET

main88410-12180iAL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND198311-198408

main88410-16010iAL2#..(3FC,5F,6F)..USA198208-198307

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050iAL2#..CND198703-198801

88330BBEARING, MAGNET CLUTCH

main90099-10135iAL21..3A;AL2#..WG..CND198408-198801

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-14040iAL2#..(3FC,5F,6F)..USA198208-198801

88414ARING, SHIELD SNAP

main90099-07094iAL21..3A;AL2#..WG..CND198408-198801

main90099-07114iAL2#..(3FC,5F,6F)..USA198208-198307

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-16020iAL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND198311-198408

main88431-16030iAL21..3A;AL2#..WG..CND198408-198801

COLD SPEC OR *CAL

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-16020iAL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND198311-198408

main88440-16030iAL21..3A;AL2#..WG..CND198408-198801

COLD SPEC OR *CAL

88596APLATE, CAUTION

main88356-12010iAL2#..USA198703-198801

main88891-12030iAL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND198311-198408

9009907087

main90099-07087

9009907114

main90099-07114

9165161030

main91651-61030

9165161035

main91651-61035

9411040800

main94110-40800

9451100800

main94511-00800

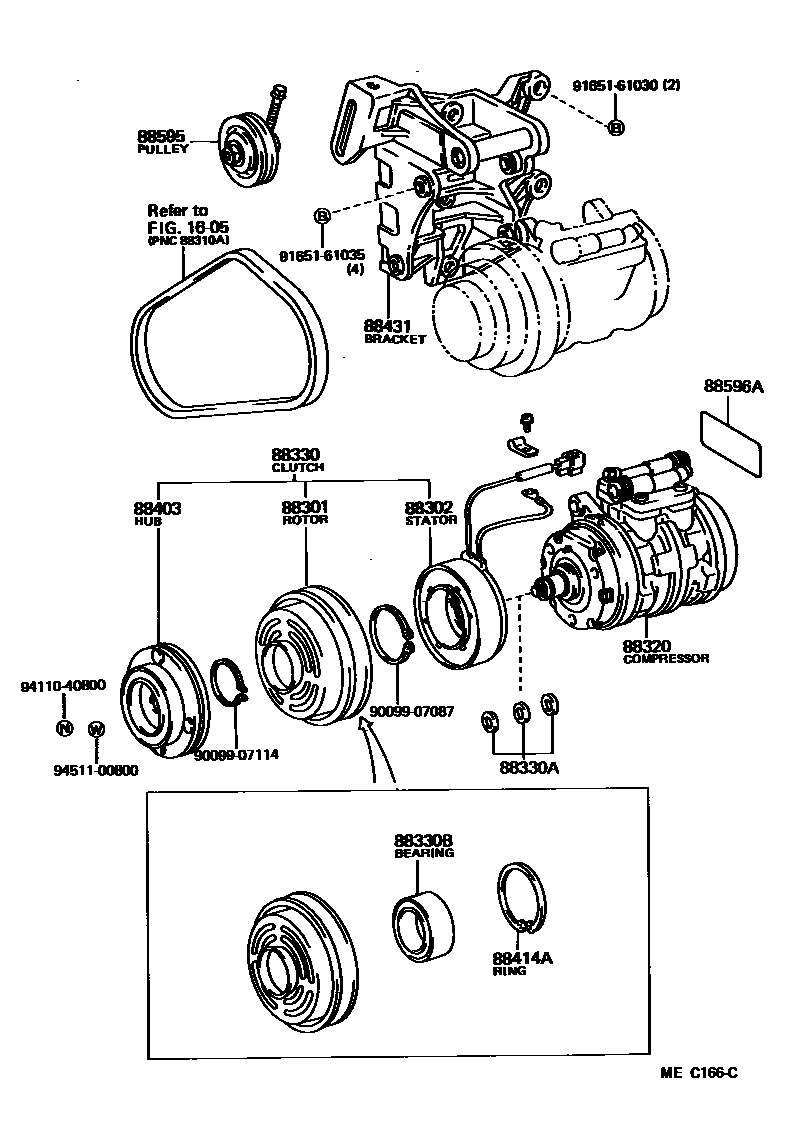

18 parts on this diagram · 3 diagrams in section
