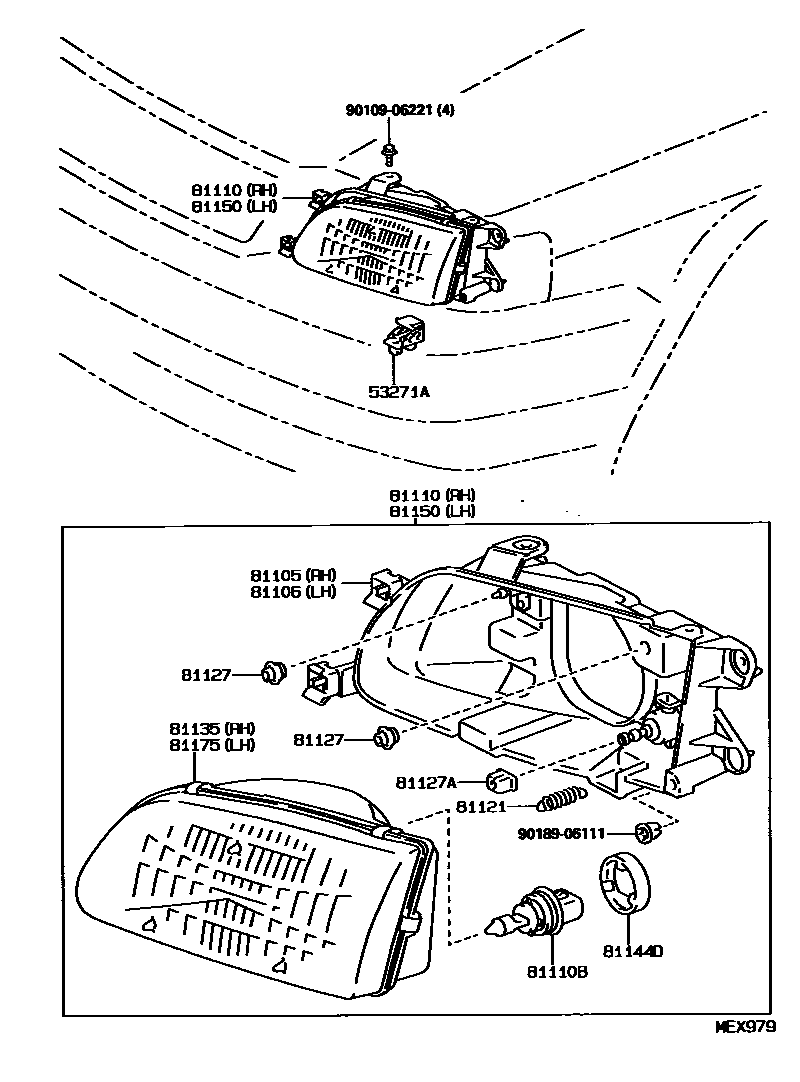

Toyota TERCEL — HEADLAMP

53271ABRACKET, HEADLAMP MOUNTING

main53271-12060×2i199409

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81105-16550i199409

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81106-16550i199409

81110HEADLAMP ASSY, RH

main81110-16550i199409-199608

main81110-16670i199608-199712

main81110-16770i199712

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81063×2i199712

12V 60/55W

main90981-13032×2i199409-199608

12V 65/45W,*HAL,*WH,KOITO

main90981-13058×2i199608

12V 60/55W,HALOGEN,KOITO

main90981-13068×2i199409-199608

12V 65/45W,*HAL,*WH

81121SPRING, HEADLAMP TENSION

main90075-25510×2i199409-199608

81127BEARING, HEADLAMP, NO.1

main81128-22630×4i199409

81127ABEARING, HEADLAMP, NO.2

main90075-10806×2i199409

81135UNIT ASSY, HEADLAMP, RH

main81130-16550i199409-199608

main81130-16670i199608-199712

main81130-16770i199712

81144DCAP, HEADLAMP LOCKING

main90075-99010×2i199409-199608

81150HEADLAMP ASSY, LH

main81150-16550i199409-199608

main81150-16670i199608-199712

main81150-16770i199712

81175UNIT ASSY, HEADLAMP, LH

main81170-16550i199409-199608

main81170-16670i199608-199712

main81170-16770i199712

9010906221

main90109-06221

9018906111

main90189-06111

14 parts on this diagram · 2 diagrams in section

HEADLAMP for Toyota TERCEL

This section contains 15 genuine Toyota parts for the HEADLAMP system of the Toyota TERCEL. Key components include: BRACKET, HEADLAMP MOUNTING, HOUSING SUB-ASSY, HEADLAMP, RH, HOUSING SUB-ASSY, HEADLAMP, LH, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1).
