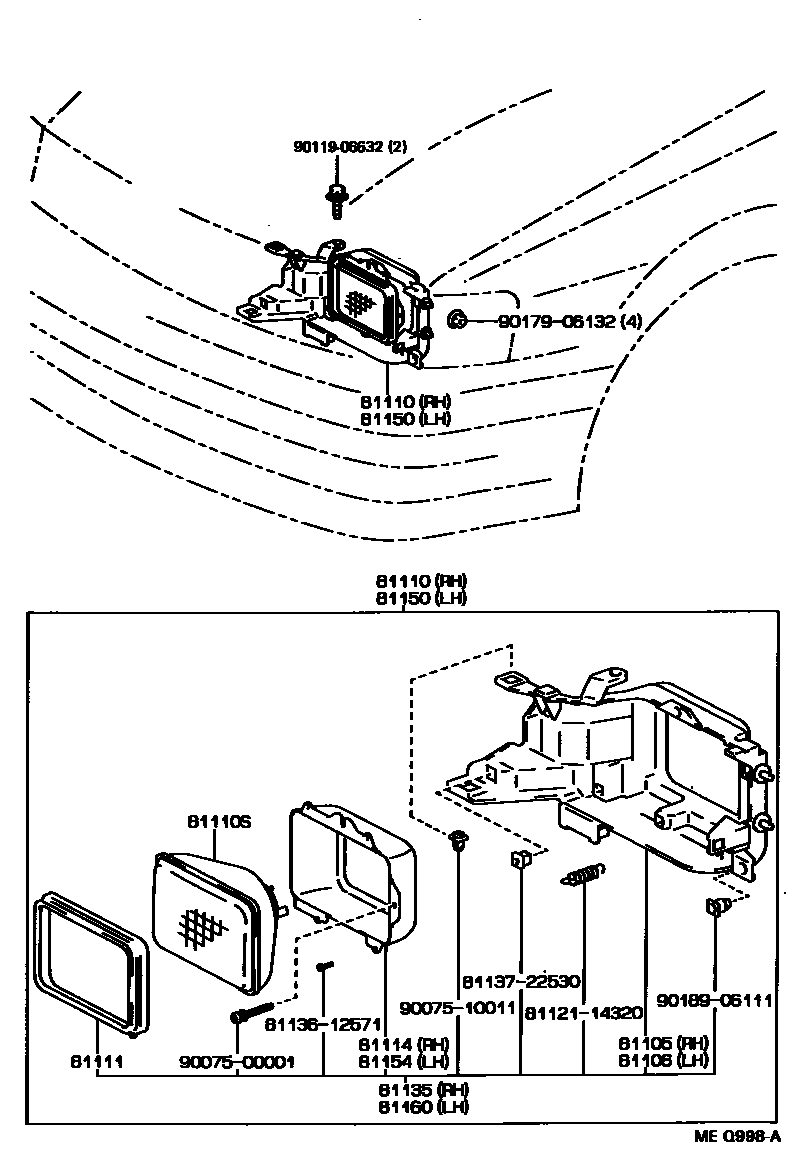

Toyota TERCEL — HEADLAMP
81105HOUSING SUB-ASSY, HEADLAMP, RH
81106HOUSING SUB-ASSY, HEADLAMP, LH
81110HEADLAMP ASSY, RH
81110SSEALED BEAM UNIT, NO.1
12V 65/45W,*HAL,*WH
81111RING, SEALED BEAM RETAINING
81114RING, SEALED BEAM MOUNTING, NO.2 RH
81135UNIT ASSY, HEADLAMP, RH
81150HEADLAMP ASSY, LH
81154RING, SEALED BEAM MOUNTING, NO.2 LH
81160HEADLAMP SUB-ASSY, LH
8112114320SPRING, HEADLAMP TENSION
main81121-14320
8113612571PROTECTOR, HEADLAMP, NO.1 RH
main81136-12571
8113722530PROTECTOR, HEADLAMP, NO.2 RH
main81137-22530
9007500001
main90075-00001
9007510011
main90075-10011
9011906632
main90119-06632
9017906132
main90179-06132
9018906111
main90189-06111
18 parts on this diagram · 2 diagrams in section
HEADLAMP for Toyota TERCEL
This section contains 25 genuine Toyota parts for the HEADLAMP system of the Toyota TERCEL. Key components include: HOUSING SUB-ASSY, HEADLAMP, RH, HOUSING SUB-ASSY, HEADLAMP, LH, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), SEALED BEAM UNIT, NO.1.
