Toyota TERCEL — HEADLAMP

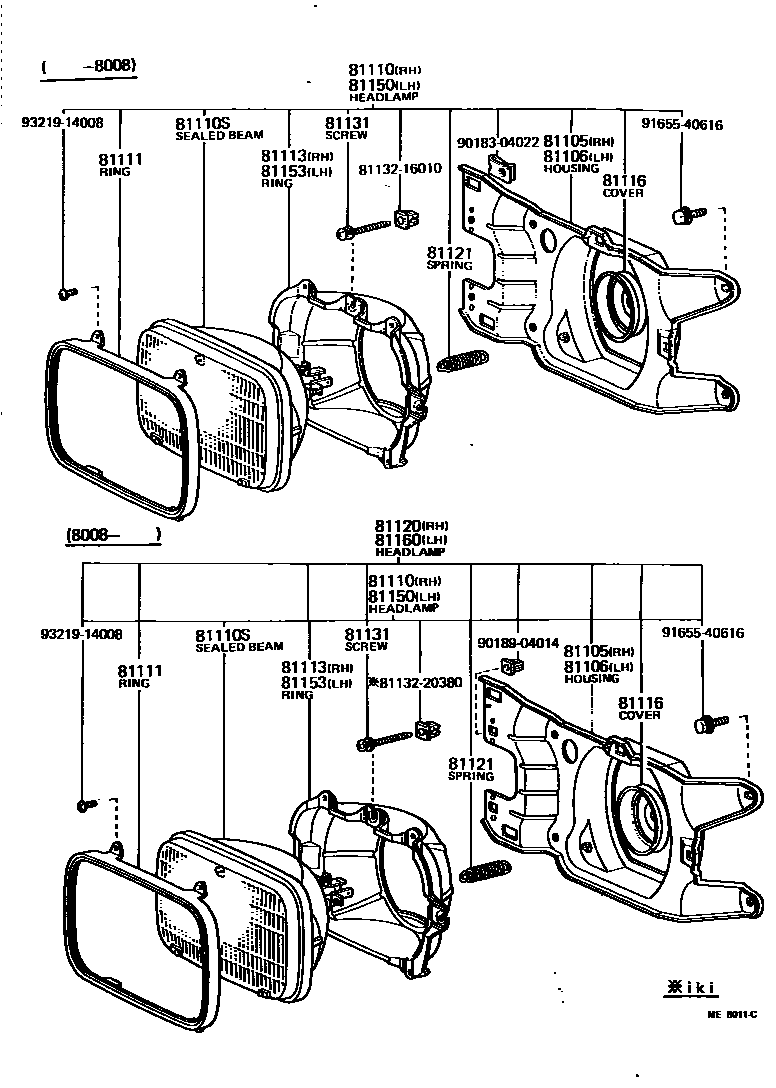

Parts diagram
81105HOUSING SUB-ASSY, HEADLAMP, RH
main81105-16010i197908-198008
IKI
main81105-16011i198108-198207
IKI
main81105-16020i197908-198008
KOITO
main81105-16021i198008-198207
KOITO
81106HOUSING SUB-ASSY, HEADLAMP, LH
main81106-16010i197908-198008
IKI
main81106-16011i198108-198207
IKI
main81106-16020i197908-198008
KOITO
main81106-16021i198008-198207
KOITO
81110HEADLAMP ASSY, RH
main81110-80012i197908-198008
IKI
main81110-80013i197908-198008
KOITO
main81110-80086i198108-198207
IKI
main81110-80087i198108-198207
KOITO
main81110-80181i198108-198207
HALOGEN,KOITO
81110SSEALED BEAM UNIT, NO.1
main90981-04003×2i197908-198108
12V 65/55W,*WB,12V 65/55W,IKI
main90981-04004×2i197908-198108
12V 65/55W,*WB,12V 65/55W,KOITO
main90981-04016×2i198108-198207
12V 65/55W,*WB,*HAL,12V 65/55W,HALOGEN,KOITO
81111RING, SEALED BEAM RETAINING
main81111-16010×2i197908-198108
IKI
main81111-16020×2i197908-198207
KOITO
81113RING, SEALED BEAM MOUNTING, NO.1 RH
main81113-16010i197908-198108
IKI
main81113-16020i197908-198207
KOITO
81116COVER, SEALED BEAM UNIT
main81116-10060×2i197908-198108
IKI
main81116-25050×2i197908-198207
KOITO
81120HEADLAMP SUB-ASSY, RH
main81110-80188i198108-198207
81121SPRING, HEADLAMP TENSION
main81121-16010×2i197908-198008
IKI
main81121-16011×2i198108-198207
IKI
main81121-16020×2i197908-198207
KOITO
81131SCREW, HEADLAMP ADJUSTING
main81131-10031×4i197908-198207
KOITO
main81131-16010×4i197908-198108
IKI
81150HEADLAMP ASSY, LH
main81150-80012i197908-198008
IKI
main81150-80013i197908-198008
KOITO
main81150-80083i198108-198207
IKI
main81150-80084i198108-198207
KOITO
main81150-80178i198108-198207
HALOGEN,KOITO
81153RING, SEALED BEAM MOUNTING, NO.1 LH
main81153-16010i197908-198108
IKI
main81153-16020i197908-198207
KOITO
81160HEADLAMP SUB-ASSY, LH
main81150-80185i198108-198207
8113216010NUT, HEADLAMP SELF LOCKING
main81132-16010
8113220380NUT, HEADLAMP SELF LOCKING
main81132-20380
9018304022
main90183-04022
9018904014
main90189-04014
9165540616
main91655-40616
9321914008
main93219-14008

19 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota TERCEL

This section contains 19 genuine Toyota parts for the HEADLAMP system of the Toyota TERCEL. Key components include: HOUSING SUB-ASSY, HEADLAMP, RH, HOUSING SUB-ASSY, HEADLAMP, LH, HEADLAMP ASSY, RH, SEALED BEAM UNIT, NO.1, RING, SEALED BEAM RETAINING.
