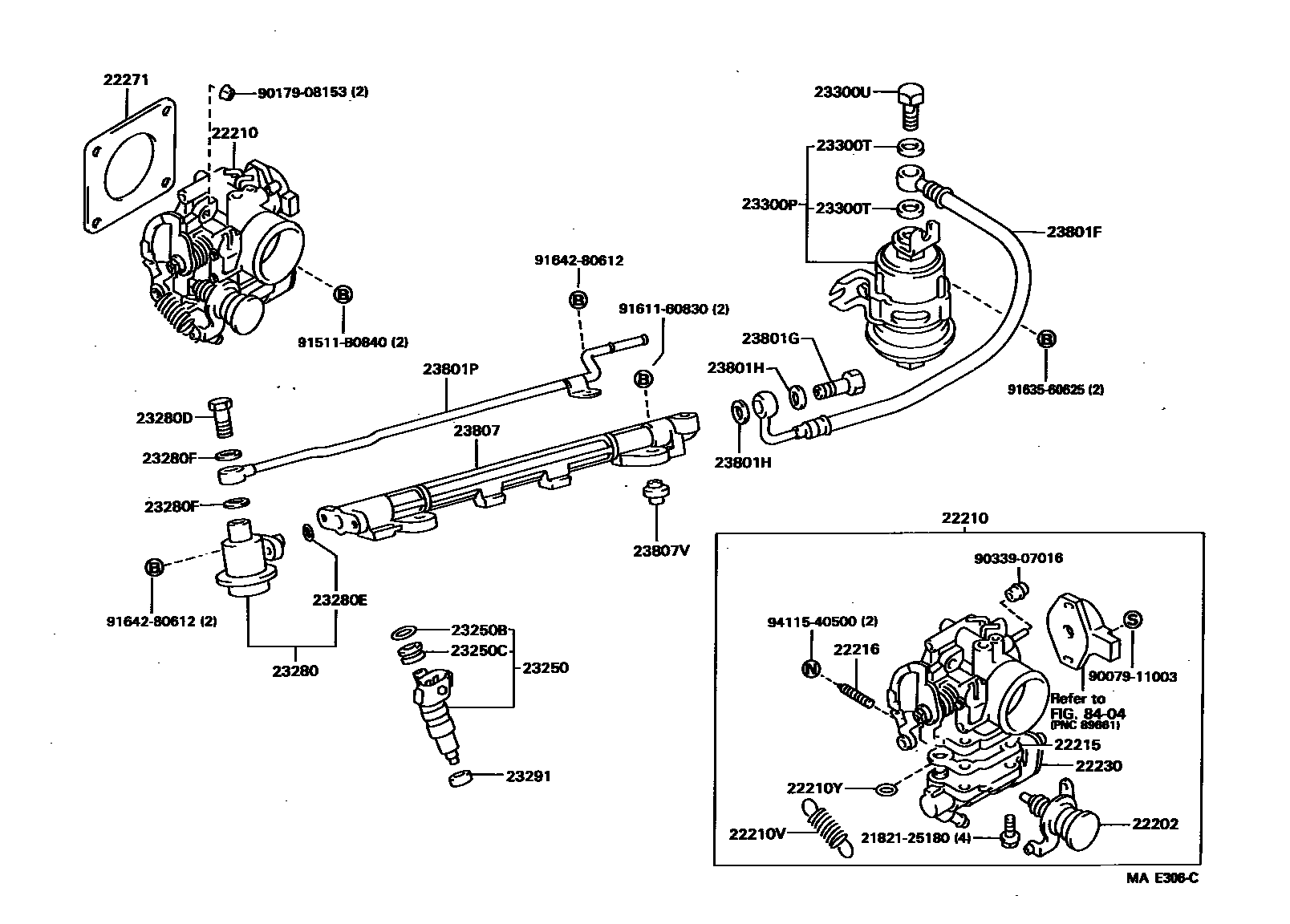

Toyota TERCEL — FUEL INJECTION SYSTEM
22202DASH POT SUB-ASSY
CALIFORNIA SPEC
22210BODY ASSY, THROTTLE
CALIFORNIA SPEC
CALIFORNIA SPEC
CALIFORNIA SPEC
CALIFORNIA SPEC
22210VSPRING, TENSION, W/DAMPER (FOR THROTTLE RETURN)
22210YRING, O(FOR AIR TUBE)
22215GASKET, THROTTLE BODY COVER
22216SCREW, DASH POT ADJUSTING
CALIFORNIA SPEC
22230VALVE ASSY, AUXILIARY AIR
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
NO.2,4 CYLINDER
NO.1,3 CYLINDER
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23280REGULATOR ASSY, FUEL PRESSURE
sub23280-11120
23280DBOLT, UNION(FOR FUEL PIPE OR HOSE SET)
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23280FGASKET(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23300PFILTER, FUEL(FOR EFI)
CHILE SPEC
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23801FHOSE, FUEL, NO.1
23801GBOLT, UNION(FOR FUEL PIPE)
23801HGASKET(FOR FUEL PIPE)
23801PPIPE SUB-ASSY, FUEL, NO.1
23807PIPE SUB-ASSY, FUEL DELIVERY
23807VSPACER, NO.1(FOR DELIVERY PIPE)
8404
2182125180SCREW, 2ND THROTTLE VALVE SET
main21821-25180
9007911003
main90079-11003
9017908153
main90179-08153
9033907016
main90339-07016
91511B0840
main91511-B0840
9161160830
main91611-60830
9163560625
main91635-60625
9164280612
main91642-80612
9411540500
main94115-40500
35 parts on this diagram · 2 diagrams in section
