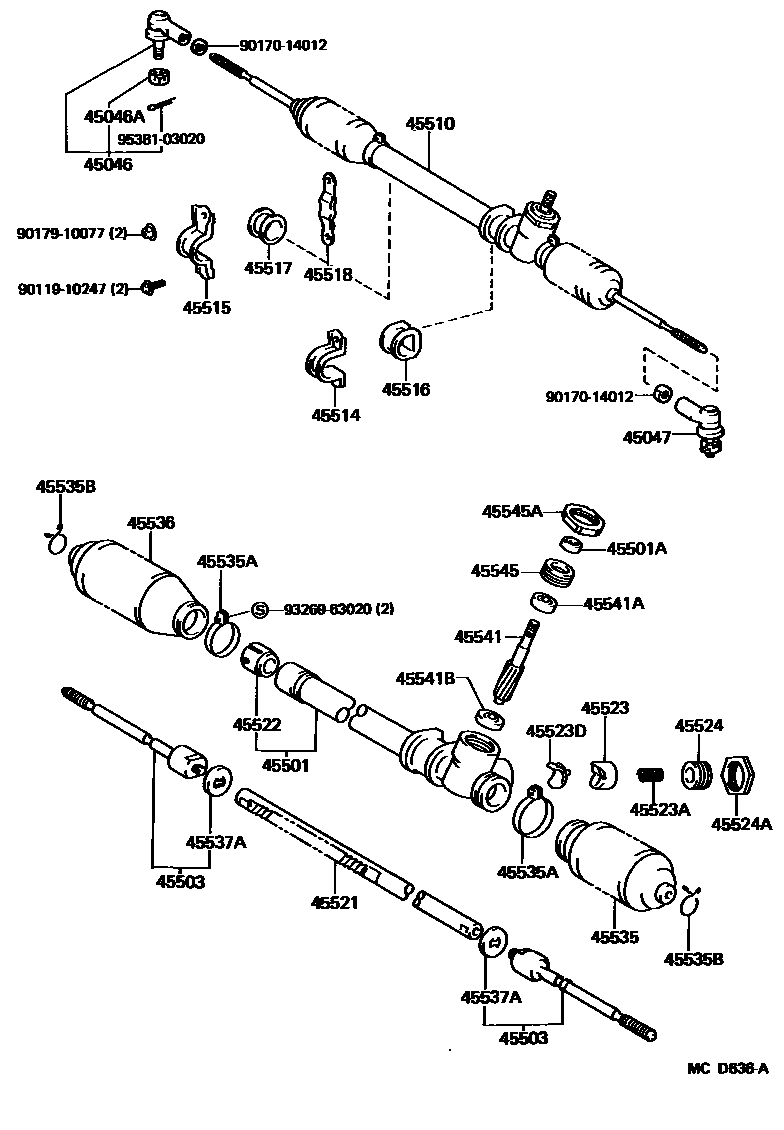

Toyota TERCEL — FRONT STEERING GEAR & LINK
45046END SUB-ASSY, TIE ROD, RH
45046ANUT, CASTLE(FOR TIE ROD END)
45047END SUB-ASSY, TIE ROD, LH
45501HOUSING SUB-ASSY, STEERING RACK
45501ASEAL, TYPE T OIL(FOR STEERING RACK HOUSING)
45503END SUB-ASSY, STEERING RACK
45510GEAR ASSY, STEERING
45514BRACKET, STEERING RACK HOUSING, NO.1
W/POWER STEERING
45515BRACKET, STEERING RACK HOUSING, NO.2
W/POWER STEERING
45516GROMMET, STEERING RACK HOUSING, NO.1
W/POWER STEERING
45517GROMMET, STEERING RACK HOUSING, NO.2
W/POWER STEERING
45518BRACKET, STEERING RACK HOUSING, NO.3
W/POWER STEERING
45521RACK, STEERING
45522BUSH, STEERING RACK
45523GUIDE, RACK(FOR STEERING GEAR)
45523ASPRING(FOR STEERING GEAR RACK GUIDE)
45523DSEAT, RACK GUIDE
45524CAP, STEERING RACK GUIDE SPRING
45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)
45535BOOT, STEERING RACK, NO.1
45535ACLAMP(FOR STEERING RACK BOOT)
BOOT NO.1
BOOT NO.2
45535BCLIP(FOR STEERING RACK BOOT)
45536BOOT, STEERING RACK, NO.2
45537AWASHER, CLAW(FOR STEERING RACK END LOCK)
45541PINION, STEERING
45541ABEARING, RADIAL BALL(FOR STEERING PINION UPPER)
45541BBEARING, RADIAL BALL(FOR STEERING PINION LOWER)
45545SCREW, PINION BEARING ADJUSTING
45545ANUT(FOR PINION BEARING ADJUSTING SCREW)
9011910247
main90119-10247
9017014012
main90170-14012
9017910077
main90179-10077
9326963020
main93269-63020
9538103020
main95381-03020
34 parts on this diagram · 3 diagrams in section
FRONT STEERING GEAR & LINK for Toyota TERCEL
This section contains 70 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota TERCEL. Key components include: GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION), GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE, VALVE SUB-ASSY, POWER STEERING CONTROL, SPACER(FOR POWER STEERING CONTROL VALVE), RACK SUB-ASSY, POWER STEERING.
