Toyota TERCEL — FRONT SPRING & SHOCK ABSORBER

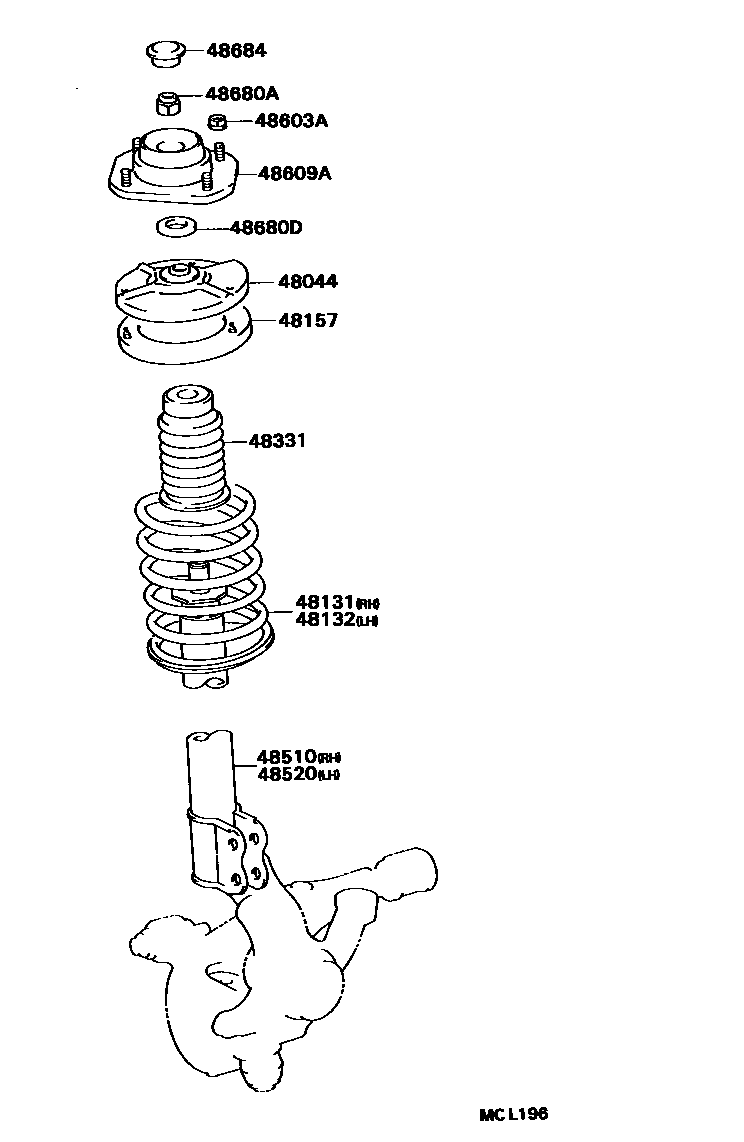

Parts diagram
48044SEAT SUB-ASSY, FRONT SPRING, NO.1
main48044-10030×2i199009-199409
48131SPRING, FRONT COIL, RH
main48131-16620i199208-199310
W(AIR CONDITIONER)
sub48131-16790
main48131-1G010i199208-199212
main48131-1G030i199009-199208
W(AIR CONDITIONER)
sub48131-10621
main48131-1G250i199009-199208
W(AIR CONDITIONER)
sub48131-1G251
main48131-1G261i199208-199310
W(AIR CONDITIONER)
sub48131-1G262
main48131-1G280i199009-199208
48132SPRING, FRONT COIL, LH
main48131-16620i199208-199310
W(AIR CONDITIONER)
sub48131-16790
main48131-1G010i199009-199208
W(AIR CONDITIONER)
main48131-1G030i199208-199409
sub48131-10621
main48131-1G250i199212-199409
sub48131-1G251
main48131-1G261i199208-199310
W(AIR CONDITIONER)
sub48131-1G262
main48131-1G280i199009-199208
48157INSULATOR, FRONT COIL SPRING, UPPER
main48157-16040×2i199009-199409
48331BUMPER, FRONT SPRING, NO.1
main48331-16060×2i199009-199409
48510ABSORBER ASSY, SHOCK, FRONT RH
main48510-16290i199009-199409
sub48510-19656
sub90105-15012
48520ABSORBER ASSY, SHOCK, FRONT LH
main48520-16070i199009-199409
sub48520-19346
sub90105-15012
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
main90179-08206×6i199009-199409
48609ASUPPORT SUB-ASSY, FRONT SUSPENSION
main48609-16130×2i199009-199409
main48609-16140×2i199009-199409
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
main94182-11400×2i199009-199409
48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
main90303-22049×2i199009-199409
48684COVER, BEARING DUST
main48684-10010×2i199009-199409

12 parts on this diagram · 1 diagram in section
