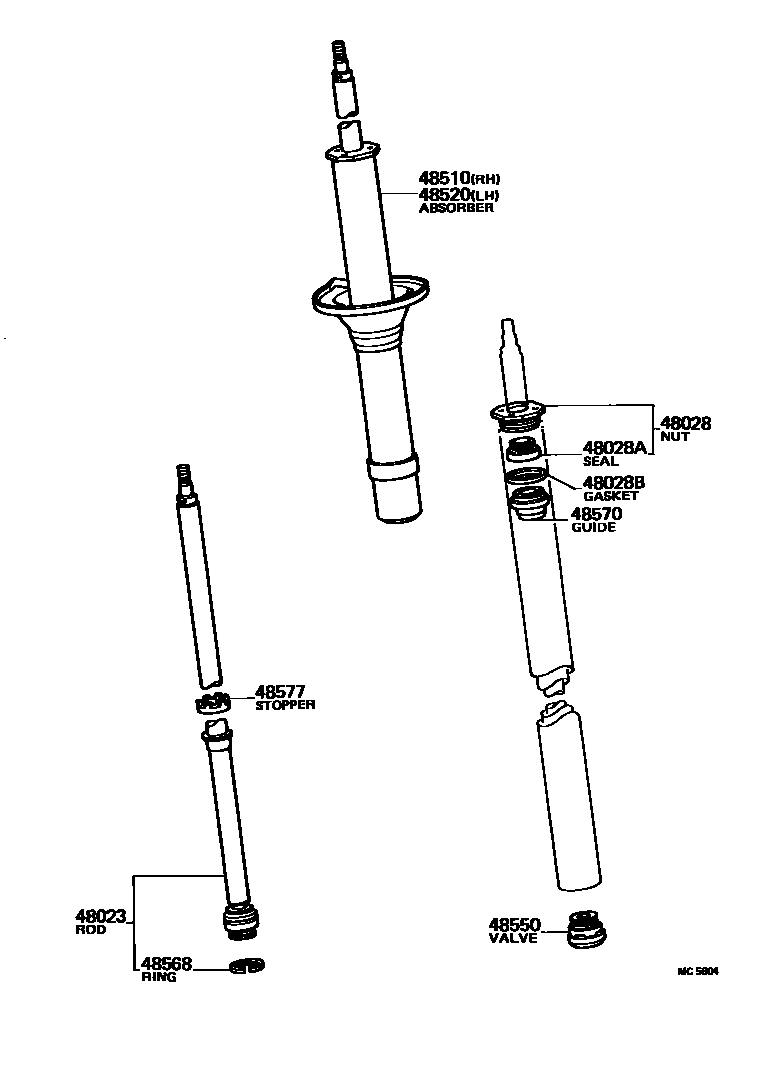

Toyota TERCEL — FRONT SPRING & SHOCK ABSORBER

48023ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT)

main48023-16021i197908-198207

48028NUT SUB-ASSY, SHOCK ABSORBER RING

main48028-10020i197908-198207

48028ASEAL, OIL(FOR SHOCK ABSORBER RING NUT)

main90316-20006i197908-198207

48028BGASKET(FOR SHOCK ABSORBER RING NUT)

main90430-36002i197908-198207

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-16021i197908-198207

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-16021i197908-198207

48550VALVE ASSY, SHOCK ABSORBER BASE

main48550-16010i197908-198207

48568RING, SHOCK ABSORBER PISTON

main48568-12010i197908-198207

48570GUIDE ASSY, SHOCK ABSORBER ROD

main48022-10020i197908-198207

48577STOPPER, SHOCK ABSORBER REBOUND

main48577-10010i197908-198207

10 parts on this diagram · 2 diagrams in section

FRONT SPRING & SHOCK ABSORBER for Toyota TERCEL

This section contains 39 genuine Toyota parts for the FRONT SPRING & SHOCK ABSORBER system of the Toyota TERCEL. Key components include: ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT), NUT SUB-ASSY, SHOCK ABSORBER RING, SEAL, OIL(FOR SHOCK ABSORBER RING NUT), GASKET(FOR SHOCK ABSORBER RING NUT), SPRING, FRONT COIL, RH.
