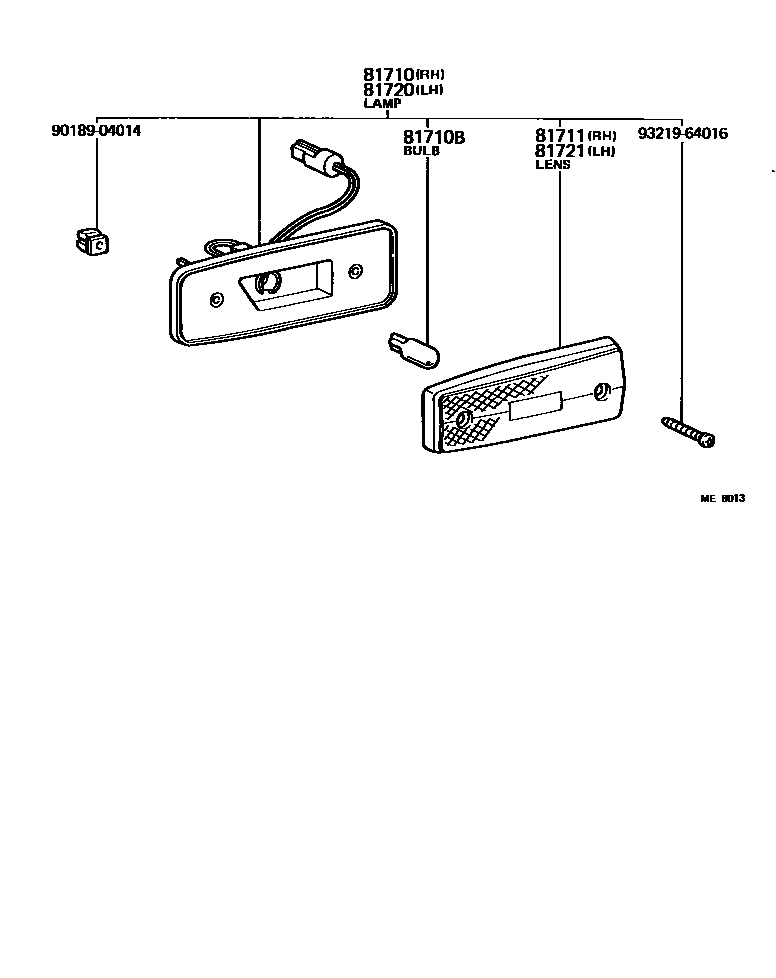

Toyota TERCEL — FRONT MARKER LAMP

81710LAMP ASSY, FRONT MARKER, RH

main81730-19305i197908-198008

81710BBULB, FRONT MARKER LAMP

main90981-11020×2i197908-198008

12V 3.8W,12V 3.8W

81711LENS, FRONT MARKER LAMP, RH

main81731-14110i197908-198008

81720LAMP ASSY, FRONT MARKER, LH

main81740-19285i197908-198008

81721LENS, FRONT MARKER LAMP, LH

main81741-14110i197908-198008

9018904014

main90189-04014

9321964016

main93219-64016

7 parts on this diagram · 1 diagram in section

FRONT MARKER LAMP for Toyota TERCEL

This section contains 7 genuine Toyota parts for the FRONT MARKER LAMP system of the Toyota TERCEL. Key components include: LAMP ASSY, FRONT MARKER, RH, BULB, FRONT MARKER LAMP, LENS, FRONT MARKER LAMP, RH, LAMP ASSY, FRONT MARKER, LH, LENS, FRONT MARKER LAMP, LH.
