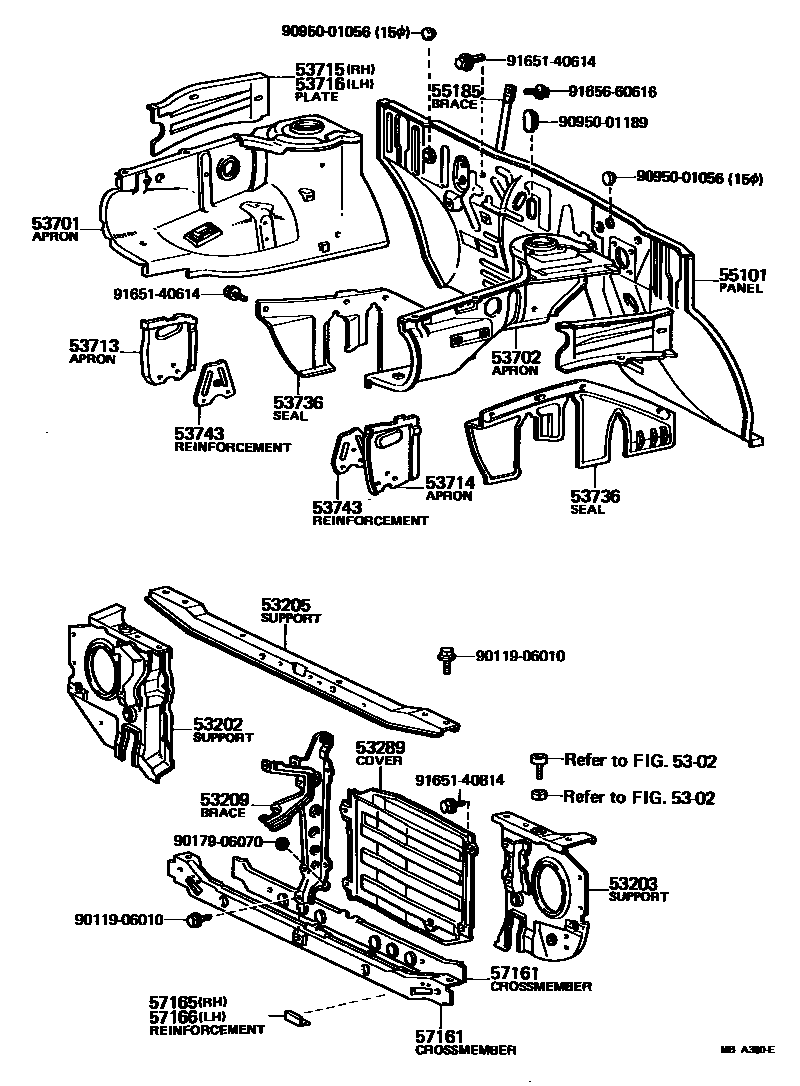

Toyota TERCEL — FRONT FENDER APRON & DASH PANEL
5302
53203SUPPORT SUB-ASSY, RADIATOR, LH
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53715PLATE, FRONT FENDER APRON, REAR RH
53716PLATE, FRONT FENDER APRON, REAR LH
53736SEAL, FRONT FENDER APRON, RH
RH
LH
53743REINFORCEMENT, FRONT FENDER APRON EXTENSION
RH
RH
LH
LH
55185BRACE, DASH PANEL TO COWL
57161CROSSMEMBER, FRONT
FR
FR
FR
RR
RR
57165REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH
57166REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH
9011906010
main90119-06010
9017906070
main90179-06070
9095001056
main90950-01056
9095001189
main90950-01189
9165140614
main91651-40614
9165140814
main91651-40814
9165660616
main91656-60616
26 parts on this diagram · 1 diagram in section
