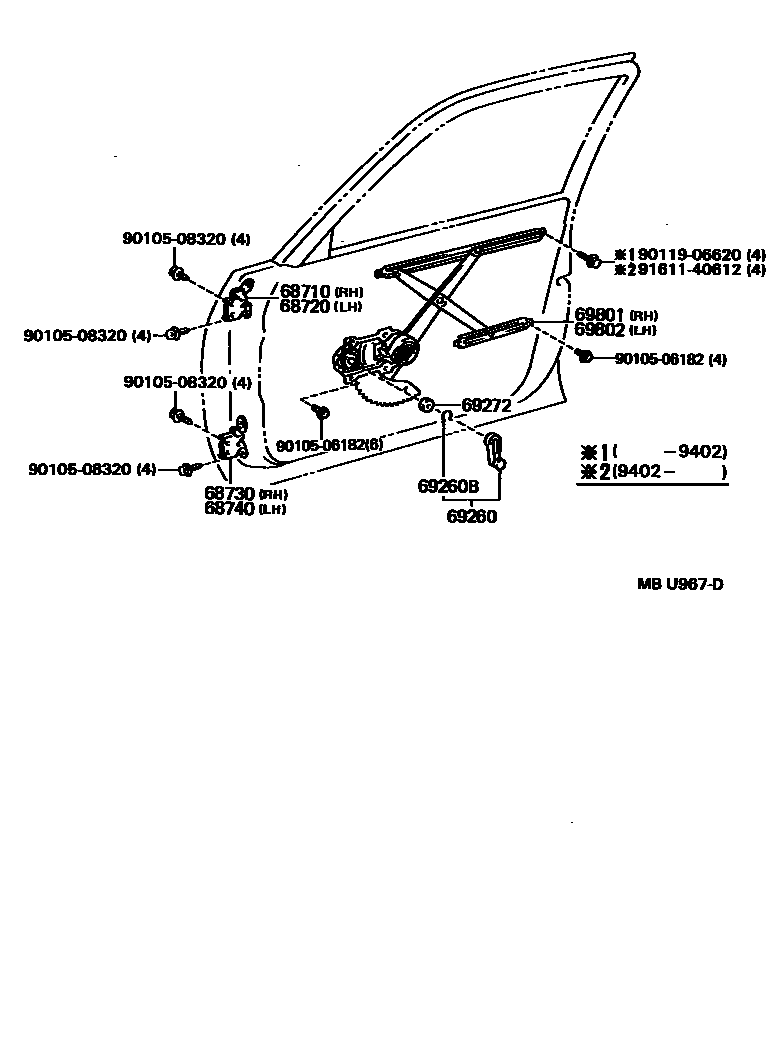

Toyota TERCEL — FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-16040iEL42199009-199208

main68710-16050iEL42199208-199409

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-16040iEL42199009-199208

main68720-16050iEL42199208-199409

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-16040iEL42199009-199208

main68730-16060iEL42199210-199409

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-16040iEL42199210-199308

main68740-16060iEL42199308-199409

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-16010-01×2iEL42199009-199208

BLACK,TRIM2#

main69260-16010-04×2iEL42..DLX,LE199009-199208

GRAYISH BLUE,TRIM8#

main69260-16010-22×2iEL42..4DS..USA199208-199409

W(POWER WINDOW),BLACK,TRIM2#

main69260-16010-W4×2iEL42..2DS..DLX199208-199409

EISEN BLUE,TRIM8#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iEL42199009-199409

sub90520-01274

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-16010×2iEL42..4DS199212-199409

TAKAOKA

main69268-20020×2iEL42..4DS..USA199208-199212

W(POWER WINDOW)

sub69285-22010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-16031iEL42..4DS..USA199208-199409

PUERTORICO SPEC & W(POWER WINDOW)

main69810-16080iEL42199009-199208

main69810-16081iEL42199208-199409

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-16031iEL42..4DS..USA199208-199409

PUERTORICO SPEC & W(POWER WINDOW)

main69820-16080iEL42199009-199208

main69820-16081iEL42199208-199409

9010506182

main90105-06182

9010508320

main90105-08320

9011906620

main90119-06620

9161140612

main91611-40612

13 parts on this diagram · 1 diagram in section
