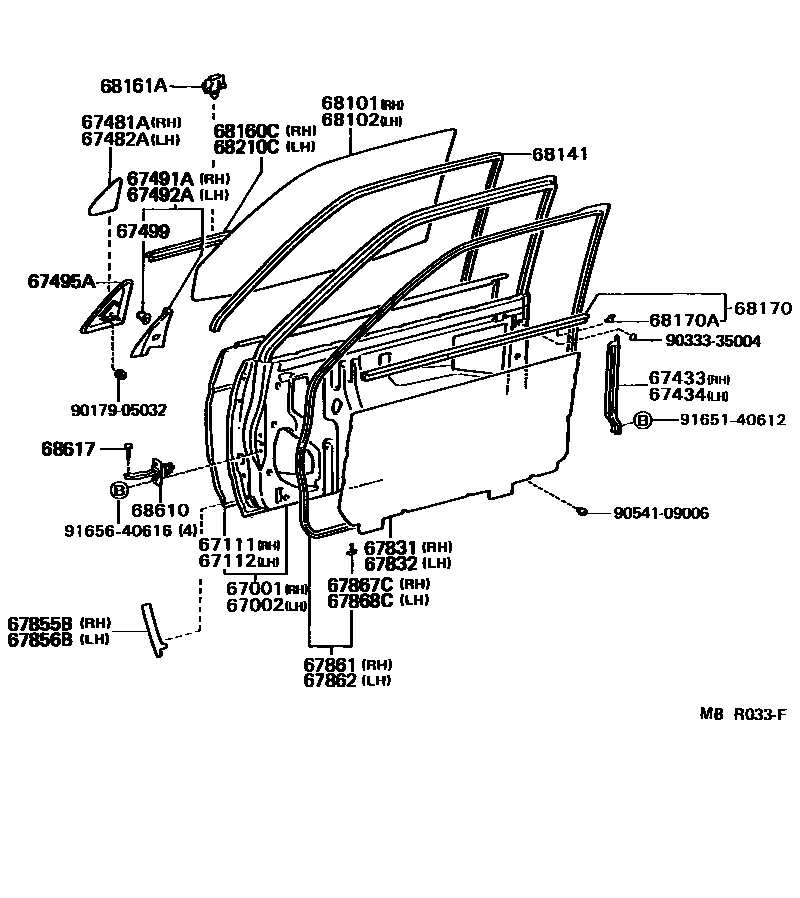

Toyota TERCEL — FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-16180iEL31..3DS..CND198908-199009

main67001-16270iEL31..5DS198808-199009

main67001-16310iEL31..DX..CND198908-199009

main67001-16330iEL31..3DS..USA198908-199009

main67001-16340iEL31..2DS..USA198908-199009

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-16140iEL31..3DS..CND198908-199009

main67002-16230iEL31..5DS198808-199009

main67002-16270iEL31..2DS198808-198908

main67002-16290iEL31..3DS..USA198908-199009

main67002-16300iEL31..2DS..USA198908-199009

67111PANEL, FRONT DOOR, OUTER RH

main67111-16160iEL31..2DS,3DS198808-199009

main67111-16180iEL31..5DS198808-199009

67112PANEL, FRONT DOOR, OUTER LH

main67112-16140iEL31..2DS,3DS198808-199009

main67112-16160iEL31..5DS198808-199009

67433FRAME, FRONT DOOR WINDOW, REAR LOWER RH

main67403-16050iEL31..TER..(2DS,3DS)..USA..CBR198808-199009

W(ANTI-THEFT DEVICE)

main67403-16060iEL31..2DS,3DS198808-199009

main67403-16070iEL31..5DS198808-199009

67434FRAME, FRONT DOOR WINDOW, REAR LOWER LH

main67404-16050iEL31..TER..(2DS,3DS)..USA..CBR198808-199009

W(ANTI-THEFT DEVICE)

main67404-16060iEL31..2DS,3DS198808-199009

main67404-16070iEL31..5DS198808-199009

67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH

main67481-16170iEL31198808-199009

67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH

main67481-16170iEL31..2DS..DX198808-199009

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-16050iEL31..2DS,3DS198808-199009

main67491-16060iEL31..3DS..STD198908-199009

W(OUTER RR VIEW MIRROR)

main67491-16070iEL31..5DS198808-199009

main67491-16080iEL31..5DS..DX;EL31..5DS..STD..CND198808-199009

W(OUTER RR VIEW MIRROR)

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-16050iEL31..2DS,3DS198808-199009

main67492-16060iEL31..(2DS,3DS)..(BASE,STD)198808-198908

W(OUTER RR VIEW MIRROR)

main67492-16070iEL31..5DS198808-199009

main67492-16080iEL31..5DS..DX198808-199009

W(OUTER RR VIEW MIRROR)

67495ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH

main67495-16030iEL31..DX..CND198908-199009

W(BLACK DOOR BELT MOULDING)

main67495-16040iEL31..2DS,3DS198808-199009

main67495-16060iEL31..5DS198808-199009

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-12020×2iEL31..2DS,3DS198808-199009

main67499-12030×2iEL31..5DS198808-199009

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-16120iEL31..2DS,3DS198808-199009

main67831-16140iEL31..5DS198808-199009

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-16120iEL31..2DS,3DS198808-199009

main67832-16110iEL31..5DS198808-199009

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-16010iEL31198805-199009

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67856-16010iEL31198805-199009

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-16210iEL31..3DS198808-199009

sub67861-16240

main67861-16220iEL31..5DS198808-199009

main67861-16230iEL31..2DS198808-199009

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-16210iEL31..3DS198808-199009

sub67862-16240

main67862-16220iEL31..5DS198808-199009

main67862-16230iEL31..2DS198808-199009

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67868-30040×21iEL31..2DS,3DS198808-199009

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67868-30040×17iEL31..2DS,3DS198808-199009

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-16130iEL31..3DS..(BASE,STD)198808-199009

*TEM,T=3.5

main68111-16140iEL31..3DS..DX198808-199009

*TT,T=3.5

main68111-16160iEL31..5DS..STD198808-199009

*TEM,T=3.5

main68111-16170iEL31..5DS..DX198808-199009

*TT,T=3.5

main68111-16190iEL31..2DS..STD198808-198908

*TEM,T=3.5

main68111-16200iEL31..2DS198908-199009

*TT,T=3.5

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-16130iEL31..3DS..(BASE,STD)198808-199009

*TEM,T=3.5

main68112-16140iEL31..3DS..DX198808-199009

*TT,T=3.5

main68112-16160iEL31..5DS..STD198808-199009

*TEM,T=3.5

main68112-16170iEL31..5DS..DX198808-199009

*TT,T=3.5

main68112-16190iEL31..2DS..STD198808-198908

*TEM,T=3.5

main68112-16200iEL31..2DS198908-199009

*TT,T=3.5

68141RUN, FRONT DOOR GLASS

main68141-16150×2iEL31..3DS198808-199009

main68141-16160×2iEL31..5DS198808-199009

main68141-16170×2iEL31..2DS198808-199009

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-16070iEL31..2DS,3DS198808-199009

main68160-16080iEL31..5DS198808-199009

68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)

main68211-16010×14iEL31..2DS,3DS198808-199009

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-16080×2iEL31..2DS,3DS198808-199009

main68171-16070iEL31..5DS198808-199009

RH

main68172-16070iEL31..5DS198808-199009

LH

68170ACLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)

main68211-10030×14iEL31..2DS,3DS198808-199009

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-16060iEL31..2DS,3DS198808-199009

main68210-16070iEL31..5DS198808-199009

68610CHECK ASSY, FRONT DOOR

main68610-10020×2iEL31198808-199009

68617PIN, FRONT DOOR CHECK

main68617-90A00×2iEL31198808-199009

sub68617-90A01

9017905032

main90179-05032

9033335004

main90333-35004

9054109006

main90541-09006

9165140612

main91651-40612

9165640616

main91656-40616

35 parts on this diagram · 4 diagrams in section
