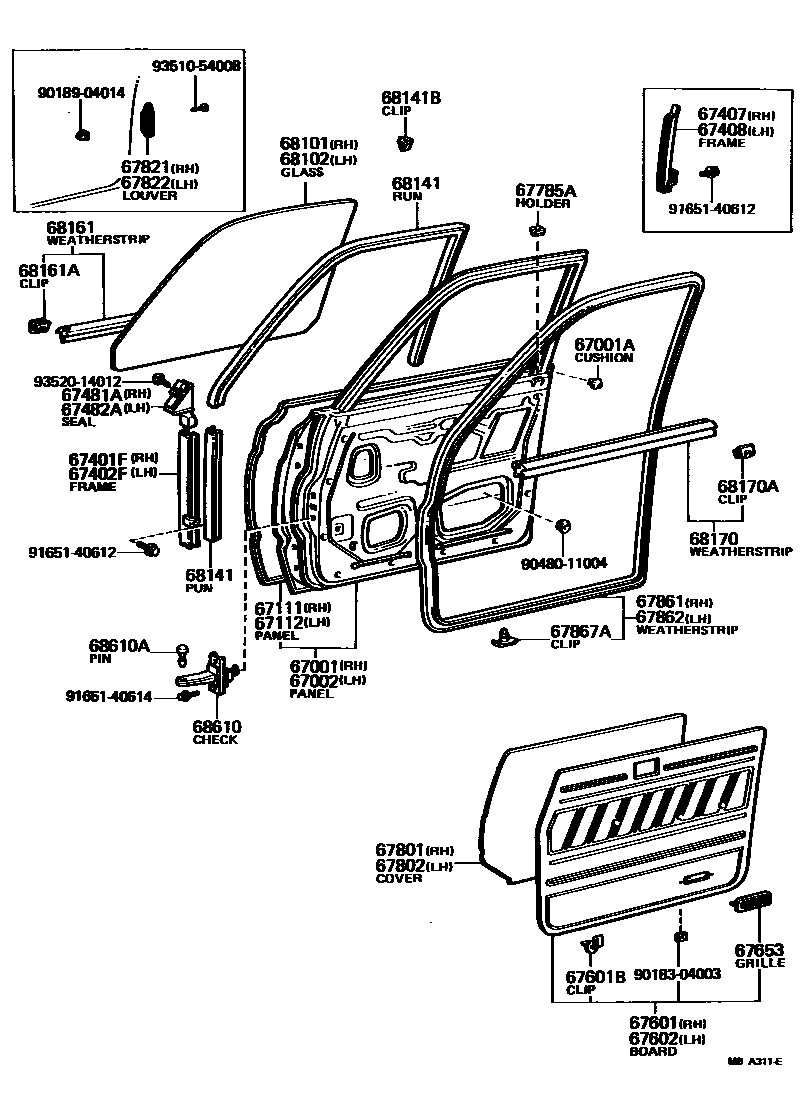

Toyota TERCEL — FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
W/MIRROR HOLE
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
W/MIRROR HOLE
W/MIRROR HOLE
67111PANEL, FRONT DOOR, OUTER RH
W/MIRROR HOLE
67112PANEL, FRONT DOOR, OUTER LH
W/MIRROR HOLE
W/MIRROR HOLE
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH
67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
LIGHT BROWN,BROWN
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
LIGHT BROWN,BROWN
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
LIGHT BROWN,BROWN
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
LIGHT BROWN,BROWN
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
LIGHT BROWN,BROWN
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
LIGHT BROWN,BROWN
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
67653GRILLE, FRONT DOOR, VENTILATION
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
LIGHT BROWN,BROWN
67785AHOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)
BLACK
BLACK
67801COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH
67802COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH
67821LOUVER, FRONT DOOR VENTILATION, RH
67822LOUVER, FRONT DOOR VENTILATION, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TT,T=4.0
*TEM,T=4.0
*TT,T=4.0
*TEM,T=4.0
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TT,T=4.0
*TEM,T=4.0
*TT,T=4.0
*TEM,T=4.0
68141RUN, FRONT DOOR GLASS
L=1879
L=1625
L=425
68141BCLIP, DOOR GLASS RUN
68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER
RH
LH
68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
RH
LH
68170ACLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
68610CHECK ASSY, FRONT DOOR
68610APIN(FOR FRONT DOOR CHECK)
9018304003
main90183-04003
9018904014
main90189-04014
9048011004
main90480-11004
9165140612
main91651-40612
9165140614
main91651-40614
9351054008
main93510-54008
9352014012
main93520-14012
40 parts on this diagram · 1 diagram in section
FRONT DOOR PANEL & GLASS for Toyota TERCEL
This section contains 40 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota TERCEL. Key components include: PANEL SUB-ASSY, FRONT DOOR, RH, CUSHION, FRONT DOOR PANEL, PANEL SUB-ASSY, FRONT DOOR, LH, PANEL, FRONT DOOR, OUTER RH, PANEL, FRONT DOOR, OUTER LH.
