Toyota TERCEL — FRONT DOOR LOCK & HANDLE

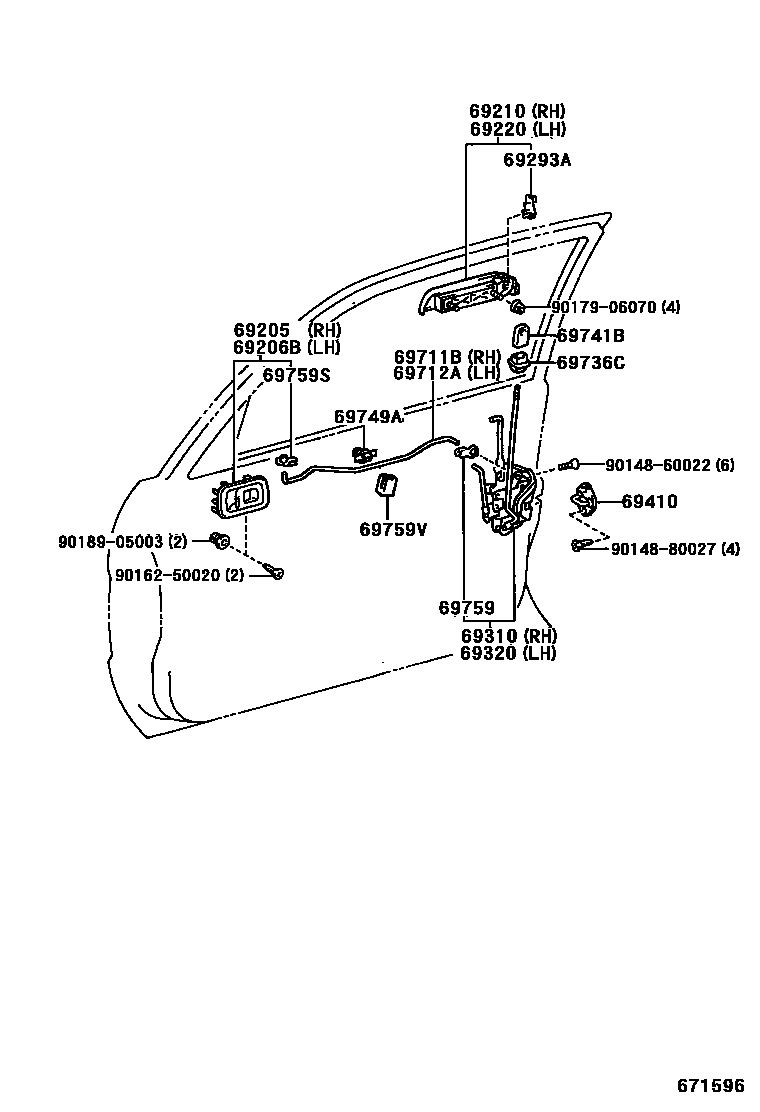

Parts diagram
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-16100-B0i199608
SHADOW GRAY,TRIM1#
main69205-16100-E0i199608-199805
OAK,TRIM4#
main69205-16100-E1i199805
SANDAL WOOD,TRIM4#
main69206-10070-B0i199508-199608
BLUISH GRAY,TRIM1#
main69206-10070-E0i199508-199608
OAK,TRIM4#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69205-10070-B0i199502-199508
BLUISH GRAY,TRIM1#
main69205-10070-E0i199409-199608
OAK,TRIM4#
main69206-16100-B0i199608
SHADOW GRAY,TRIM1#
main69206-16100-E0i199608-199805
OAK,TRIM4#
main69206-16100-E1i199805
SANDAL WOOD,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-16090i199409-199503
main69210-16091i199503-199901
main69210-16120i199901
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69220-16090i199409-199503
main69220-16091i199503-199901
main69220-16120i199901
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
main69293-10010i199608
BROWN
main69293-10020i199608
PINK
69310LOCK ASSY, FRONT DOOR, RH
main69030-16180i199409
PUERTORICO SPEC & W(POWER WINDOW)
main69030-16190i199409
PUERTORICO SPEC
main69030-16210i199409
W(POWER WINDOW)
main69030-16220i199409-199608
PUERTORICO SPEC
main69030-16290i199608
W(POWER WINDOW)
main69310-16340i199409
main69310-16360i199409
69320LOCK ASSY, FRONT DOOR, LH
main69040-16180i199409
PUERTORICO SPEC & W(POWER WINDOW)
main69040-16190i199409
PUERTORICO SPEC
main69040-16210i199409
W(POWER WINDOW)
main69040-16220i199608
PUERTORICO SPEC
main69040-16290i199608
W(POWER WINDOW)
main69320-16340i199409
main69320-16360i199409
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-16010×2i199409-199502
main69410-87001×2i199409
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
main69711-16090i199409
main69711-16100i199409-199502
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
main69712-16090i199409
main69712-16100i199409-199502
69736CGUIDE, FRONT DOOR LOCKING LINK
main69736-16040×2i199409-199502
69741BKNOB, FRONT DOOR LOCK CONTROL
main69741-16030-B0×2i199608
SHADOW GRAY,TRIM1#
sub69741-87003
sub69741-32020
main69741-16030-E0×2i199608
OAK,TRIM4#
sub69741-87003
sub69741-32020
main69741-90K00×2i199508-199608
sub69741-89102
sub69741-12040
sub69741-89104
main69741-90K00-B2×2i199508-199608
SHADOW GRAY,TRIM1#
sub69741-89102
sub69741-12040
sub69741-89104
main69741-90K00-B3×2i199409-199508
GRAY,TRIM1#
sub69741-89102
sub69741-12040
sub69741-89104
main69741-90K00-E3×2i199508-199608
OAK,TRIM4#
sub69741-89102
sub69741-12040
sub69741-89104
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
main69749-12070×4i199608-199907
main69749-32020×2i199409-199907
main69749-50020×8i199502-199608
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
main69759-20040i199409
YELLOW
main69759-20050i199409
BROWN
main69759-20080i199409
ORANGE
main69759-20090i199409
PINK
69759SSNAP, FRONT DOOR INSIDE HANDLE
main69759-20060i199409-199502
GRAY
main69759-20070i199409-199502
GREEN
69759VSILENCER, FRONT DOOR LOCK LINK
main69759-14010×2i199409
9014860022
main90148-60022
9014880027
main90148-80027
9016250020
main90162-50020
9017906070
main90179-06070
9018905003
main90189-05003

21 parts on this diagram · 1 diagram in section
