Toyota TERCEL — FRONT DOOR LOCK & HANDLE

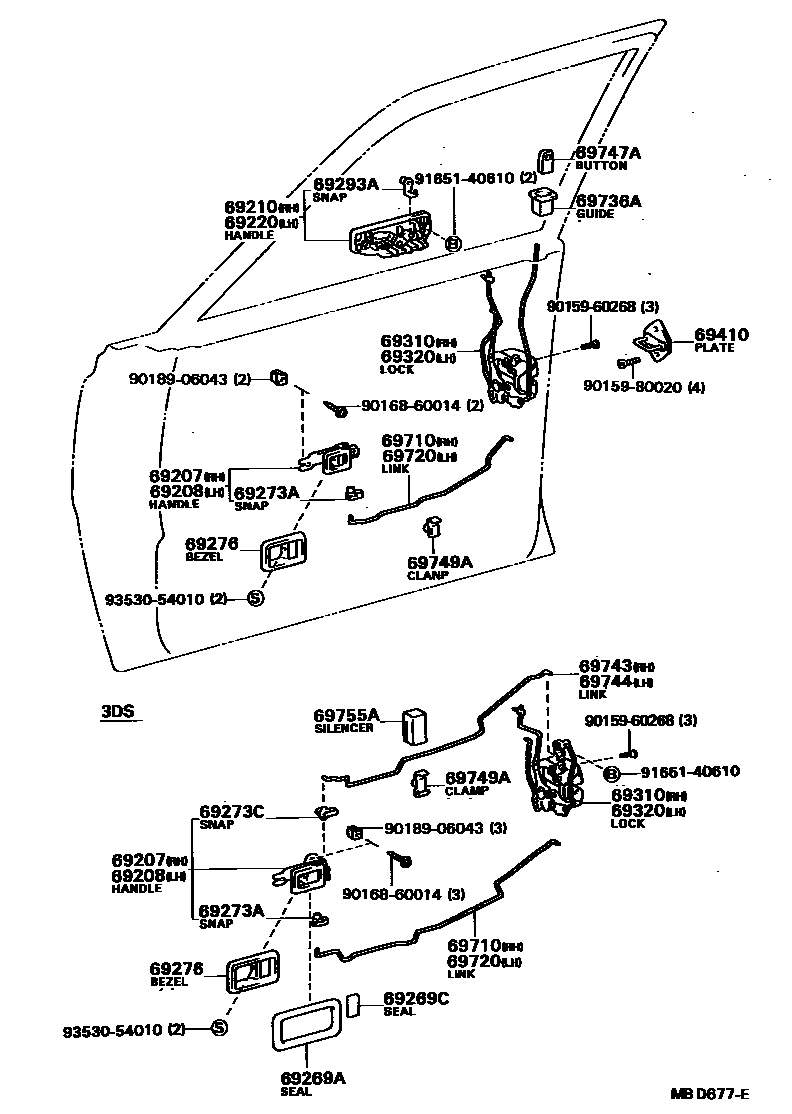

Parts diagram
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-14060-03i198208-198408
GRAY,GRAY
main69205-14060-05i198408-198608
BEIGE,BEIGE
main69205-14060-12i198208-198408
DARK WINE,RED/MAROON
main69205-14060-13i198408-198608
GRAY,GRAY
main69205-14060-16i198208-198408
BROWN,BROWN
main69206-16040-01i198608-198801
BLACK,NEW BLACK
main69206-16040-02i198208-198608
DARK WINE,RED/MAROON
main69206-16040-03i198208-198408
GRAY,GRAY
main69206-16040-05i198408-198605
BEIGE,BEIGE
main69206-16040-06i198208-198408
BROWN,BROWN
main69206-16040-13i198408-198608
GRAY,GRAY
main69206-16040-15i198605-198801
BEIGE,DARK BEIGE
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69205-16040-01i198608-198801
BLACK,NEW BLACK
main69205-16040-02i198208-198608
DARK WINE,RED/MAROON
main69205-16040-03i198208-198408
GRAY,GRAY
main69205-16040-05i198408-198605
BEIGE,BEIGE
main69205-16040-06i198208-198408
BROWN,BROWN
main69205-16040-13i198408-198608
GRAY,GRAY
main69205-16040-15i198605-198801
BEIGE,DARK BEIGE
main69206-14060-03i198208-198408
GRAY,GRAY
main69206-14060-05i198408-198608
BEIGE,BEIGE
main69206-14060-12i198408-198608
DARK WINE,RED/MAROON
main69206-14060-13i198408-198608
GRAY,GRAY
main69206-14060-16i198208-198408
BROWN,BROWN
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-16040i198208-198801
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69220-16040i198208-198801
69269ASEAL, DOOR INSIDE HANDLE NO.1(FOR FRONT DOOR)
main69269-14010×2i198208-198608
69269CSEAL, DOOR INSIDE HANDLE NO.2(FOR FRONT DOOR)
main69289-12010×2i198208-198608
69273ASNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)
main69759-14050i198208-198608
LH
main69759-24070i198208-198608
RH
69273CSNAP, DOOR INSIDE HANDLE LINK
main69759-24030i198208-198608
RH
main69759-24040i198208-198608
LH
69276BEZEL, FRONT DOOR INSIDE HANDLE
main69277-14030-03×2i198208-198408
GRAY,GRAY
main69277-14030-05×2i198408-198608
BEIGE,BEIGE
main69277-14030-12×2i198208-198408
DARK WINE,RED/MAROON
main69277-14030-13×2i198408-198608
GRAY,GRAY
main69277-14030-16×2i198208-198408
BROWN,BROWN
main69277-32020-01×2i198608-198801
BLACK,NEW BLACK
sub69277-89104
main69277-32020-02×2i198208-198608
DARK WINE,RED/MAROON
sub69277-89104
main69277-32020-06×2i198208-198408
BROWN,BROWN
sub69277-89104
main69277-32020-10×2i198605-198801
BEIGE,DARK BEIGE
sub69277-89104
main69277-32020-13×2i198208-198408
GRAY,GRAY
sub69277-89104
main69277-32020-33×2i198408-198608
GRAY,GRAY
sub69277-89104
main69277-32020-65×2i198408-198605
BEIGE,BEIGE
sub69277-89104
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
main69293-16030i198208-198801
LH
main69293-16040i198208-198801
RH
69310LOCK ASSY, FRONT DOOR, RH
main69310-16040i198208-198608
main69310-16090i198208-198708
main69310-16180i198708-198801
69320LOCK ASSY, FRONT DOOR, LH
main69320-16040i198208-198608
main69320-16090i198208-198708
main69320-16180i198708-198801
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-12050×2i198408-198801
MITSUI
main69410-14040×2i198208-198408
MITSUI
main69410-14050×2i198208-198408
AISHIN
sub69410-20070
main69410-87001×2i198408-198801
AISHIN
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
main69711-16030i198208-198608
main69711-16040i198208-198801
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
main69712-16030i198208-198608
main69712-16040i198208-198801
69736AGUIDE, FRONT DOOR LOCK LINK
main69736-12030×2i198408-198801
main69736-22021×2i198208-198408
69743LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH
main69733-16020i198208-198608
69744LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH
main69734-16020i198208-198608
69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)
main69741-32010-01×2i198208-198505
BLACK,BLACK
main69741-90K00-01×2i198505-198801
BLACK,BLACK
sub69741-89102
sub69741-12040
sub69741-89104
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
main69749-12030×2i198208-198608
main69749-30020×2i198208-198801
69755ASILENCER, FRONT DOOR LOCK LINK
main69759-14010×2i198208-198608
9015960268
main90159-60268
9015980020
main90159-80020
9016860014
main90168-60014
9018906043
main90189-06043
9165140610
main91651-40610
9353054010
main93530-54010

27 parts on this diagram · 1 diagram in section
